- Trace & Tone Detector Set - tests for Opens, Shorts, Split Pairs, Miswires, and Reversals. Shows cable faults per TIA568 specifications.

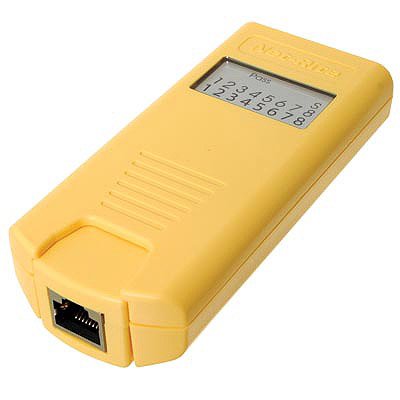

- Easy to use - just plug one end of an ethernet cable to the main unit & the other end of the cable to the remote. No buttons are required

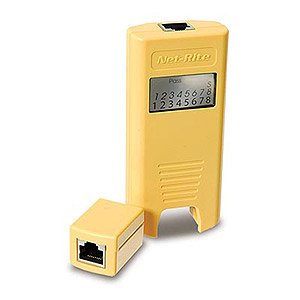

- Removable remote enables testing longer cable runs terminated in different areas. When not in use, the remote stores in the bottom of the main unit.
- Tests cables that are up to 1,000 feet long

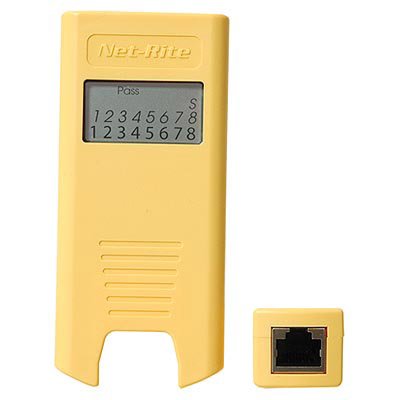

- LCD display shows all test information clearly
- No buttons. Auto-on when sensing the remote or a short. Auto-off when the remote is disconnected to conserve battery life.
- Batteries included
Specifications:
| Size: | 11.3(L) x 5(W) x 2.7(H) cm |
| Weight: | 100 grams (3.5 oz.), with battery and remote |
| Operating temperature: | 0 to 50˚C (32 to 122˚F) |
| Storage temperature: | 10 to 60˚C (14 to 140˚F) |
| Humidity: | 10% to 90%, non-condensing |
| Battery Life (6v alkaline battery, typical): | Standby: 2.5 years Cable Testing: 150 hours |
| Externally applied voltage without damage: | 250 volts peak DC or 175 volts RMS AC for 5 seconds, 100Vdc or 70Vac RMS continuous |
| Cable Types: | Shielded or unshielded CAT5, CAT5E, CAT4, and CAT3 |
| Minimum cable length for testing for split pairs: | 1 meter (3 feet) |
| Power Requirements: | 4 pcs. LR44 button cells (6 volts) |
| Qualified: | CE, RoHS and WEEE |
