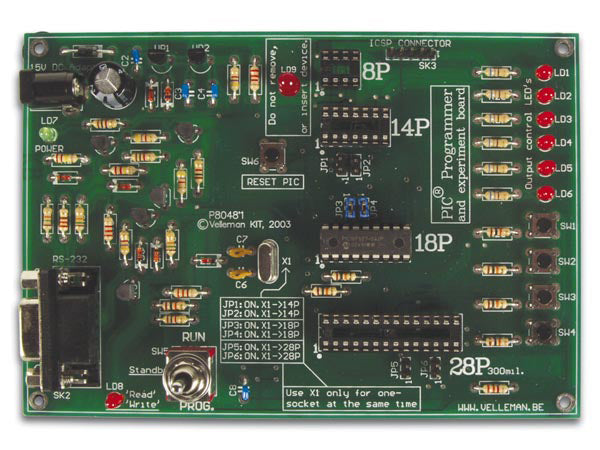

Velleman Pic Programmer & Experiment Board (K8048)

• supports 4 different 300 mil. PICs: 8p 14p 18p and 28p
• test buttons and LED indicators to carry out educational experiments such as the enclosed programming examples
• easy connection to a PC through the serial port
• enclosed is a Flash Microcontroller (PIC16F627) that can be reprogrammed up to 1000 times for experimenting at will
• software to compile and program your source code is available on our website

A Pic Programmer suitable for programming Microchip® FLASH PICTM microcontrollers. PIC Programmer Experiment Board Kit K8048 supports these FLASH PIC microcontrollers: PIC12F629, PIC12F675 PIC16C83, PIC16CR83, PIC16F83, PIC16C84, PIC16CR84,PIC16F84, IC16F84A PIC16F870, PIC16F871, PIC16F872, PIC16F873, PIC16F873A, PIC16F874, PIC16F874A, PIC16F876, PIC16F876A, PIC16F877(A)(ICSP only) PIC16F627, PIC16F627A, PIC16F628, PIC16F628A, PIC16F648A PICF630, PIC16F676 PIC16F818, PIC16F819

Features:
supports 4 different 300 mil. PICs: 8p, 14p, 18p and 28p
test buttons and LED indicators to carry out educational experiments, such as the enclosed programming examples
easy connection to a PC through the serial port
enclosed is a Flash Microcontroller (PIC16F627) that can be reprogrammed up to 1000 times for experimenting at will
software to compile and program your source code is available on our website
minimum system requirements:
IBM Compatible PC, Pentium or better
Windows™ 95/98/ME/NT/2000/XP
CDROM (Software is also available via the Velleman website)
free serial RS232 port

NOTE: Serial cable not included.
IMPORTANT: Not compatible with USB to serial (RS232) converter!

Specifications:
power supply: 12Vdc unregulated or 15Vdc regulated / 300mA
dimensions: 145 x 100mm / 5.75 x 4"
