DIY Logic Probe Soldering Practice Kit - Surface Mount SMD Version

32ERLOGSMD
$13.99
$13.99
Sold out
Shipping calculated at checkout.
  • Tests digital circuits at various points
  • Good soldering techniques for medium dense boards
  • Troubleshoot logic gates, timers, clocks, counters, prescalers, and other digital circuits
  • The logic probe is powered by the circuit under test
  • Size 4" x .75"

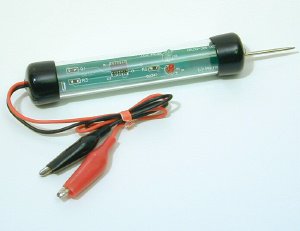

Ideal introduction to SMD (Surface Mounted Device) technology. DIFFICULTY LEVEL: INTERMEDIATE - Some previous knowledge of electronics and good soldering techniques for medium dense boards is recommended. Monitors digital signals. Simple, but essential piece of test equipment. Tests digital circuits at various points and shows whether that point is high, low or constantly changing.

Size 4" x .75"

Assembly with a soldering iron is required (solder and soldering iron are not included).

Product Weight: 0.189375 LB
