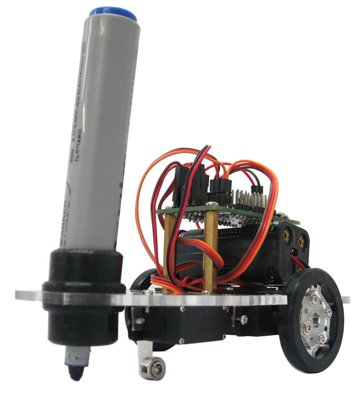

Drawing Robot - Doodle Bot DIY Kit with IR Receiver - Arduino Compatible

• This is a simple drawing robot that accepts commands from a universal TV remote control.
• It comes with all parts including Arduino compatible Magician Controller. Powered by 4 AAA alkaline batteries (not included) and a mini B USB cable (sold separately.)
• Magician Controller library has drivers for H bridge as well as IR receive
• Sample code included
• Great Educational Toy or Gift!!

This is a simple drawing robot that accepts commands from a universal TV remote control. It comes with all parts including Arduino compatible Magician Controller. Powered by 4 AAA alkaline batteries (not included) and a mini B USB cable (sold separately.) Magician Controller library has drivers for H bridge as well as IR receiver. Sample code included.

Kit contains:
Arduino compatible robot controller (ATMEGA8A) with USB interface
Laser cut, transparent Acrylic base plate
2x LBD geared motors with ball bearing
2x Wheel Encoders for precise movement and drawing
1x Miniature servo with ball bearing
Rubber tires and pen gripper

Pen not included; any large pen, crayon or chalk stick can be used to draw.

ASSEMBLY AND SOLDERING IS REQUIRED.

Product Dimensions (L x W x H): x 127 x MM

Product Weight: 5.800625 LB
