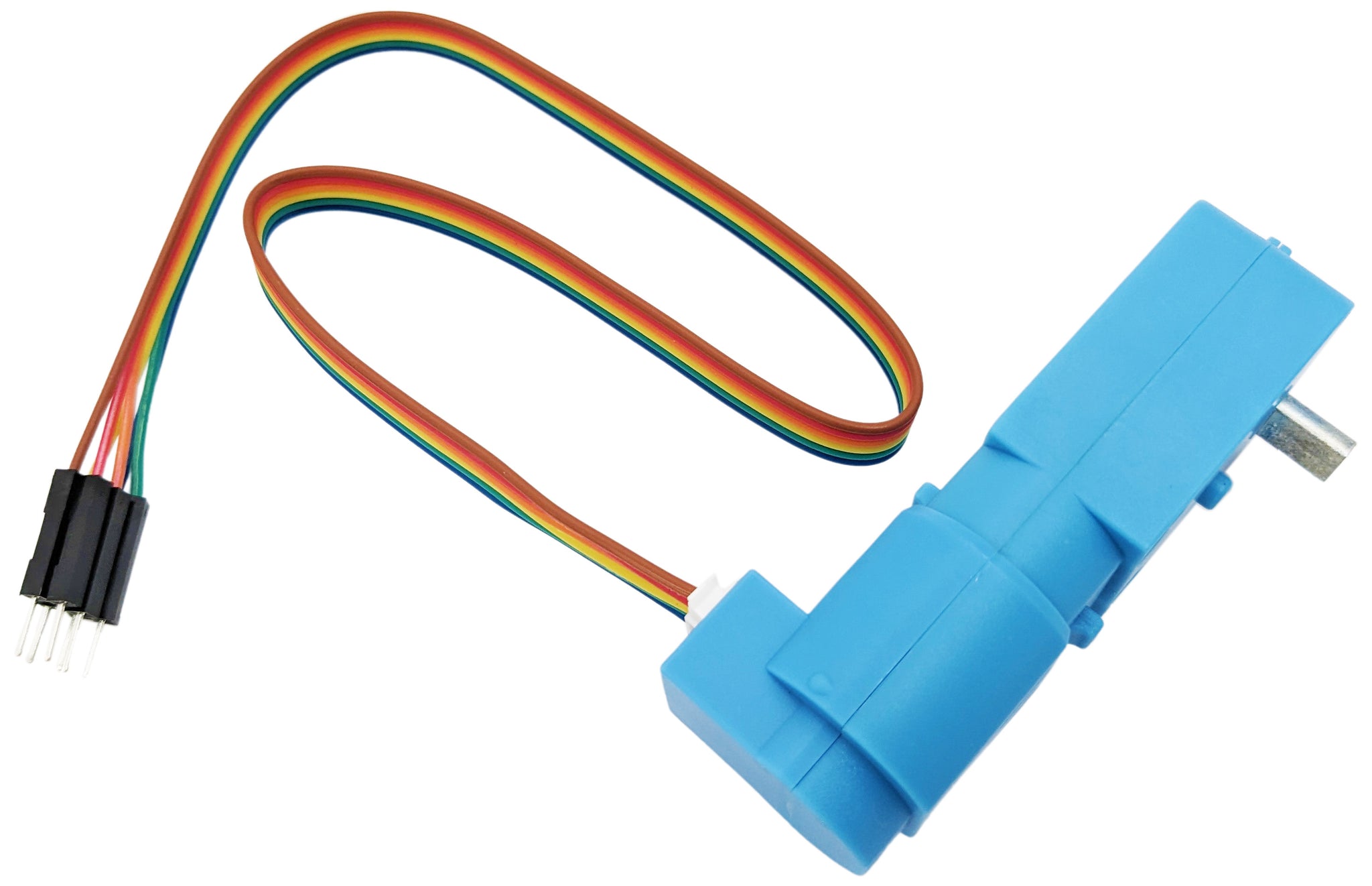

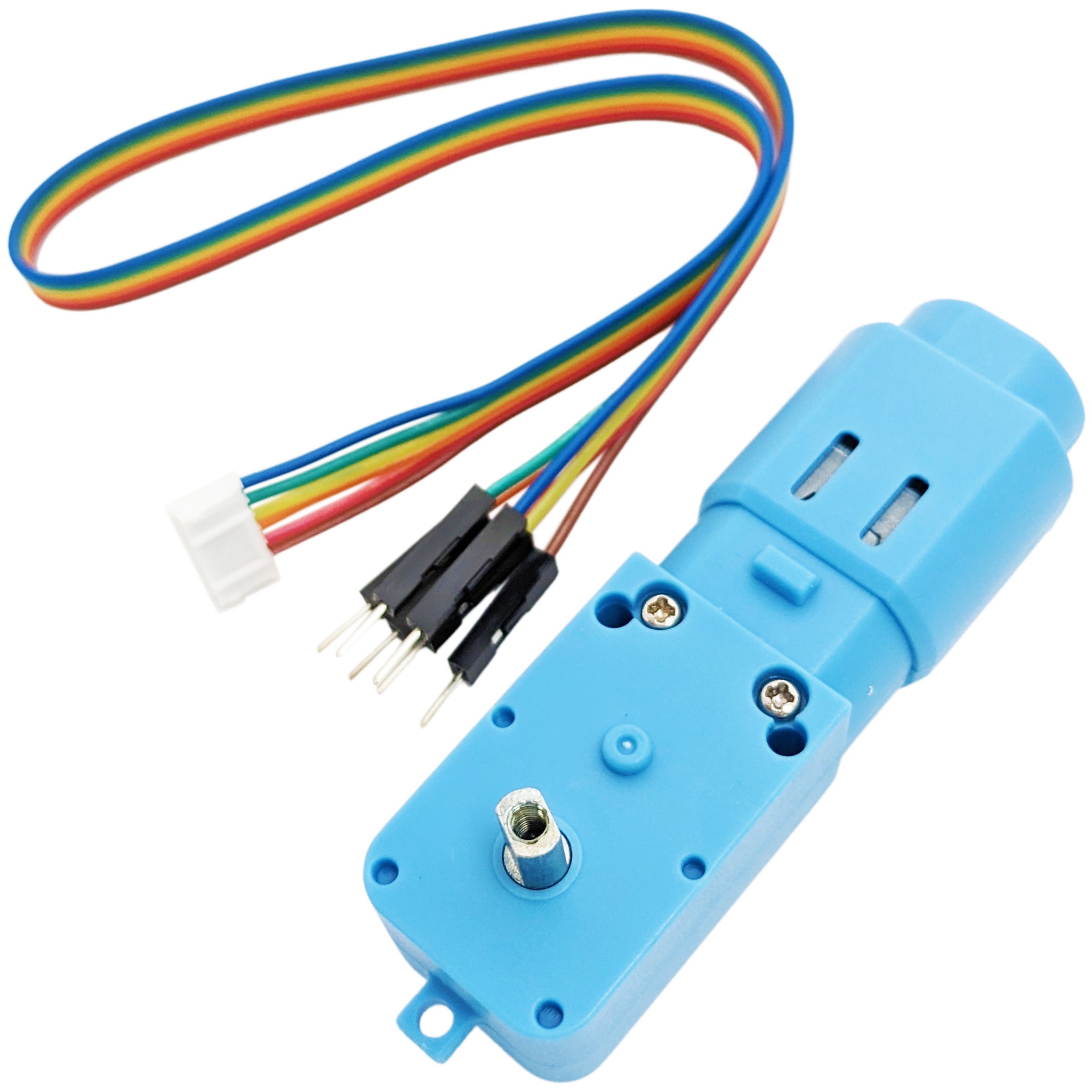

3-9V Motor with Hall Speed Encoder, Metal Gear, 1:48 Gearbox Ratio, 90RPM at 4.5V

• 3-9V Motor with Hall Speed Encoder
• Metal gear
• Gearbox ratio: 1:48
• Speed: 90RPM at 4.5V

Hall Sensor
Senses South of magnetic plate: hall output results in a high level
Senses North of magnetic plate: hall output results in a low level

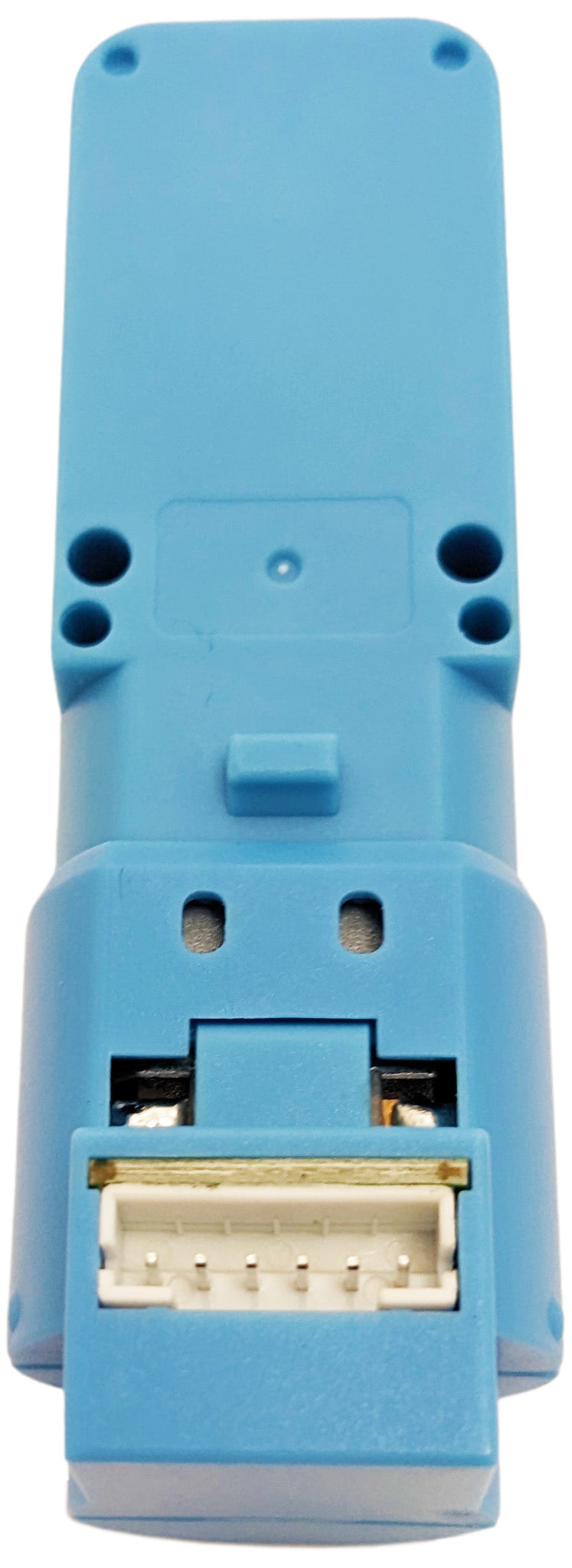

Terminal Pin Layout
G (Blue): hall power negative
H1 (Green): hall H1 output signal, square wave
H2 (Yellow): hall H2 output signal, square wave
V (Orange): hall power positive
M+ (Red): motor positive pole
M- (Brown): motor negative pole
