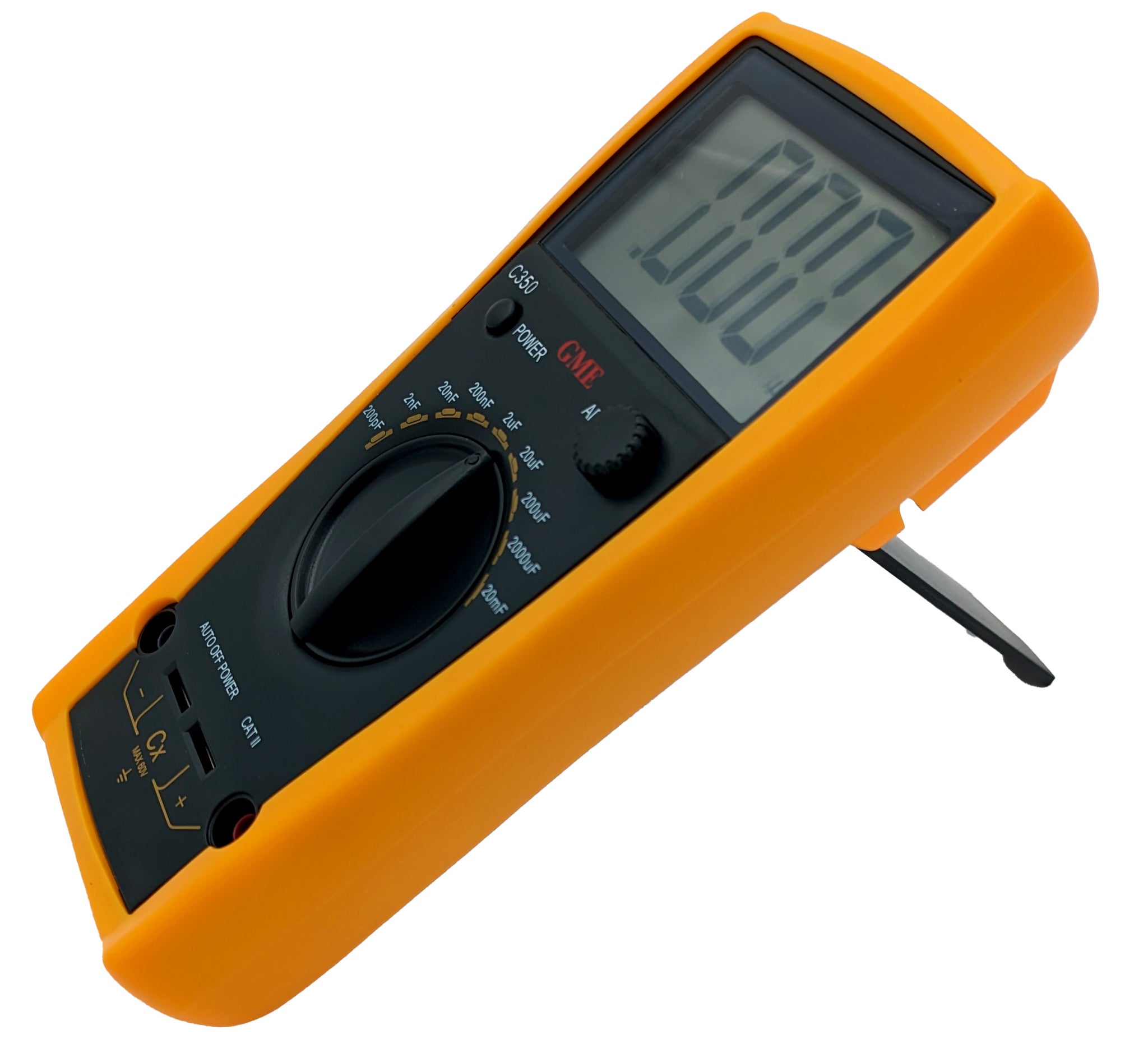

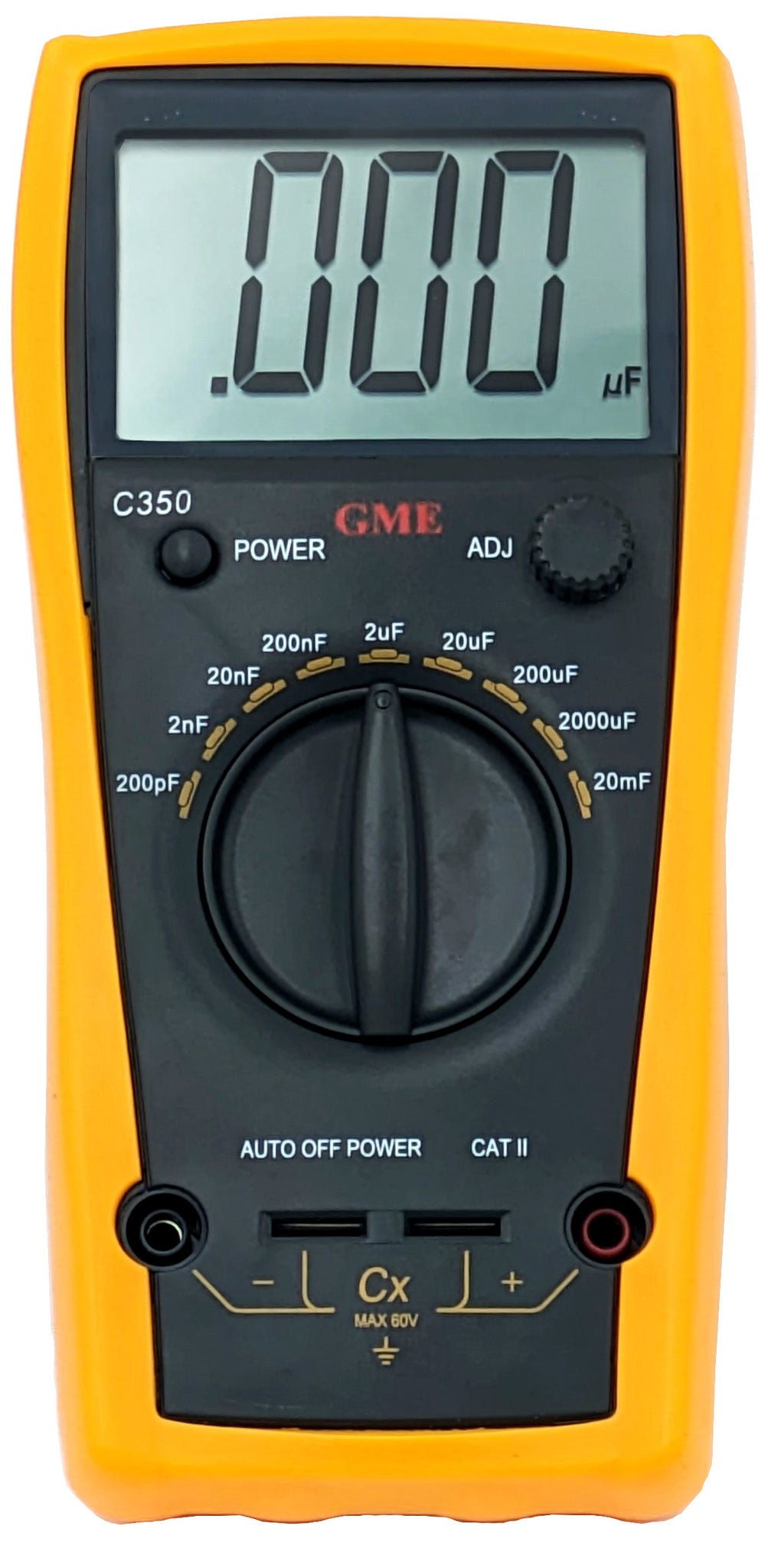

This is a high quality digital capacitance meter. Check the accuracy and status of capacitors up to 20mF, a very handy tool for virtually any technician. It features high accuracy (0.5%) and 9 selectable ranges. A zero adjustment knob is also provided to “zero” test lead capacitance. Includes test probe set, yellow rubber boot, 9V battery, and user manual.
Features:
- 3-1/2 digit LCD with max reading of 1999
- 9 selectable ranges from 200pF to 20mF
- Highly accurate (0.5%)
- External knob for “zero adjustment”
- Overload indication feature
- Safety designed test probe set

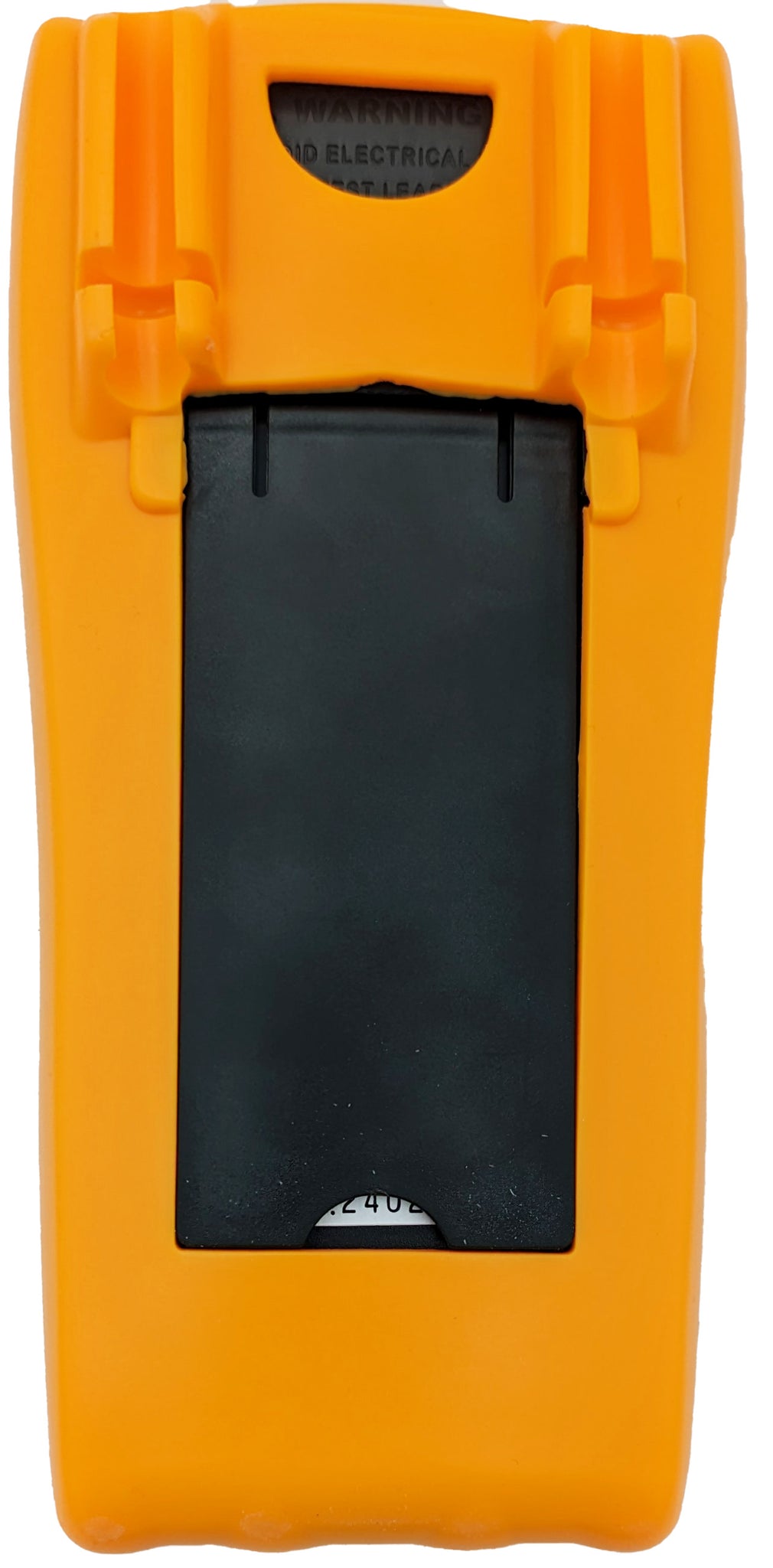

- Yellow rubber boot included
Technical Specifications:
- Display: LCD (Liquid Crystal Display) Max. Indication 1999
- Measurement: C (Capacitance)
- Range: Single 9 position, whole range value (from 0.1pF to 20000uF)
- Zero Adjustment: Manual (range: ±20pF)
- Calibrate Adjustment: Panel Zero adjustment
- Over-input Display: Display shows “1”
- Backlight Function: Automatically turns off after 8 seconds
- Sampling Time: 0~5second
- Operating Temp: 0℃ to 40℃
- Operating Humidity: 80% MAX.R.H.
- Power Supply: Single standard 9V battery
- Battery Life: Approx 200 hours
- Accessories:

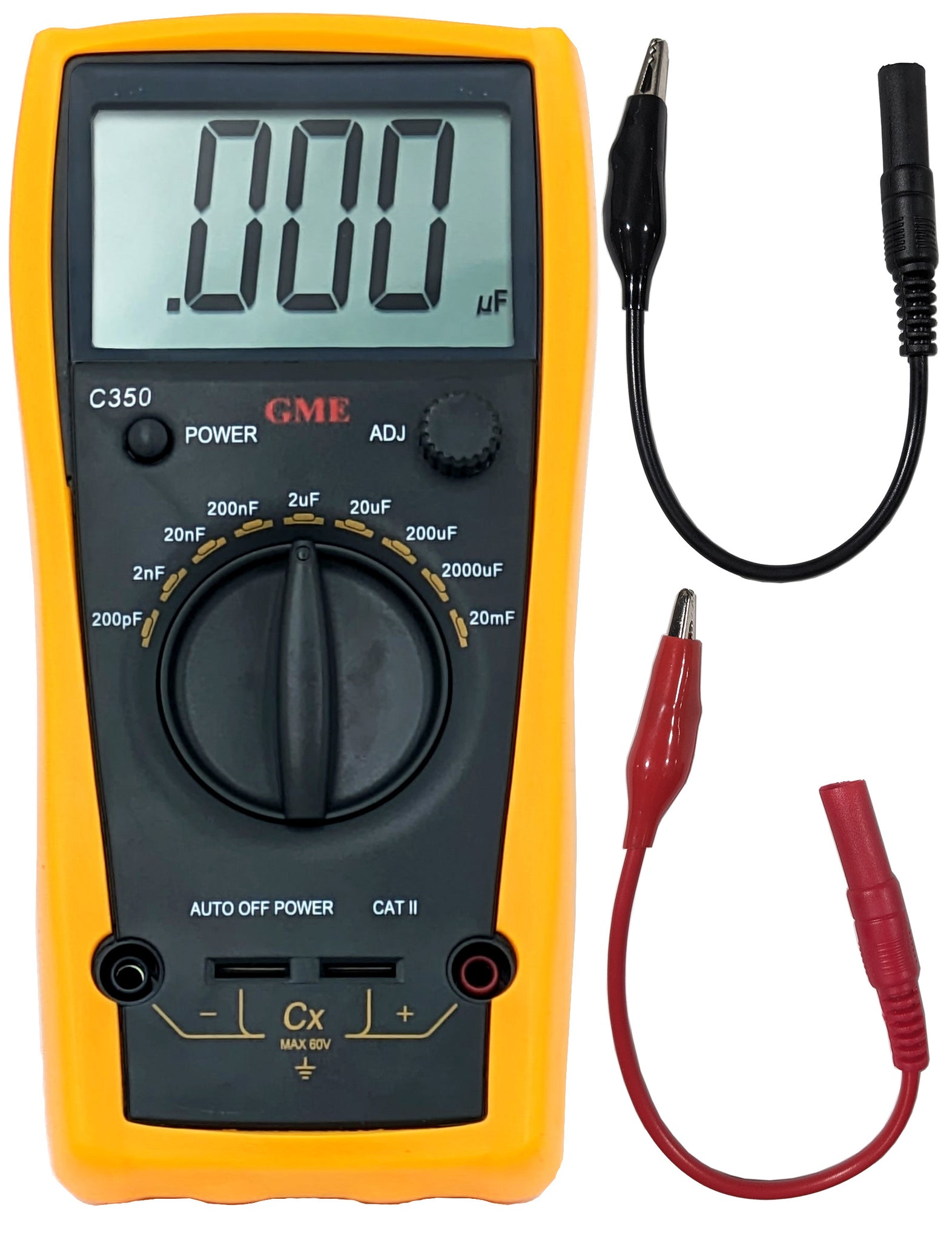

- Test alligator clips (red & black) - 1 pair
- 9V battery
- Instruction manual
