Digital Servo Motor, Voltage Range 4.8V ~ 6.0V, 3 Pole, Dual Ball Bearing (Model HS-5245MG)

• Operating Voltage Range (Volts DC): 4.8V ~ 6.0V, Speed (Second @ 60°): 0.15 ~ 0.12
• Features: High Speed and High Torque in a Mini Package, Durable Metal Gears, Dual Ball Bearings, Standard Programmable Digital Circuit for Greater Holding Power
• Programmable Functions: End Point Adjustments, Direction, Fail Safe, Dead Band, Speed (Slower), Data Save / Load, Program Reset
• Ideal for applications that call for a small, lightweight, fast and high torque servo
• Size: 1.27 x 0.66 x 1.21 inches, Weight: 1.12 ounces

With a custom programmable digital circuit and our strong metal and M/P gear train technology, the HS-5245MG is ideal for applications that call for a small, lightweight, fast and high torque servo.

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.15 ~ 0.12
Maximum Torque Range oz. / in.: 61 ~ 76
Maximum Torque Range kg. / cm.: 4.4 ~ 5.5
Current Draw at Idle: 3 mA
No Load Operating Current Draw: 300 mA
Stall Current Draw: 1,200 mA
Dead Band Width: 4 µs

Physical Specifications

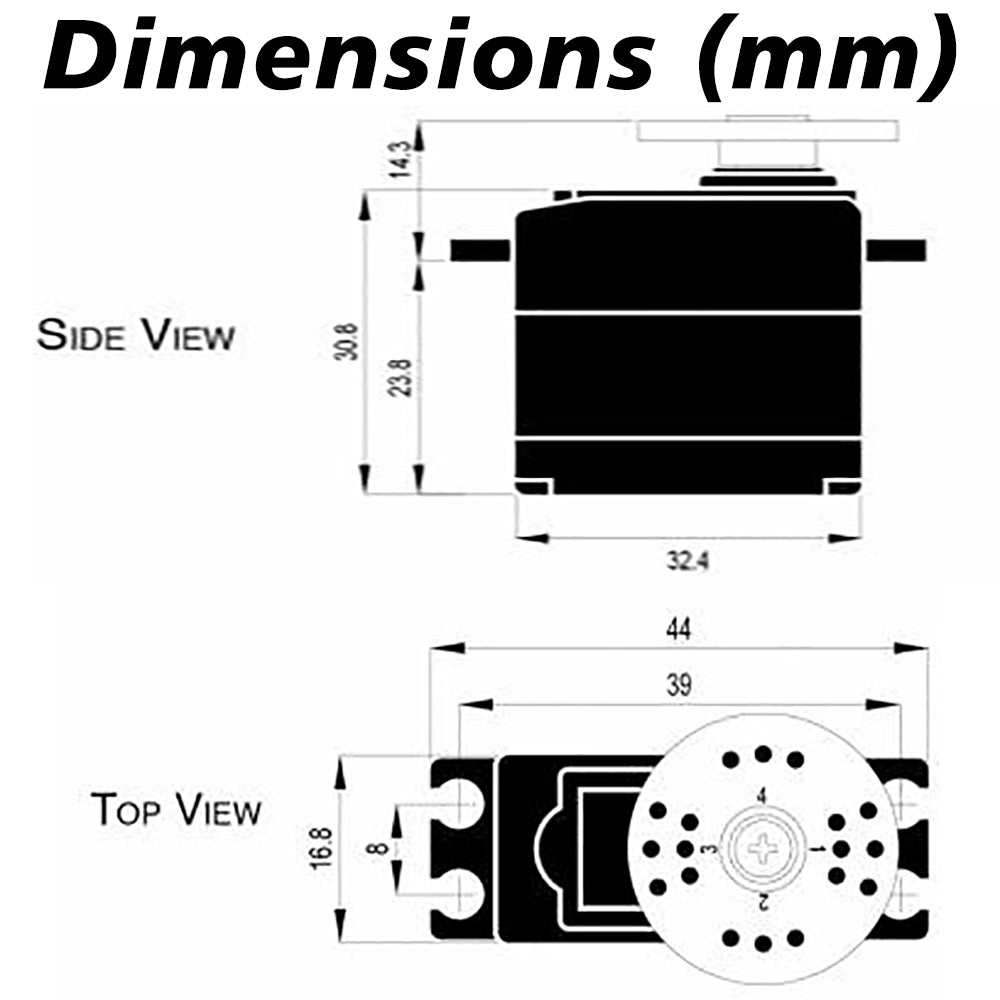

Dimensions: 1.27 x 0.66 x 1.21 Inches (32.4 x 16.8 x 30.8 Metric)
Weight: 1.12 Ounces (32.0 Gram)
Circuit Type: G1 Programmable Digital
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Metal
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Dust / Water Resistance: N/A
Connector Gauge (AWG) / Strand Count: 25 / 40

Radio Control Applications
Parkflyer: N/A
Sport Plane: 50 - 64 oz.
Sailplane: 3 meter
3D Performance: 50 - 64 oz.
Scale: N/A
Electric Helicopter: 500mm
Gas Helicopter: 50 - 59 Class
On Road: 1/12th
Monster Truck: N/A
Buggies: N/A
Truggies: N/A
Short Course / Truck: N/A
Crawlers: 1/18th
Sail Boat: Less than 1 meter
Power Boat: 1/16th
