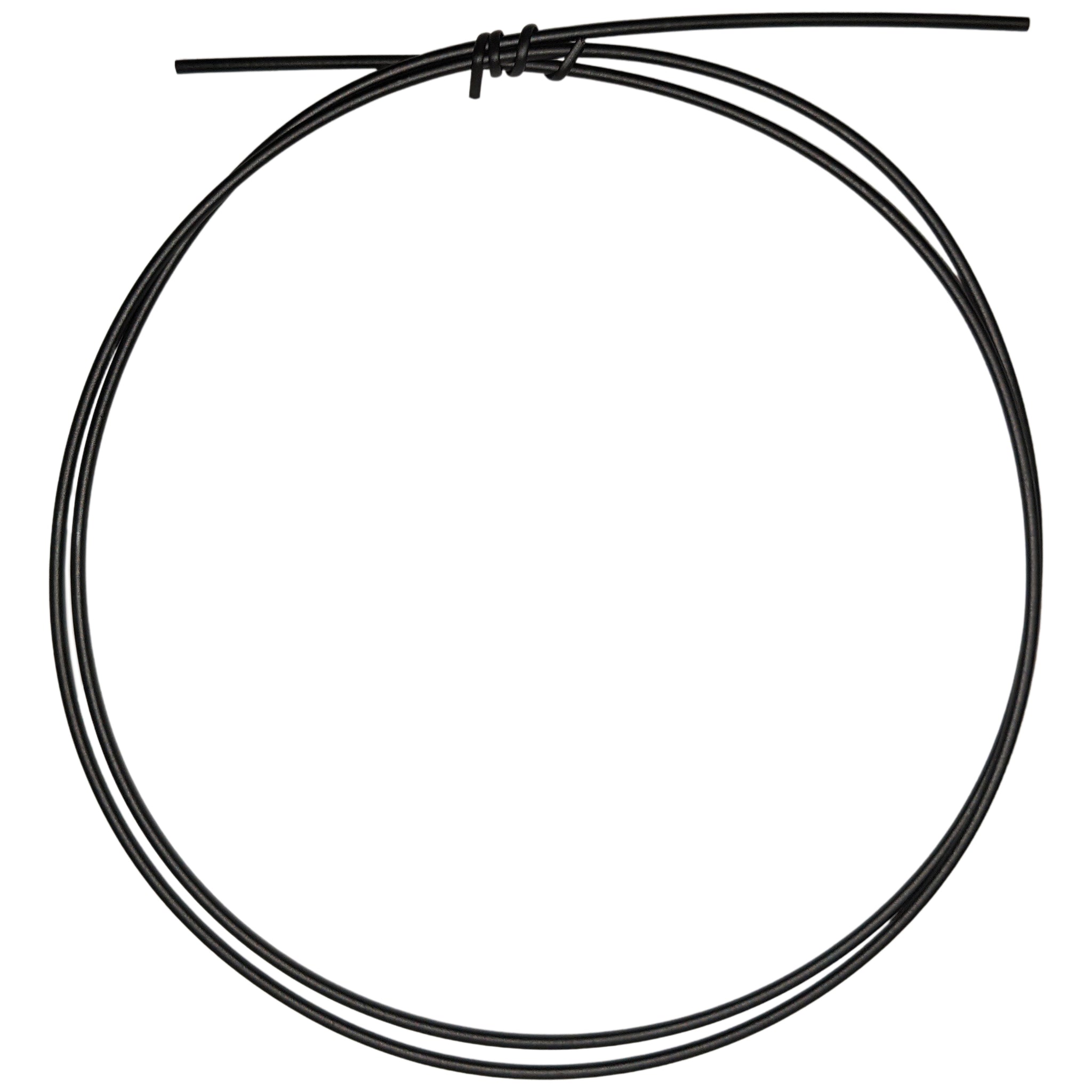

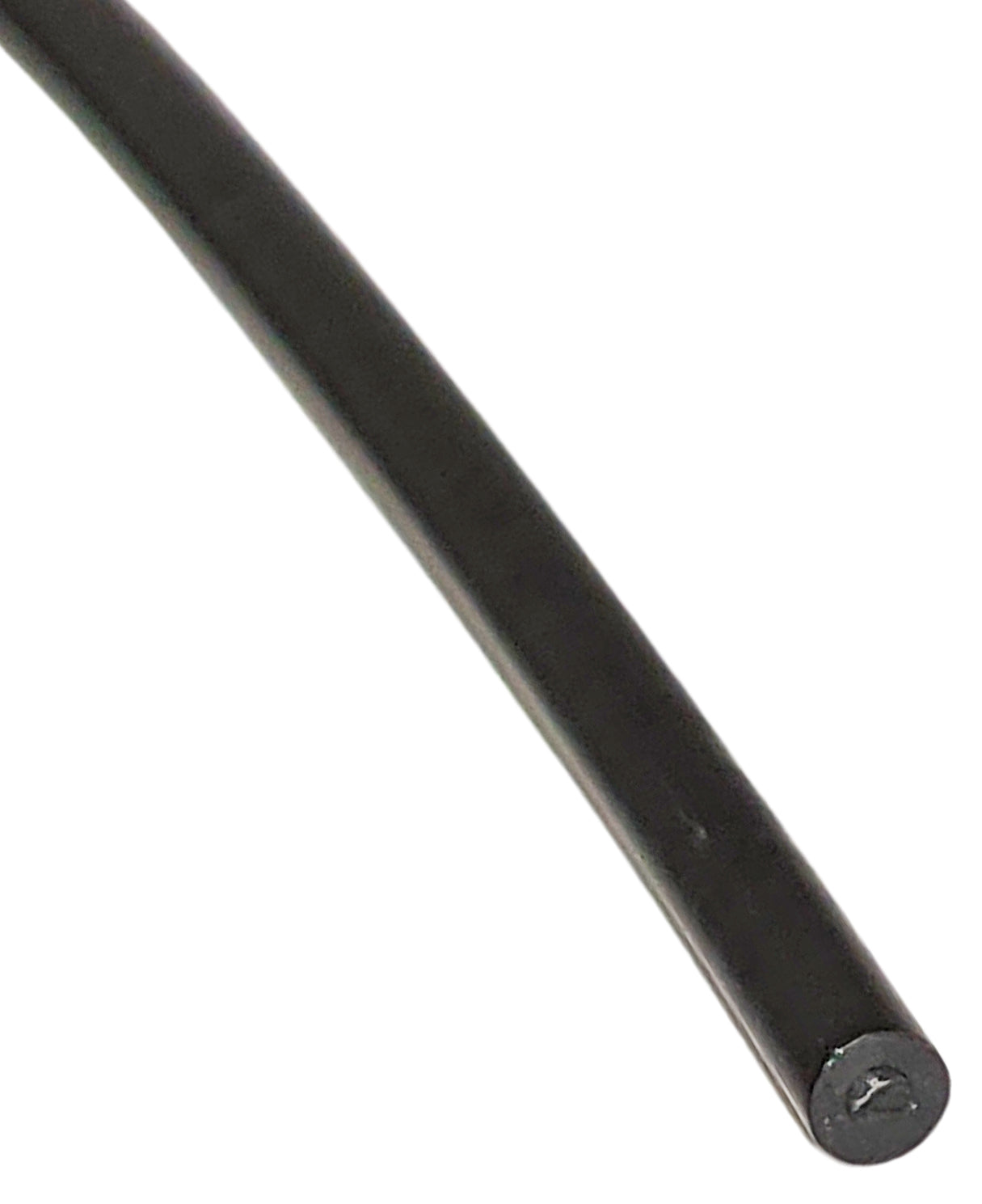

- 1 Meter Simplex Fiber Optic Cable
- Plastic µm Core
- Typical attenuation 0.2db/meter (@650nm)
Specifications:
Core: Polymethl Methacrylate (PMMA)
Material Cladding: Fluorinated Polymer
Jacket: FR-PVC, PE, FR-PE
Fiber Diameter: 1.0mm
Cable Diameter: 2.2mm
Structure: Step Index
Numerical Aperture (N.A.): 0.50
Acceptance Angle: 60 Degree
Attenuation, dB/m @ 650nm: Under 0.20
Allowable Bending Radius: Min. 25mm
Available Temperature Range: –40 ~ +70°C
