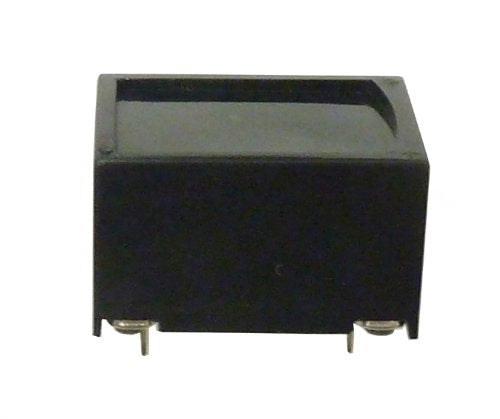

Buzzer 4-8V DC | 85 db | Solid State | PC leads included | Dimensions of Buzzer: 0.9" x 0.6" x 0.6"

4-8V DC Buzzer, 85db, with Legs for Printed Circuitboard

26BZ02
$1.75
$1.75
Sold out
Shipping calculated at checkout.
  • 4-8V DC Buzzer
  • 85 db
  • Solid State
  • Legs are 7.5mm x 15mm Pitch for use on printed circuitboard
  • Tone: Continuous Sound
  • Overall dimensions: 0.92" x 0.66" x 0.54"
  • Rated Voltage: 6 VDC
  • Operating Voltage: 4 ~ 8 VDC
  • Current Consumption: 30mA Max.
  • SPL at 30cm: 80 dB Min.
  • Resonant Frequency: 400±100 Hz
  • Operating Temperature: -20～+70 ℃
  • Storage Temperature: -30～+80 ℃
  • Material: ABS
