200 Pack 3.6K Ohm Carbon Film Resistors, 1/2W (0.5W), ±5% Tolerance, 250V Max Working Voltage
200 Pack 3.6K Ohm Carbon Film Resistors, 1/2W (0.5W), ±5% Tolerance, 250V Max Working Voltage
  • Load image into Gallery viewer, 200 Pack 3.6K Ohm Carbon Film Resistors, 1/2W (0.5W), ±5% Tolerance, 250V Max Working Voltage
  • Load image into Gallery viewer, 200 Pack 3.6K Ohm Carbon Film Resistors, 1/2W (0.5W), ±5% Tolerance, 250V Max Working Voltage

200 Pack 3.6K Ohm Carbon Film Resistors, 1/2W (0.5W), ±5% Tolerance, 250V Max Working Voltage

13.553.6KPK200
Regular price
$6.99
Sale price
$6.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

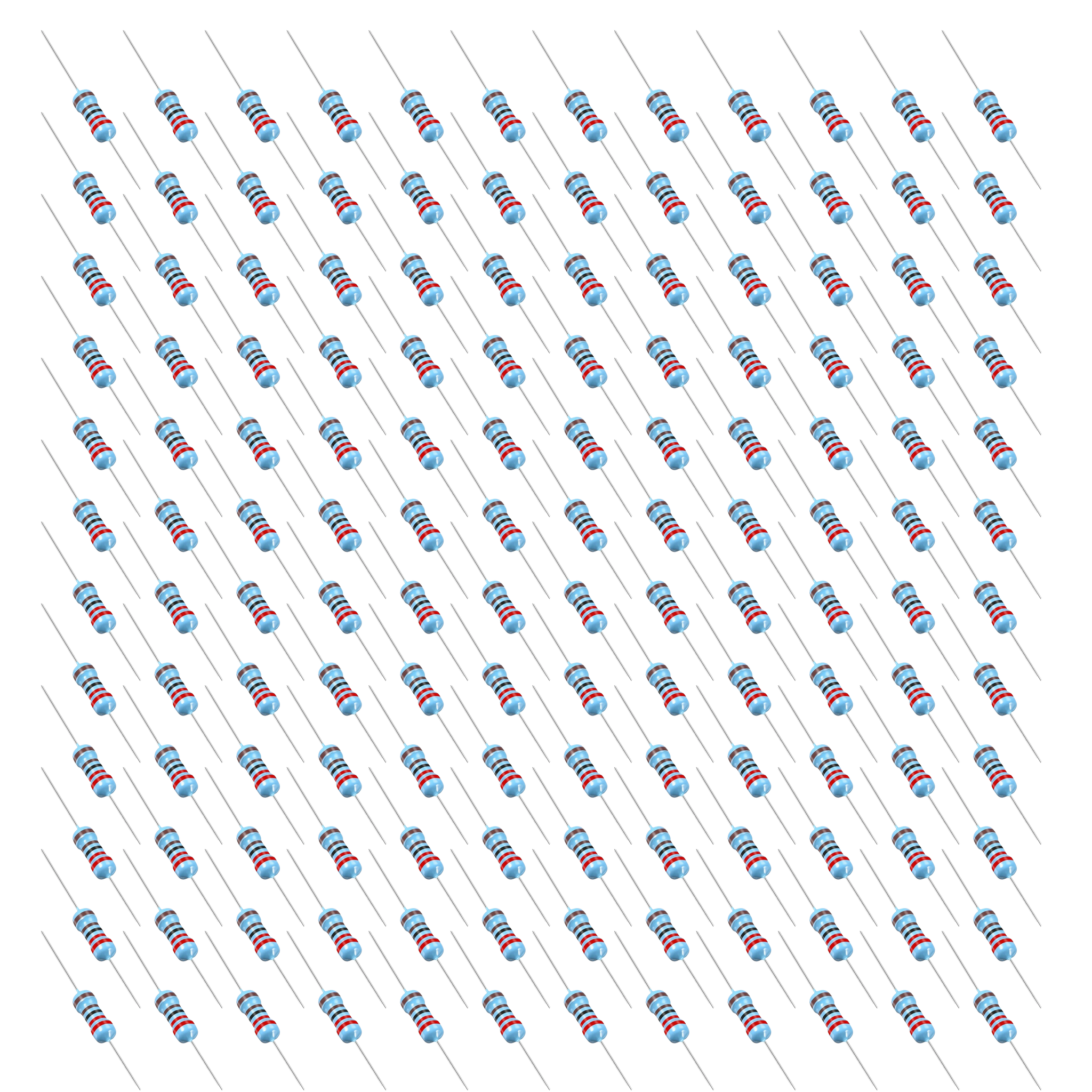

This is a pack of 200 carbon film resistors, each rated 3.6K ohm (3,600 ohms), 1/2 watt, with ±5% tolerance. Each resistor uses a carbon film as its resistive element and is rated for a maximum working voltage of 250V. A bulk quantity like this suits classrooms, production runs and well-stocked parts bins.

Key Features

  • Resistance: 3.6K ohm (3,600 ohms)
  • Power rating: 1/2 W (0.5 W)
  • Tolerance: ±5%
  • Maximum working voltage: 250V
  • Carbon film resistive element
  • 200 resistors per pack

Specifications

Type Carbon film resistor
Resistance 3,600 ohms
Power 0.5 W (1/2 W)
Tolerance ±5%
Max working voltage 250V
Pack quantity 200 pieces
SKU 13.553.6KPK200

What's Included

  • 200 x 3.6K ohm 1/2W carbon film resistors

Ideal For

Labs, schools and builders who use 3.6K ohm resistors often and want a bulk supply.

Frequently Asked Questions

What does ±5% tolerance mean for a 3.6K ohm resistor?
The actual resistance can be up to 5% above or below the marked value, so roughly 3,420 to 3,780 ohms.

What does the 1/2W rating mean?
It is the most power the resistor should dissipate continuously as heat. Keep the power in your circuit (current squared times resistance) below 0.5 W, ideally with some margin.

What color bands identify 3.6K ohm, 5%?
Under the standard 4-band resistor color code, 3.6K ohm ±5% reads orange-blue-red-gold.
