19mm CdS Photocell (LDR), 50K-100K Ohm Light Resistance at 10 Lux, 8M Ohm Dark

08GL7539
Regular price
$0.75
Sale price
$0.75
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

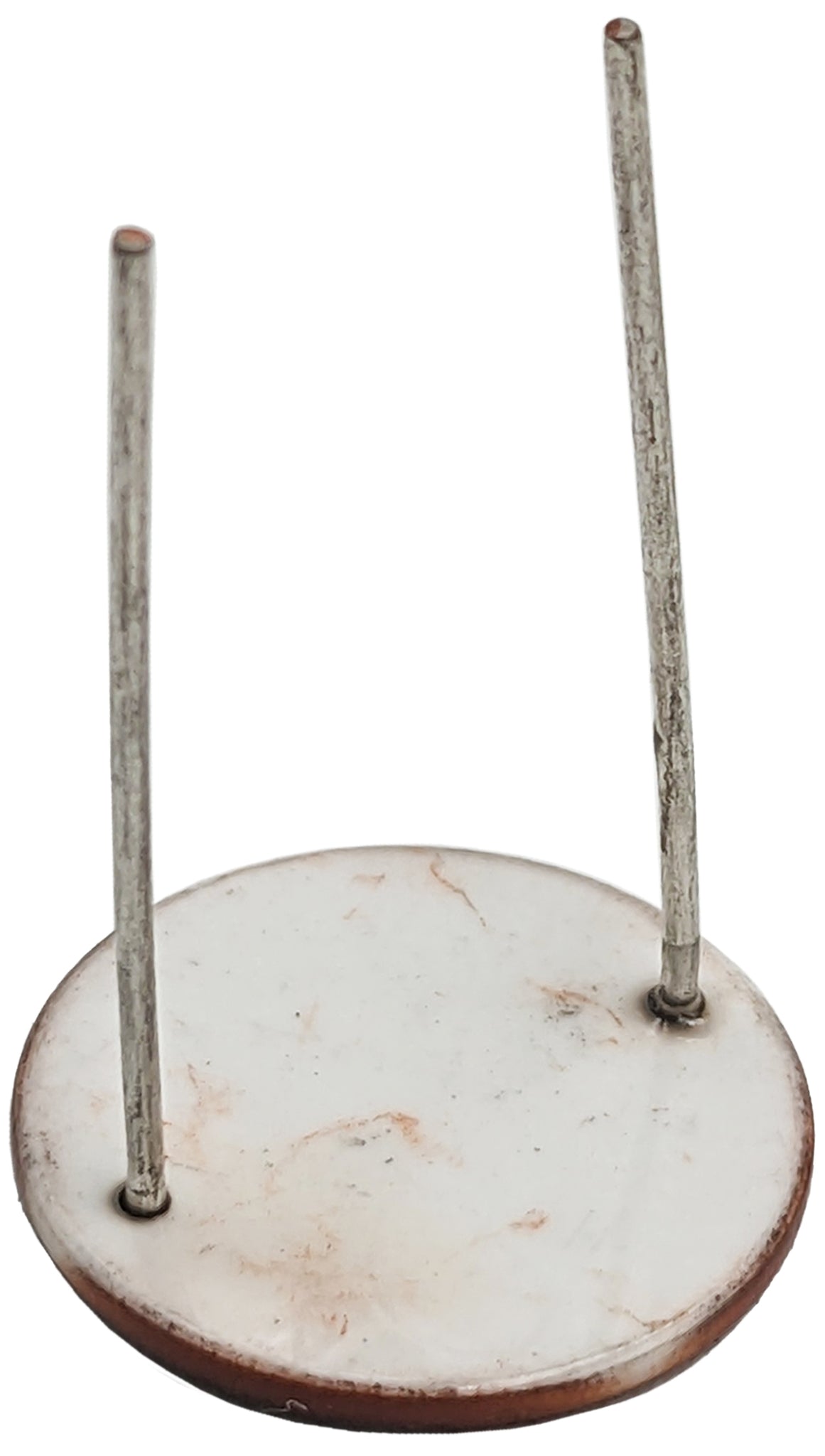

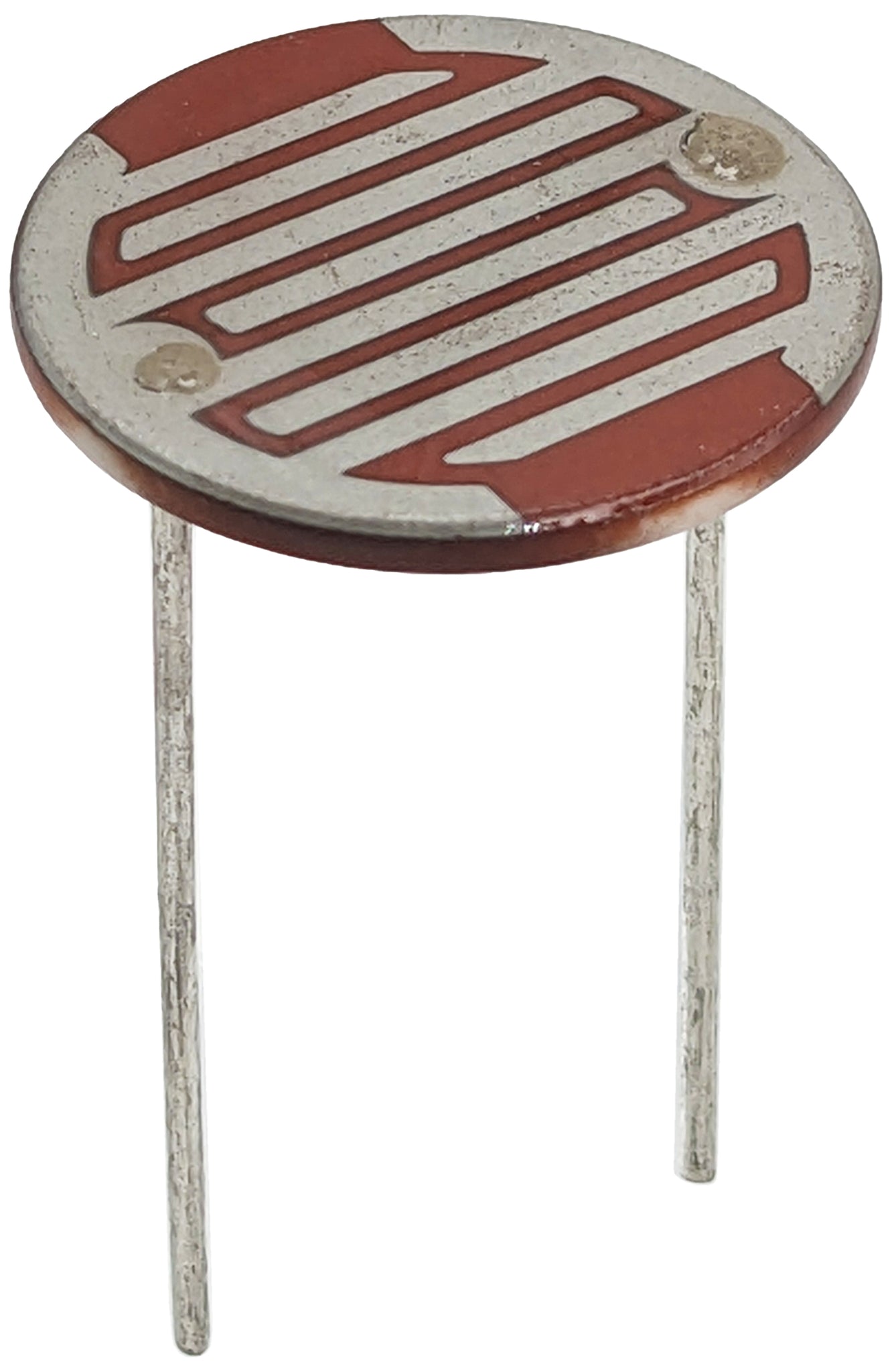

This is a 19mm (19.8mm diameter) cadmium sulfide (CdS) photoconductive cell with 50K-100K ohm resistance at 10 lux and 8M ohm in the dark. The large face and high dark resistance suit low-light detection. It is epoxy encapsulated with 28mm leads and a 550nm spectral peak.

Key Features

  • 19.8mm diameter cell with 28mm leads
  • Light resistance 50K-100K ohm at 10 lux; dark resistance 8M ohm
  • Cadmium sulfide (CdS) construction
  • Epoxy encapsulated with quick response
  • Spectral peak 550nm
  • Operating temperature -30°C to +70°C

Specifications

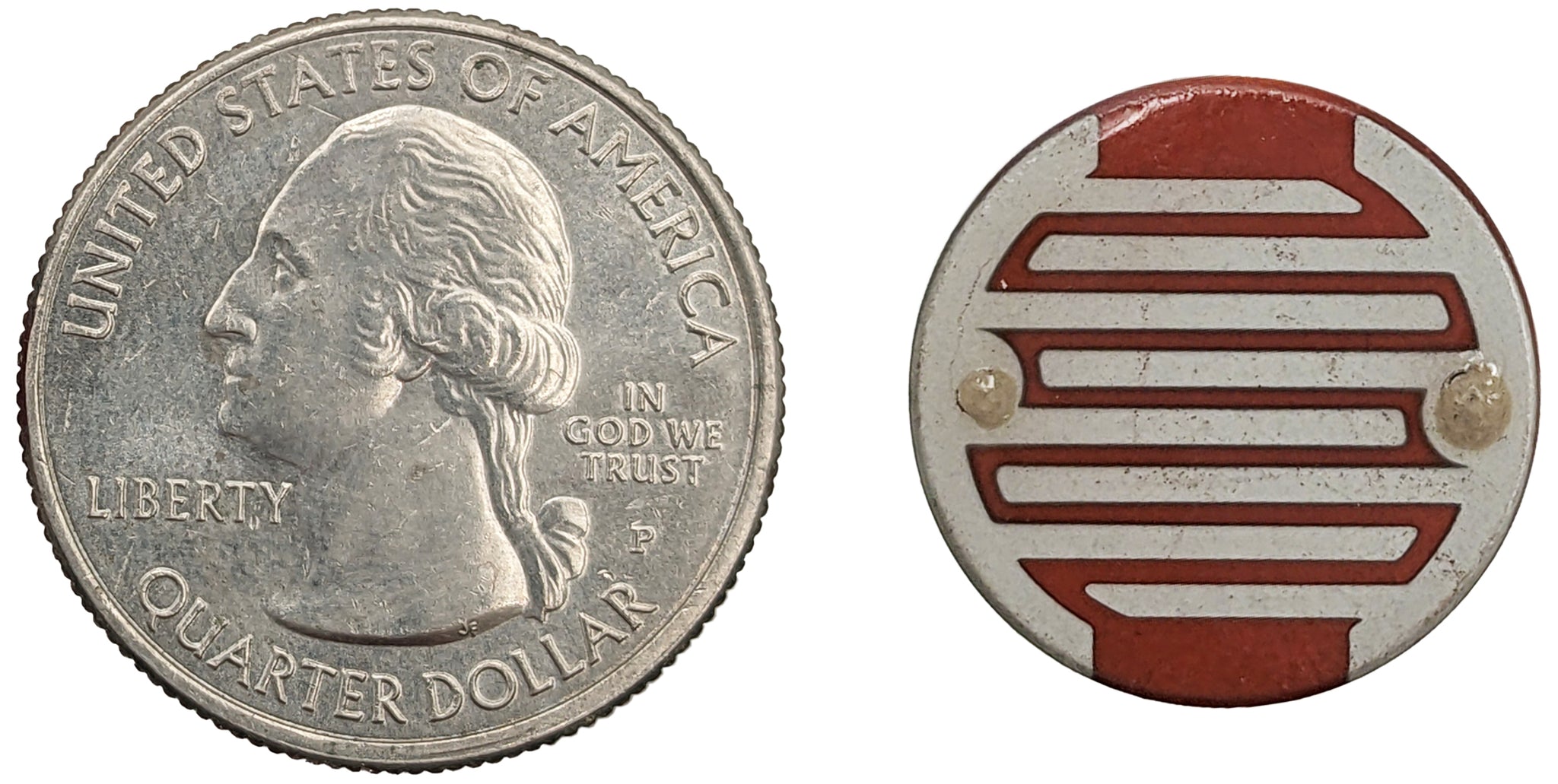

Size 19.8mm diameter
Lead length 28mm
Light resistance (10 lux) 50K-100K ohm
Dark resistance 8M ohm
Pmax (min) 150 (unit not stated)
Spectral peak 550nm
Material Cadmium sulfide (CdS)
Operating temperature -30°C to +70°C
SKU 08GL7539

What's Included

  • 1 × 19mm CdS photocell

Ideal For

Light-detection projects that benefit from a large sensing area and high dark resistance.

Frequently Asked Questions

Why choose a large photocell?
A bigger face collects more light, which helps with even response and is easier to aim in demonstrations.

What fixed resistor pairs well in a divider?
A value near the cell's resistance at the light level you care about, often around 50K-100K ohm for this cell, gives the most voltage swing.

Contains cadmium sulfide; dispose of according to local electronics regulations.
