150 MHz Passive Oscilloscope Probe, 1X / 10X Switchable, Includes Accessory Set

• 150 MHz Passive Oscilloscope Probe with accessory set
• Slide switch in the head selects attenuation of x1 (Bandwidth DC to 6MHz) or x10 (Bandwidth DC to 150MHz)
• Rise time: 2.3nS (x10), 58nS (x1)
• Designed and calibrated for use with instruments having an input impedance of 1 MΩ shunted by 20pF; however, it may be compensated for use with instruments having an input capacitance of 10 to 30pF.
• Includes Probe, Channel Identifier Clips, Sprung Hook, Ground Lead, Insulating Tip, IC Tip, Adjusting Tool, Measuring Tip, Sprung Earth Tip, BNC Adapter, and Probe Tip Cover

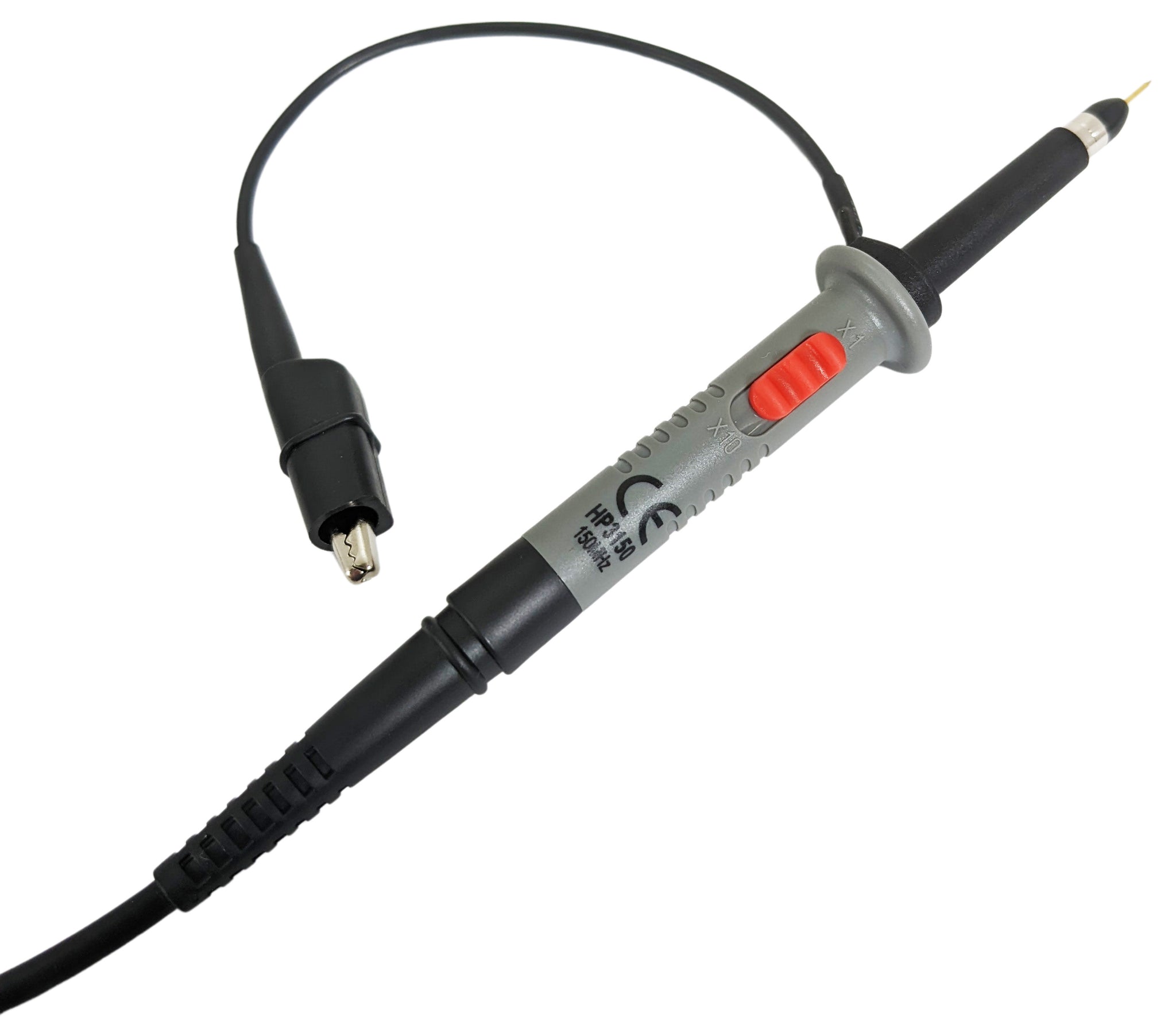

The HP-3150 is a passive high impedance oscilloscope probe designed and calibrated for use with instruments having an input impedance of 1 MΩ shunted by 20pF; however, it may be compensated for use with instruments having an input capacitance of 10 to 30pF. The cable length is about 4 feet. The probe incorporates a two position slide switch in the head which selects attenuation of x1 or x10:

Position X10:
Attenuation Ratio: 10:1
Bandwidth: DC to 150MHz
Rise Time: 2.3nS
Input Resistance: 10MΩ when used with oscilloscopes which have 1MΩ input.
Input Capacitance: Approx. 13 pF
Compensation Range: 10 to 30 pF

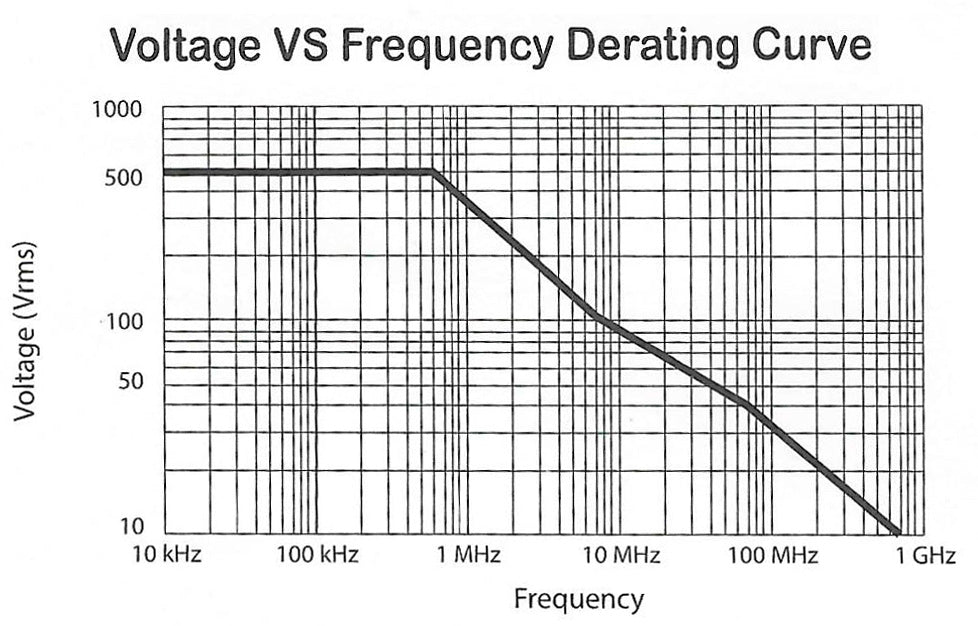

Max. Input Voltage: 500V CAT II (DC + peak AC) derating with frequency

Position X1:
Attenuation Ratio: 1:1
Bandwidth: DC to 6MHz
Rise Time: 58nS
Input Resistance: 1MΩ (oscilloscope input resistance)
Input Capacitance: 56 pF plus oscilloscope capacitance
Max. Input Voltage: 150V CAT II (DC + peak AC)

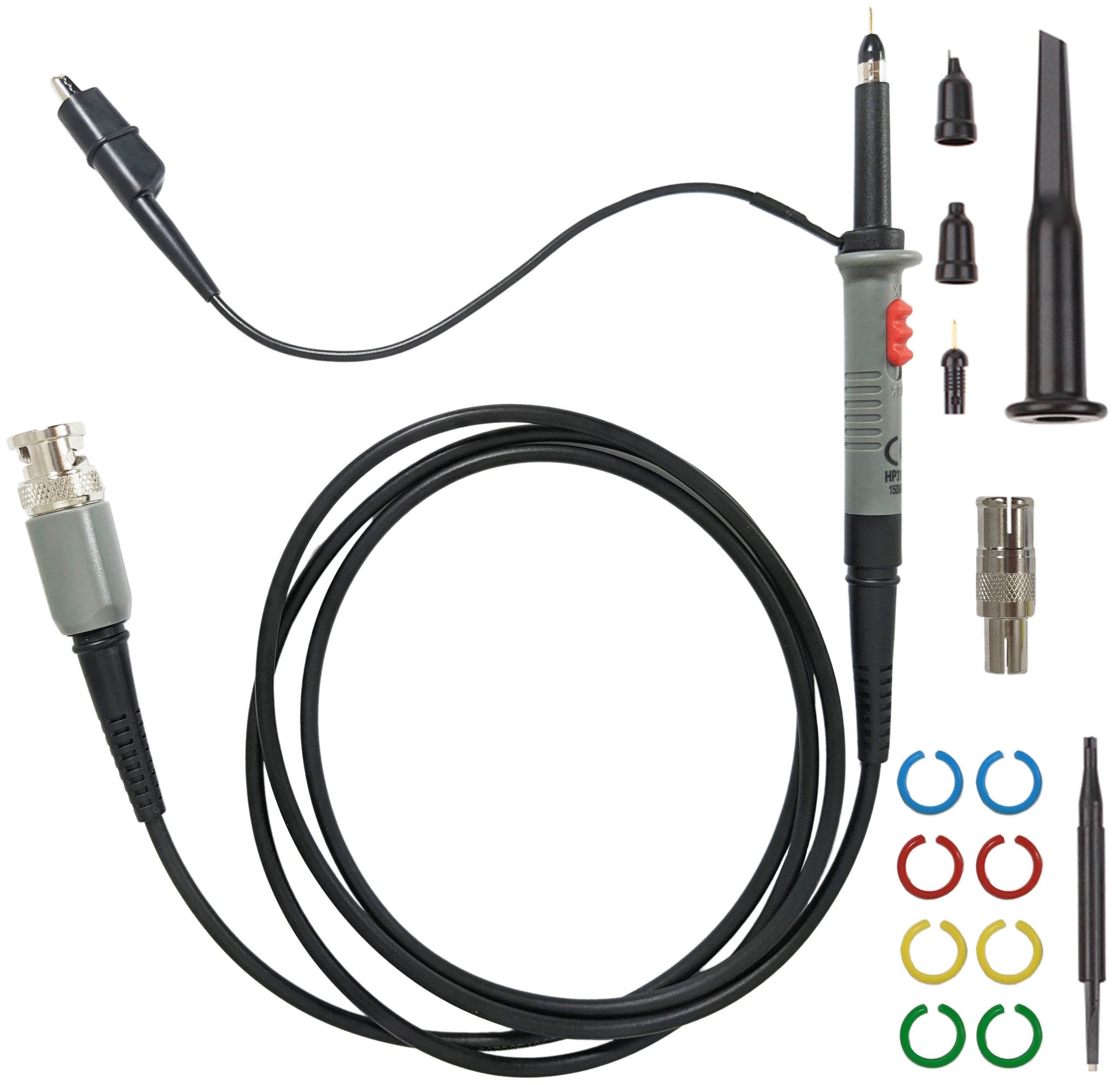

Included Accessories:
Channel Identifier Clips (2 Blue, 2 Red, 2 Green, and 2 Yellow)

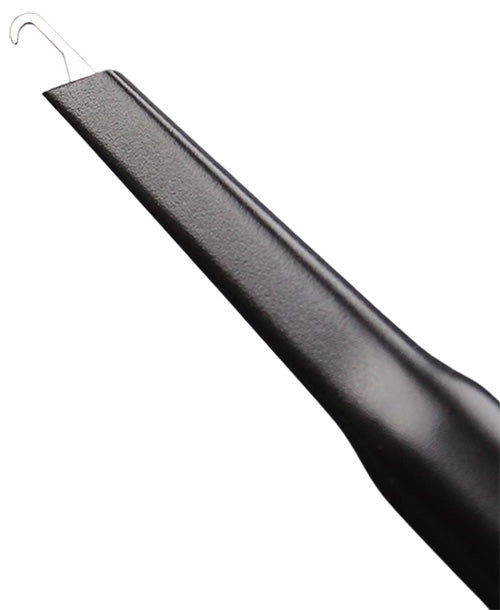

Sprung Hook
Ground Lead
Insulating Tip

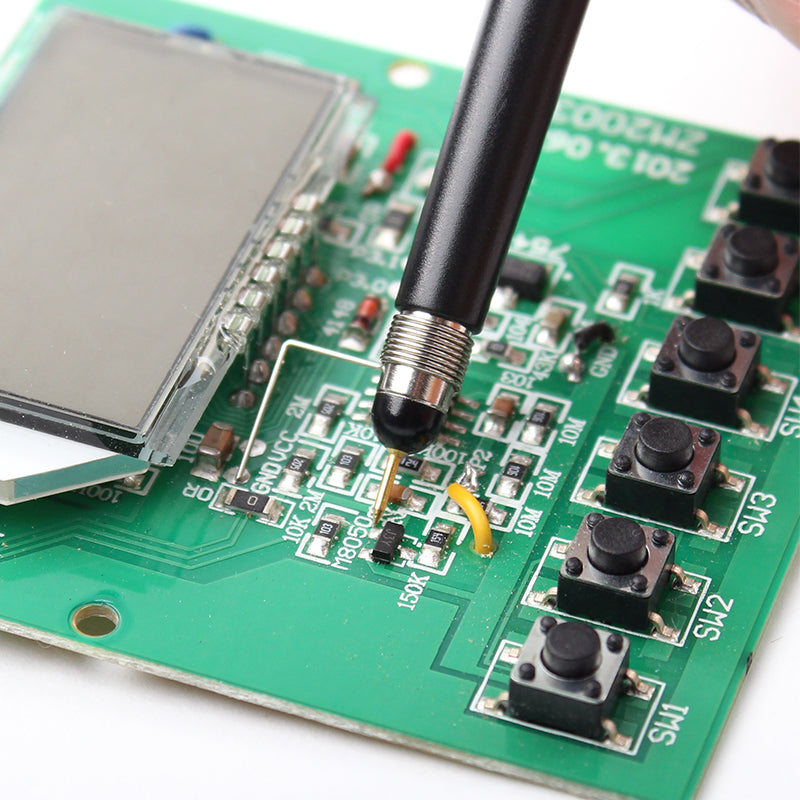

IC Tip
Adjusting Tool
Measuring Tip
Sprung Earth Tip
BNC Adapter
Probe Tip Cover
