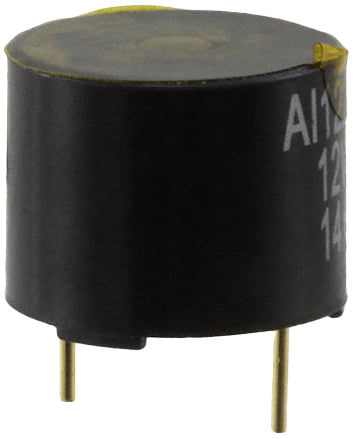

The AI-1223-TWT-12V-3-R is a top-firing, through-hole magnetic audio indicator rated at 12 V DC. It produces a continuous 2.3 kHz tone at a minimum of 85 dBA at 10 cm, operates from 6 to 16 V DC, and draws 30 mA at its rated voltage. It has a PBT housing and gold-plated brass pins.

Key Features

  • Magnetic buzzer with continuous tone
  • Rated 12 V DC; operates 6–16 V DC
  • 85 dBA minimum at 10 cm
  • Resonant frequency 2,300 Hz ±300
  • Top-firing; through-hole PC pins
  • PBT housing, gold-plated brass terminals; 2 g

Specifications

Part number AI-1223-TWT-12V-3-R
Type Magnetic audio indicator, top firing
Rated voltage 12 V DC
Operating range 6–16 V DC
Current 30 mA at rated voltage
Sound pressure 85 dBA min at 10 cm
Resonant frequency 2,300 ±300 Hz
Tone Continuous
Housing PBT
Terminals Gold-plated brass, through hole

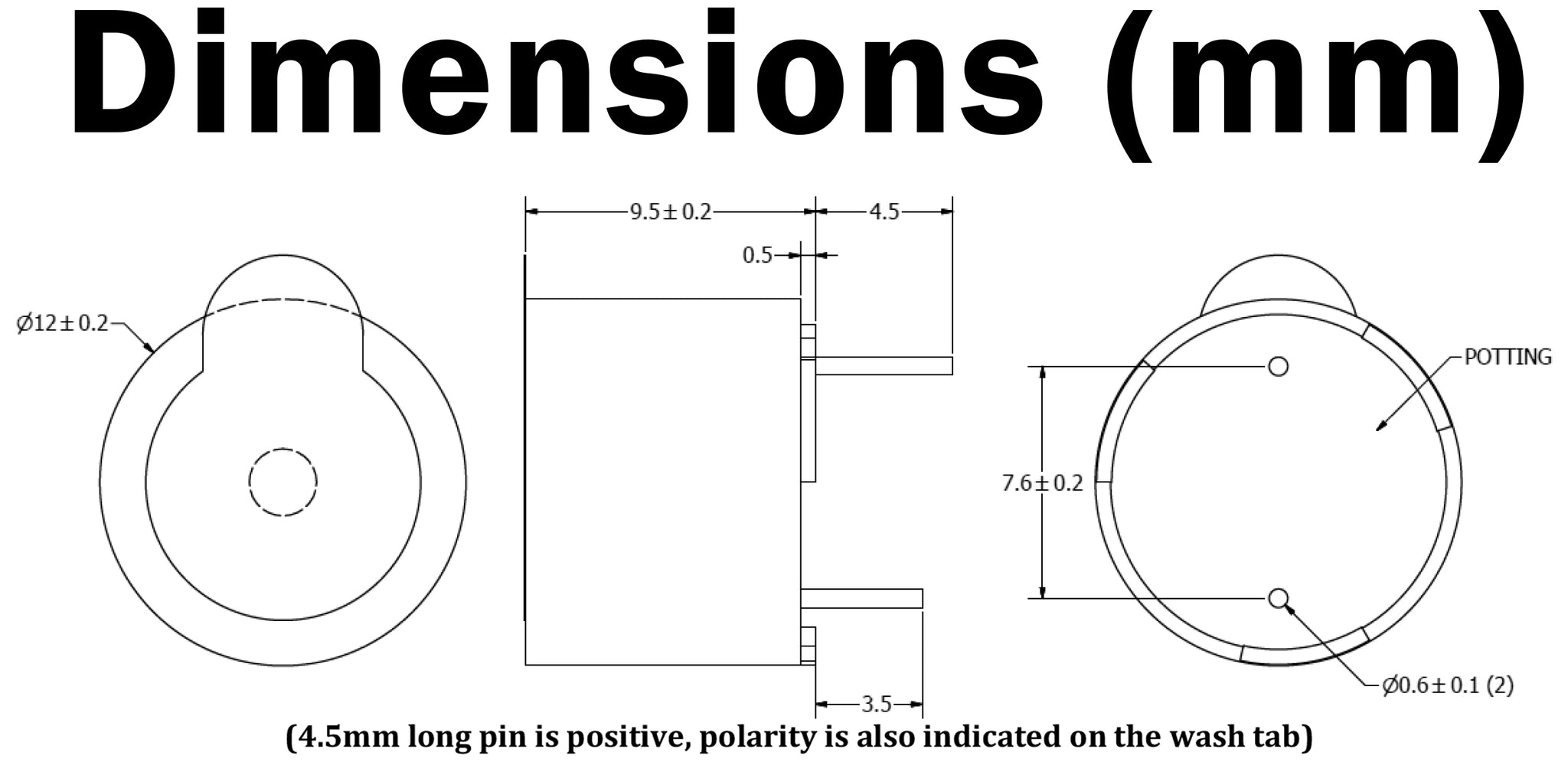

Size (per title) 0.47 in dia x 0.38 in H
Weight 2 g
SKU 26PZ1223-TWT

What's Included

  • 1 x AI-1223-TWT-12V-3-R magnetic buzzer

Ideal For

12 V PCB designs needing a lower-pitched alert than typical piezo beepers.

Frequently Asked Questions

How is a magnetic buzzer different from a piezo buzzer?
A magnetic buzzer uses a coil and metal diaphragm. It typically draws more current than a piezo type and suits lower tones like this 2.3 kHz part.

Can it run on 9 V?
Yes, 9 V is within its 6–16 V operating range.
