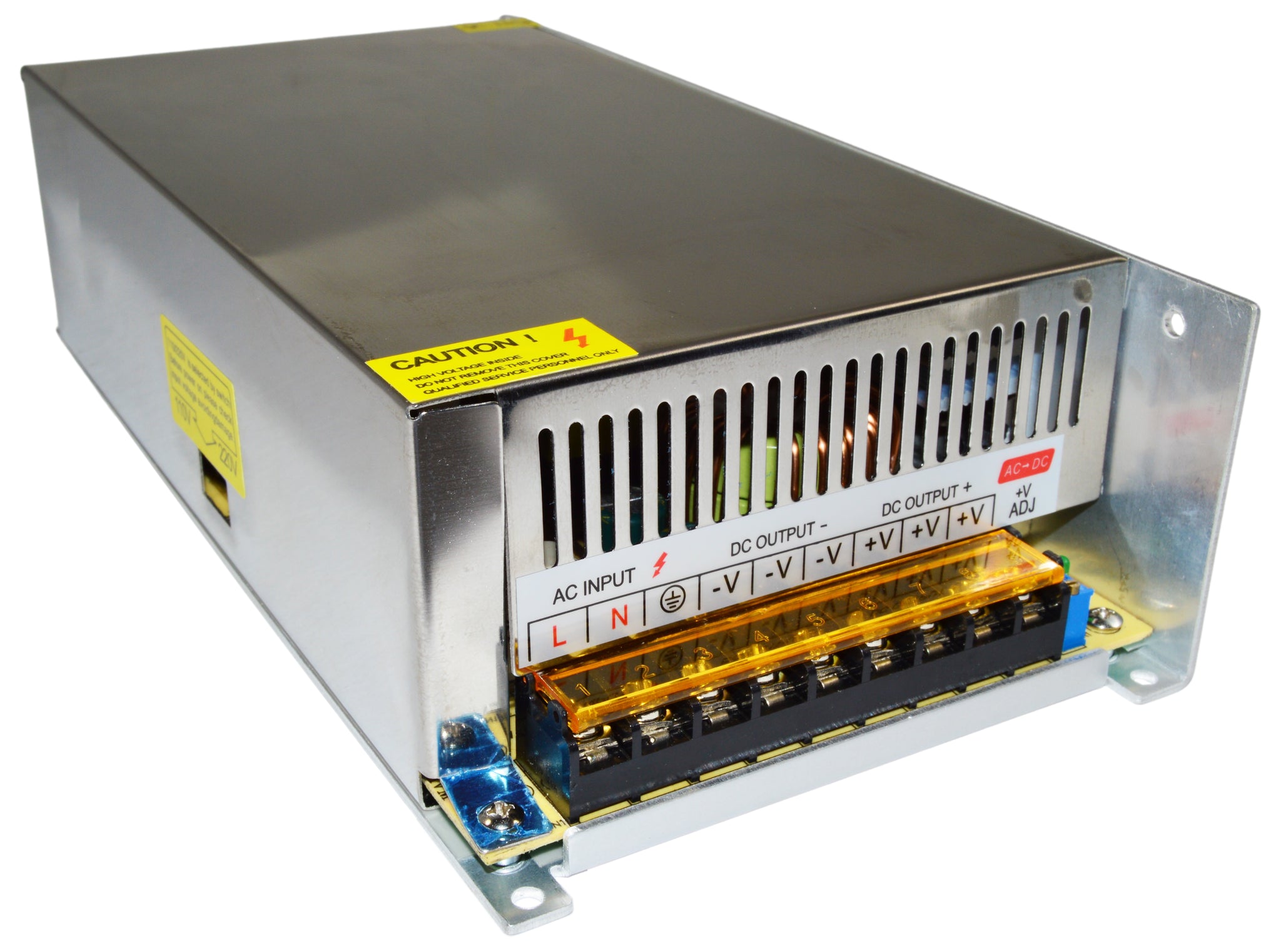

This is a 12V DC, 40A, 500W switching power supply (model 500-12) for LED lighting, CCTV, radio and computer projects. It accepts 100–120V AC 60Hz or 200–265V AC 50Hz, selected by a side switch. A thick metal housing with a rear cooling fan and a protective terminal cover round it out; it measures 9.5 x 4.85 x 2.65 inches and weighs 2.65 lb.
Key Features
- Output: 12V DC at 40A, 500W rated
- Input: 100–120V AC 60Hz or 200–265V AC 50Hz, side switch
- Built-in rear cooling fan
- Thick metal housing with protective terminal cover
- 9.5 x 4.85 x 2.65 in, 2.65 lb
Specifications

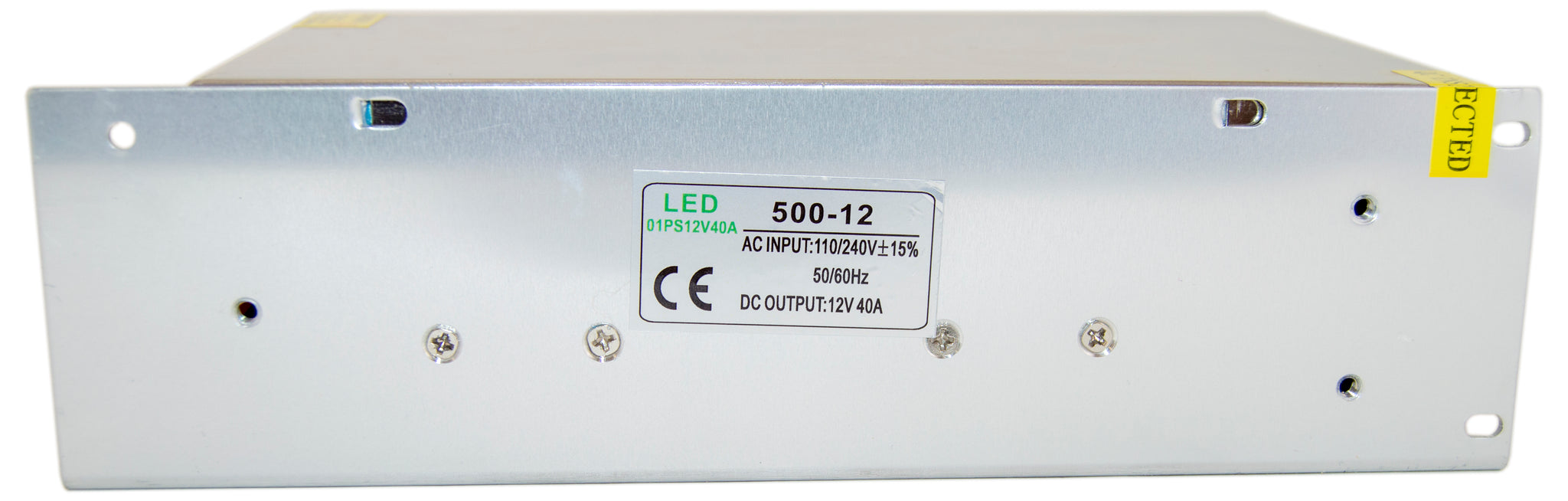

| Model | 500-12 |
|---|---|
| Output | 12V DC, 40A |
| Rated power | 500W |
| Input | 100–120V AC 60Hz / 200–265V AC 50Hz |
| Cooling | Built-in fan |
| Dimensions | 9.5 x 4.85 x 2.65 in |
| Weight | 2.65 lb |
| SKU | 01PS12V40A |
What's Included
- 1 x 12V 40A switching power supply
Ideal For
Large 12V LED installations, radio equipment or other loads up to 40A.
Frequently Asked Questions

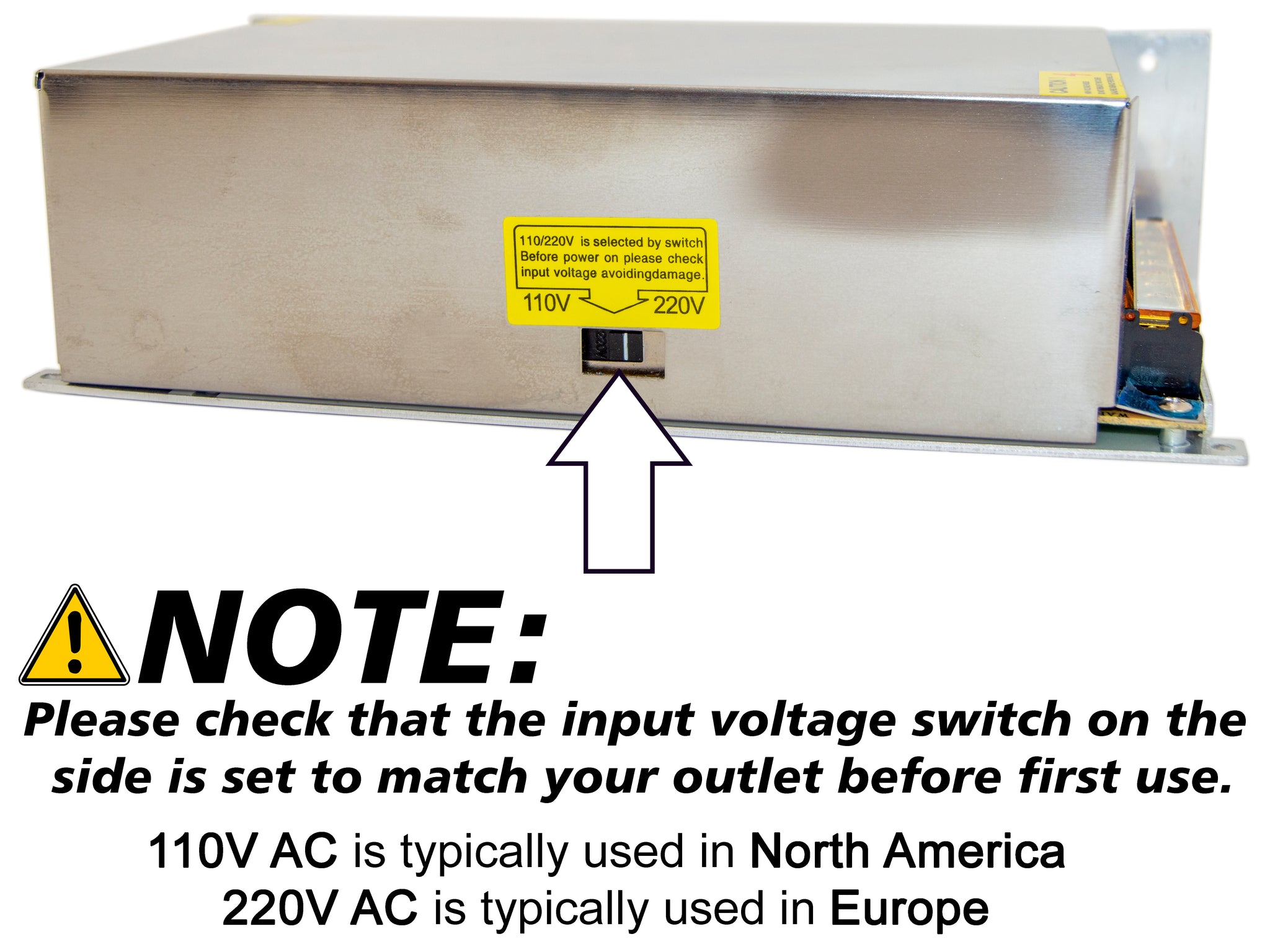

How do I set it for my mains voltage?
Use the switch on the side: 110V for North America, 220V for Europe. Set it before powering on.

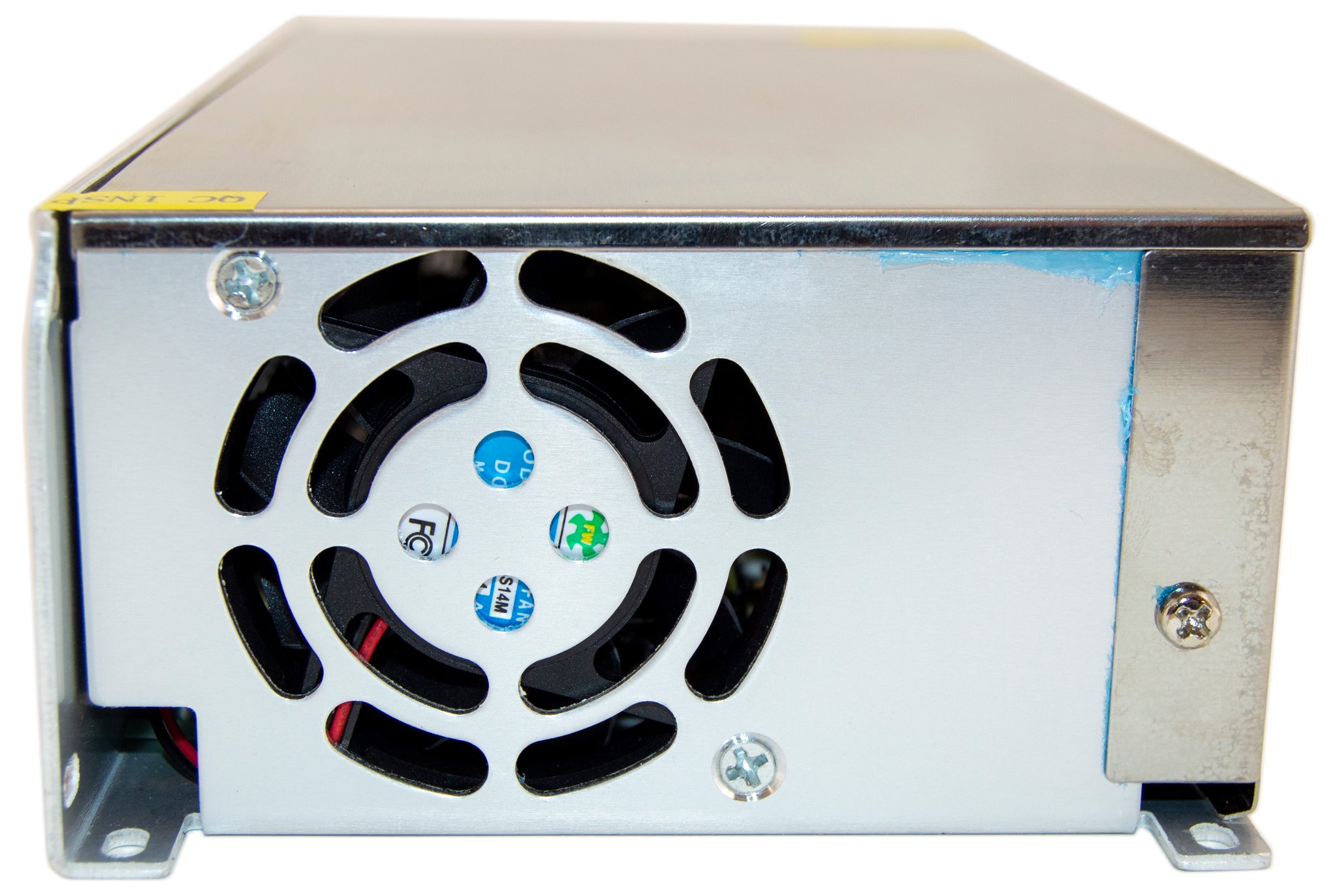

Is it cooled by a fan?
Yes, it has a built-in fan in the back.
Input voltage (110V/220V) must be set with the side switch before operation.

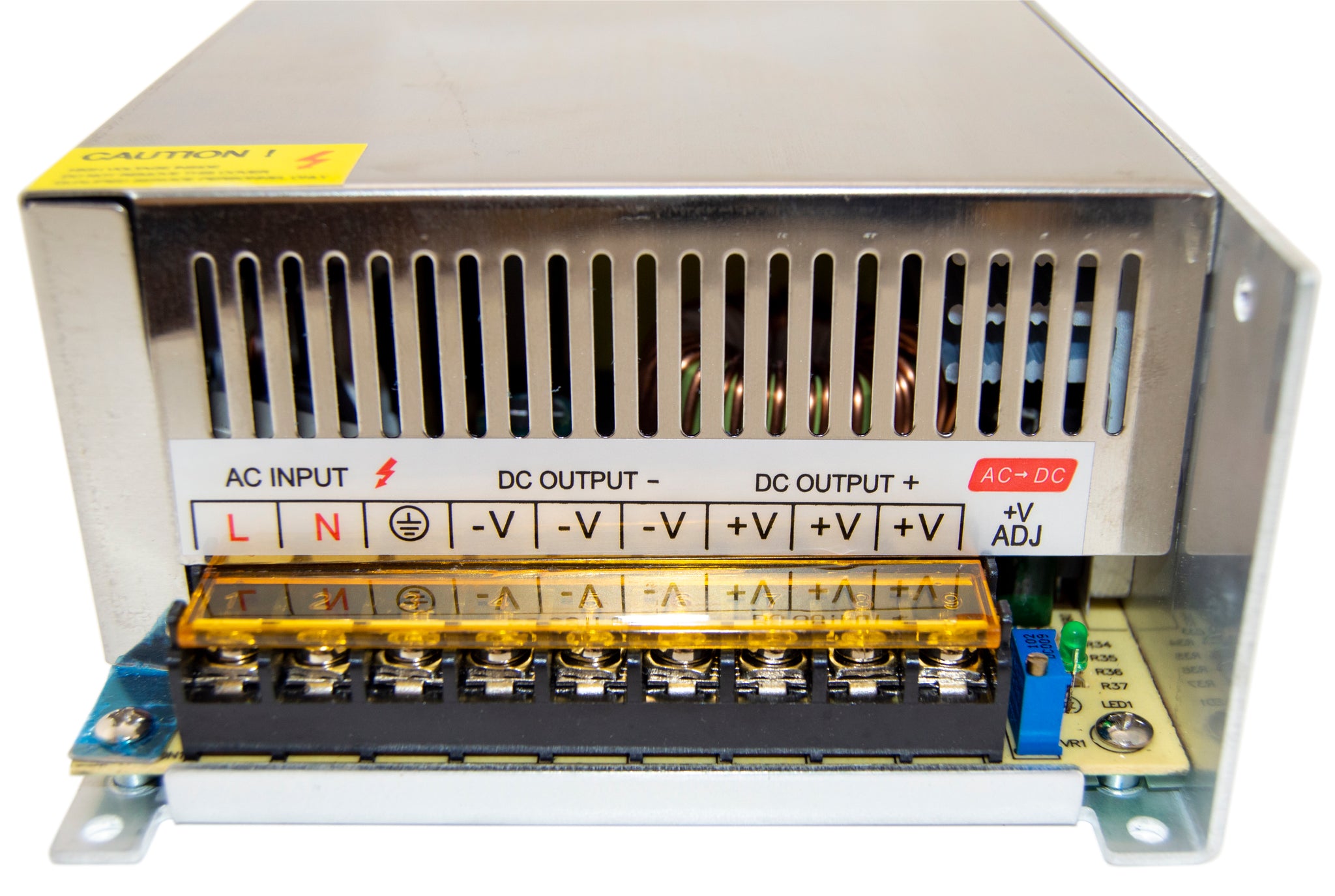

Follow the wiring markings and close the protective cover to prevent electric shock.
