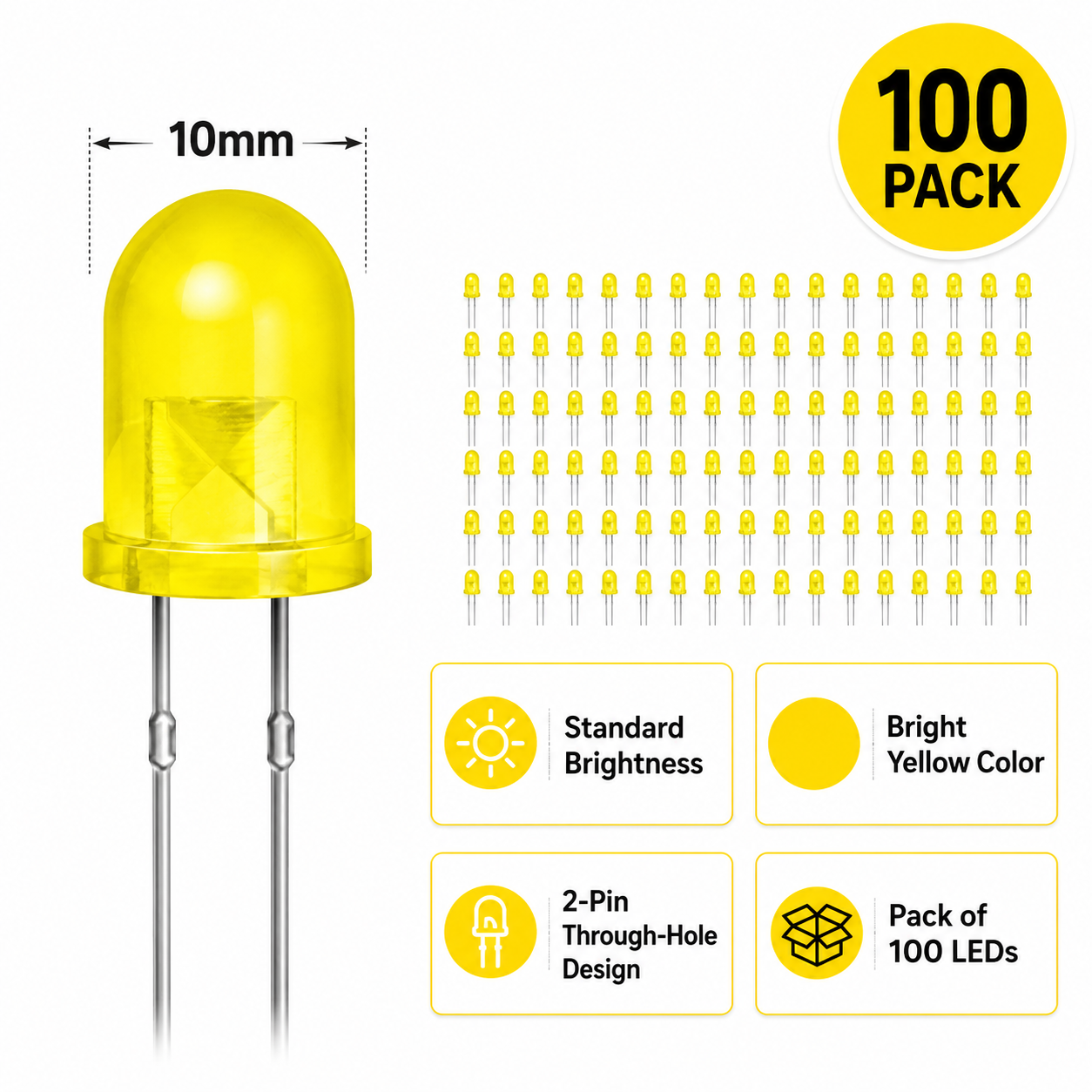

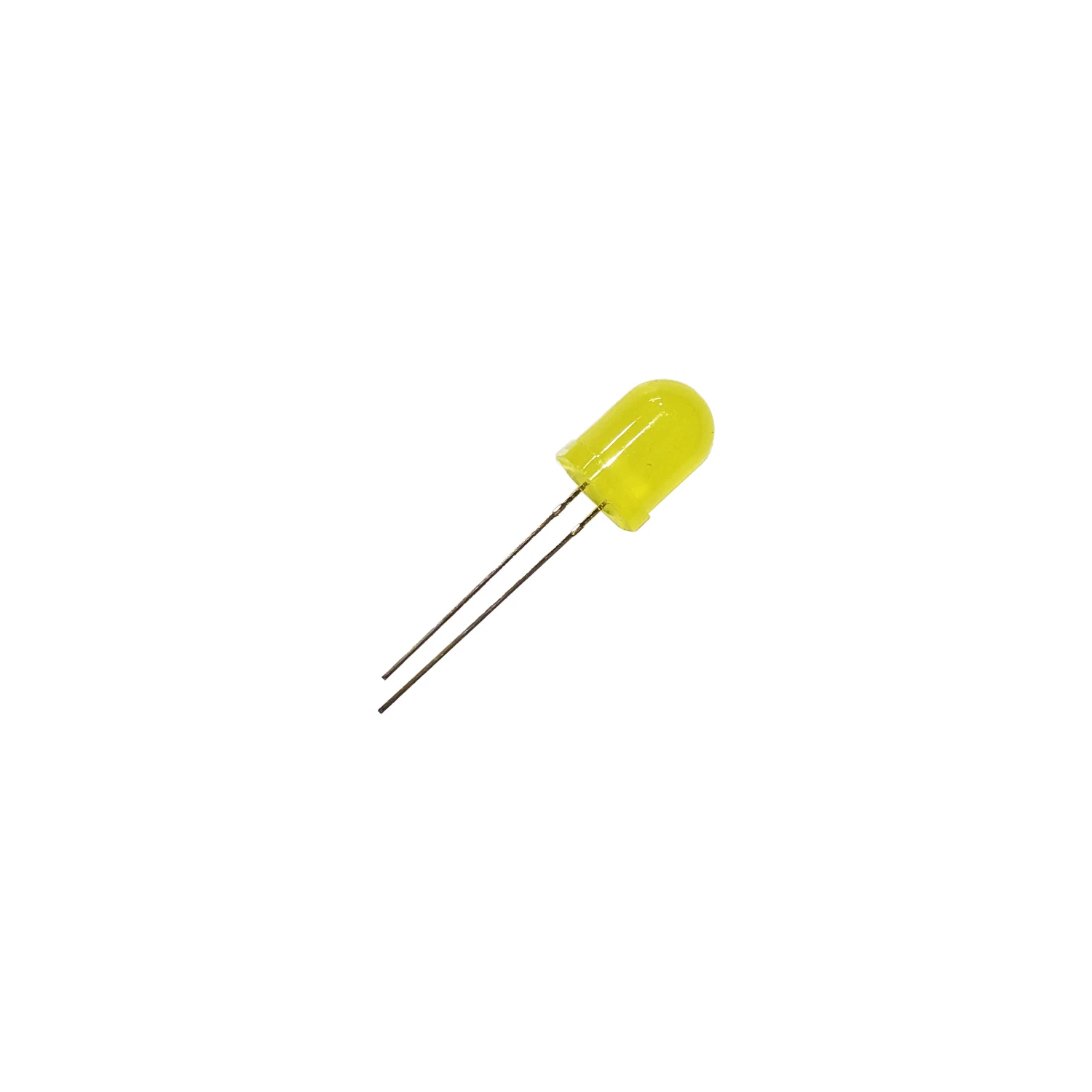

This is a 100-pack of jumbo 10mm yellow LEDs with diffused yellow lenses and round bulbs. Each bulb is 9.6mm in diameter and 13.7mm tall, with a forward voltage of 1.8V-2.2V DC and 20mA maximum current. The diffused lens spreads light evenly for viewing from all sides.
Key Features
- 100 LEDs per pack
- Jumbo 10mm round bulb (9.6mm diameter, 13.7mm tall)
- Diffused yellow lens for wide, even viewing
- Forward voltage 1.8V-2.2V DC, 20mA max
- 2 leads; longer leg is positive (+)

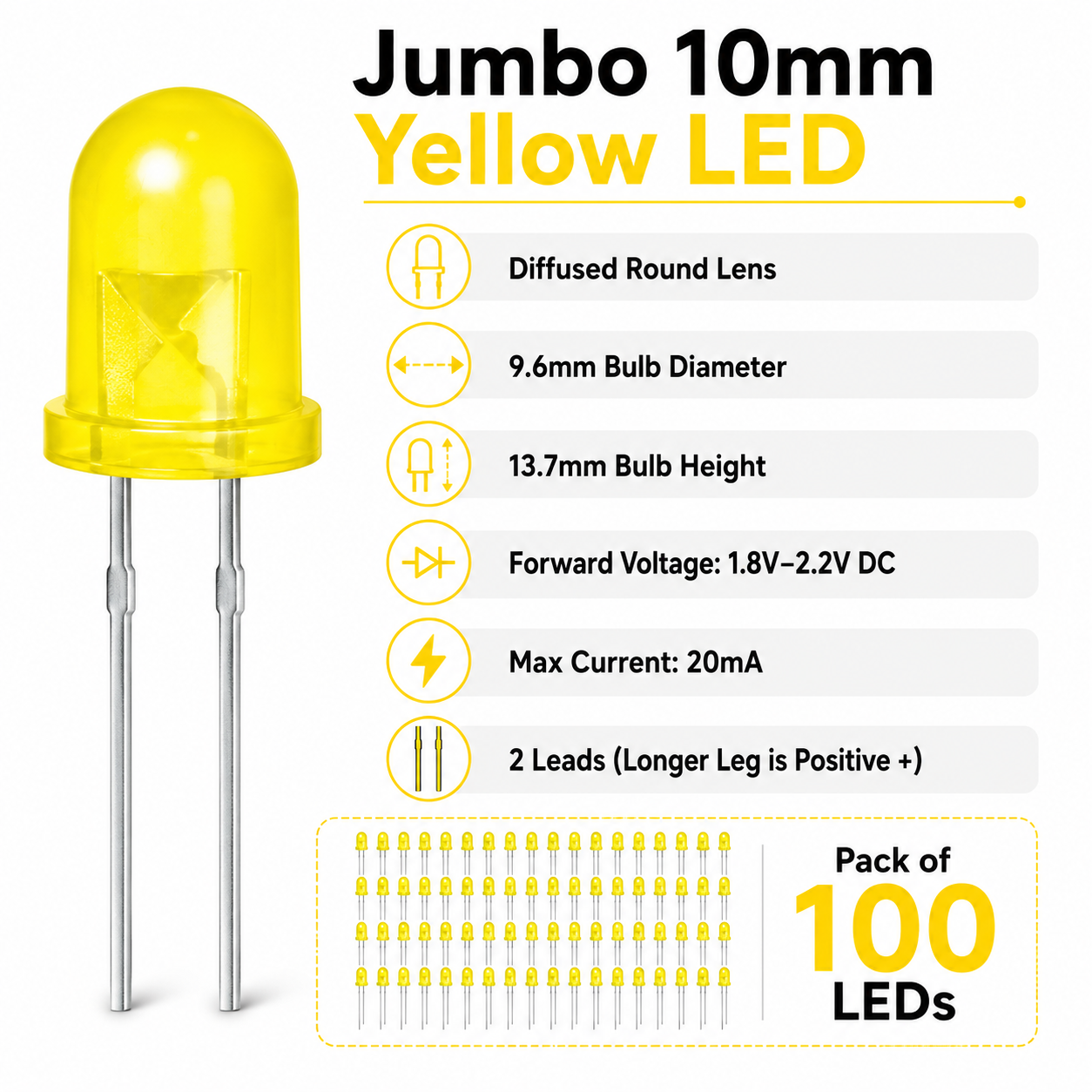

Specifications
| Quantity | 100 LEDs |
|---|---|
| Color | Yellow |
| Lens | Diffused yellow |
| Bulb diameter | 9.6mm |
| Bulb height | 13.7mm |
| Forward voltage | 1.8V-2.2V DC |
| Max current | 20mA |
| Leads | 2 (longer = positive) |
| SKU | 08L3630YDPK100 |
What's Included

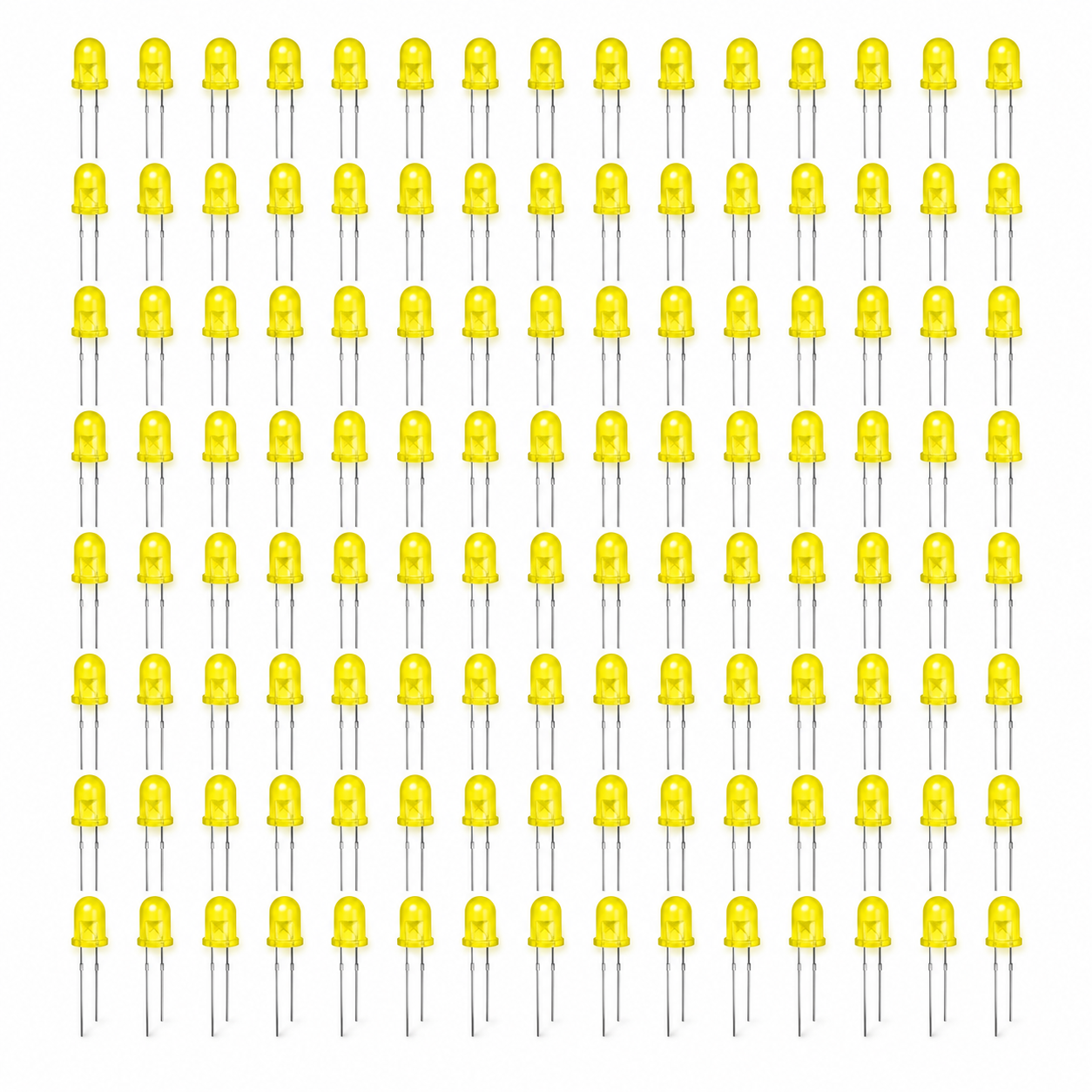

- 100 × 10mm yellow diffused LEDs
Ideal For
Builders who need 100 matching large yellow indicators for signs, panels or classroom kits.
Frequently Asked Questions
What resistor should I use at 5V?
With about 2V forward voltage at 20mA, roughly 150 ohms; at 12V, about 510 ohms.
Diffused or clear: what's the difference?
A diffused lens spreads light so it looks evenly lit from many angles, while a clear lens gives a brighter, narrower beam.
