10 Pack Jumbo 10mm Yellow Diffused LEDs, 2-Pin Round, 1.8V-2.2V 20mA
10 Pack Jumbo 10mm Yellow Diffused LEDs, 2-Pin Round, 1.8V-2.2V 20mA
  • Load image into Gallery viewer, 10 Pack Jumbo 10mm Yellow Diffused LEDs, 2-Pin Round, 1.8V-2.2V 20mA
  • Load image into Gallery viewer, 10 Pack Jumbo 10mm Yellow Diffused LEDs, 2-Pin Round, 1.8V-2.2V 20mA

10 Pack Jumbo 10mm Yellow Diffused LEDs, 2-Pin Round, 1.8V-2.2V 20mA

08L3630YDPK10
Regular price
$2.50
Sale price
$2.50
Regular price
$2.50
Sold out
Unit price
per
Shipping calculated at checkout.

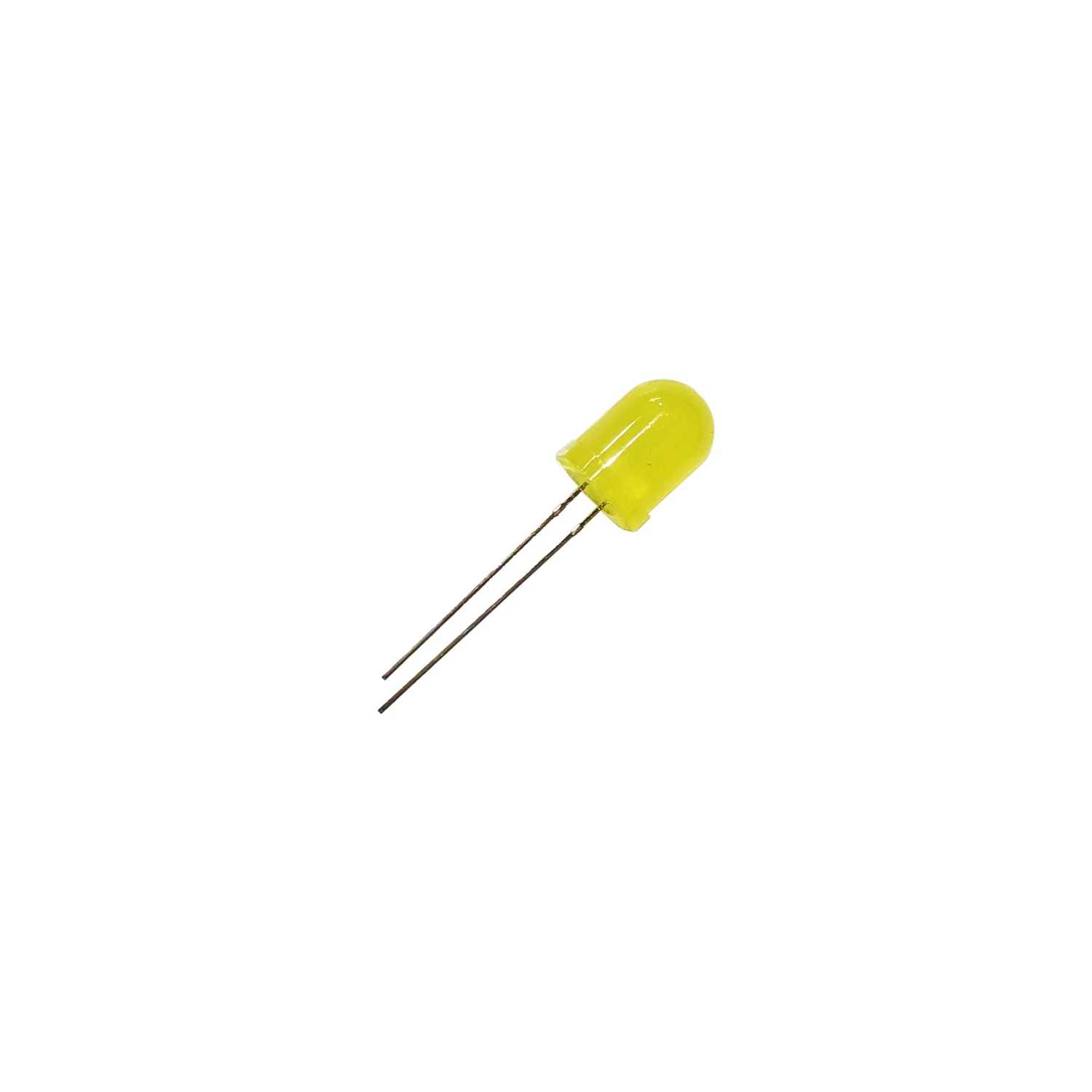

This is a 10-pack of jumbo 10mm yellow LEDs with diffused yellow lenses and round bulbs. Each bulb is 9.6mm in diameter and 13.7mm tall, with a forward voltage of 1.8V-2.2V DC and 20mA maximum current. The diffused lens spreads light evenly for viewing from all sides.

Key Features

  • 10 LEDs per pack
  • Jumbo 10mm round bulb (9.6mm diameter, 13.7mm tall)
  • Diffused yellow lens for wide, even viewing
  • Forward voltage 1.8V-2.2V DC, 20mA max
  • 2 leads; longer leg is positive (+)

Specifications

Quantity 10 LEDs
Color Yellow
Lens Diffused yellow
Bulb diameter 9.6mm
Bulb height 13.7mm
Forward voltage 1.8V-2.2V DC
Max current 20mA
Leads 2 (longer = positive)
SKU 08L3630YDPK10

What's Included

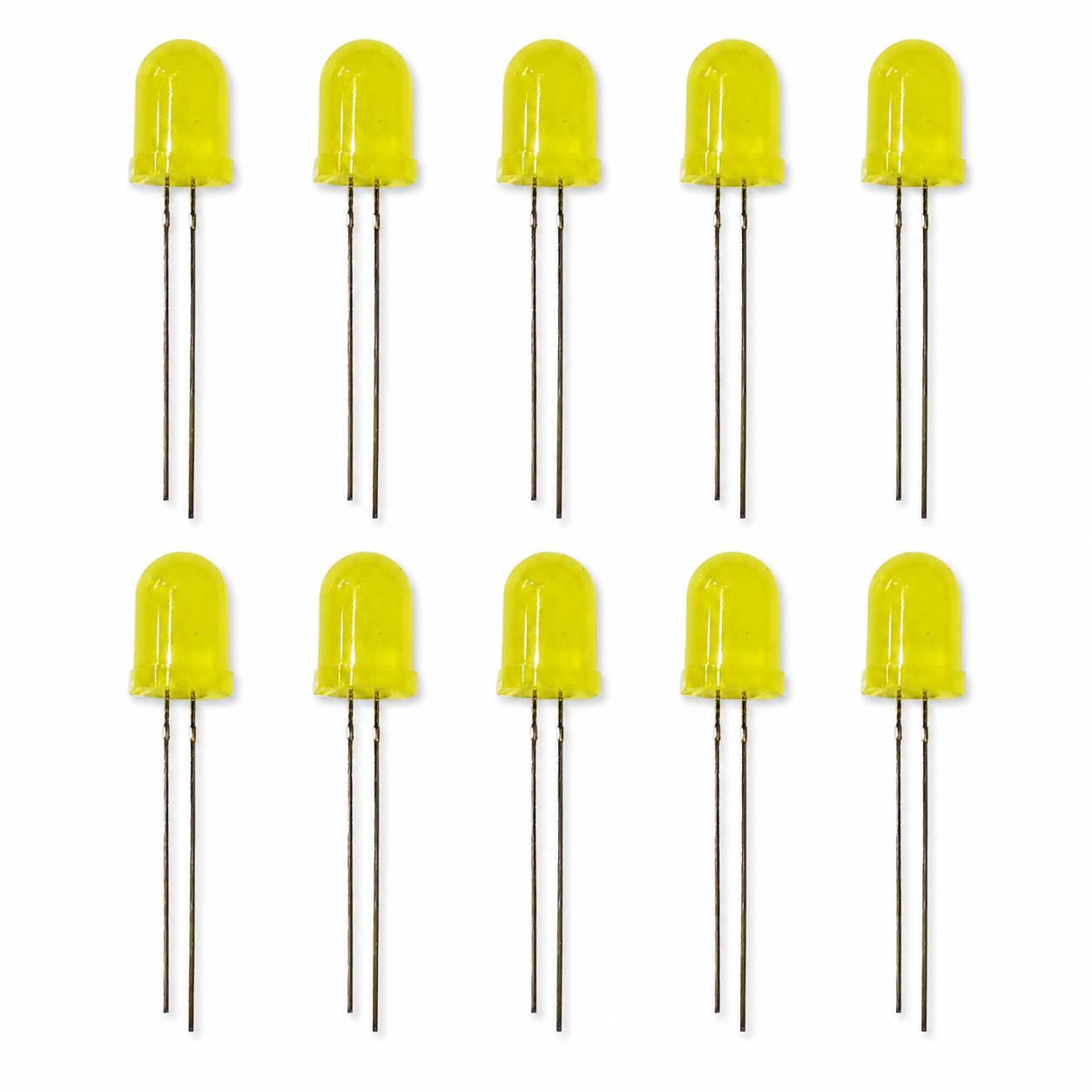

  • 10 × 10mm yellow diffused LEDs

Ideal For

Builders who need 10 matching large yellow indicators for signs, panels or classroom kits.

Frequently Asked Questions

What resistor should I use at 5V?
With about 2V forward voltage at 20mA, roughly 150 ohms; at 12V, about 510 ohms.

Diffused or clear: what's the difference?
A diffused lens spreads light so it looks evenly lit from many angles, while a clear lens gives a brighter, narrower beam.
