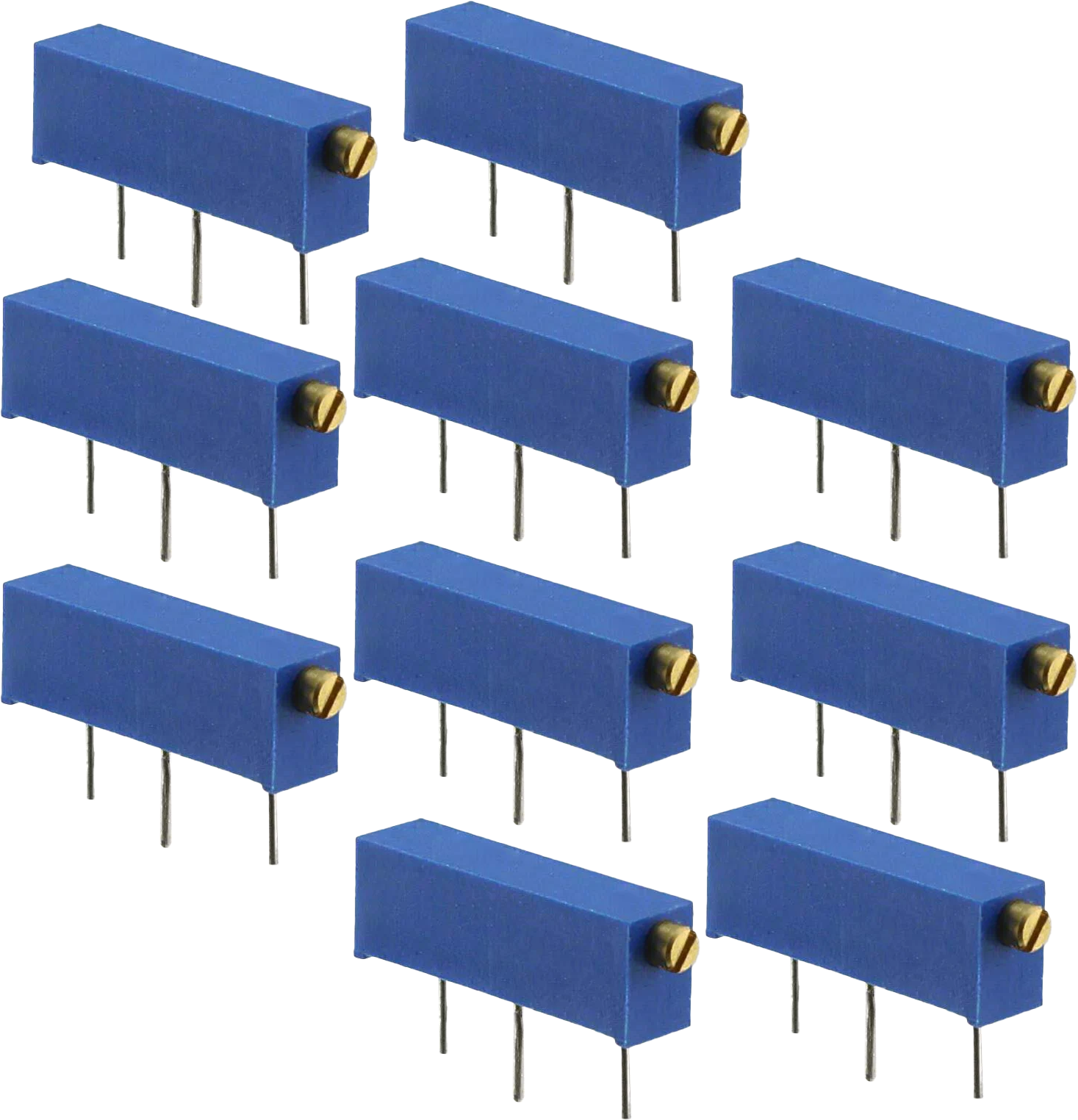

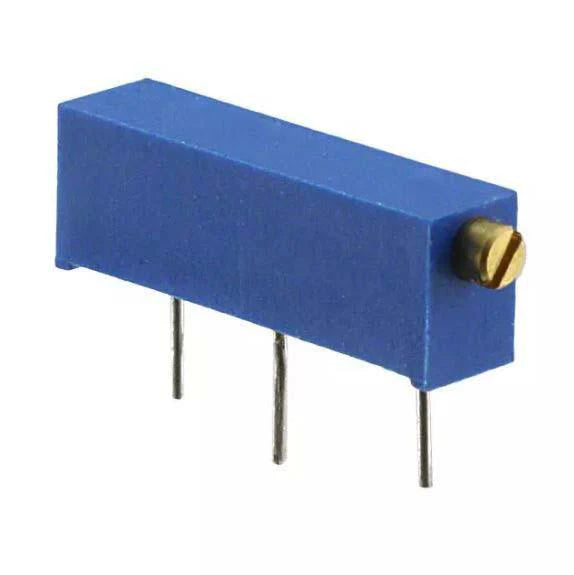

This is a 10-pack of 1K ohm 15-turn cermet potentiometers in a 3/4-inch rectangular through-hole package, rated 0.75 W with ±10% tolerance and a linear taper. The adjustment screw is on the side, and 15 full turns span the whole resistance range, so you can make fine, precise adjustments. Multiturn pots are often used for calibration and setting reference voltages.
Key Features
- 10 potentiometers per pack
- 1K ohm (1,000 ohms)
- 15-turn adjustment for fine resolution
- Cermet element, linear taper
- 0.75 W power rating, ±10% tolerance
- 3/4" rectangular body, side adjust
- Through-hole pin mounting
Specifications
| Pack quantity | 10 |
|---|---|
| Resistance | 1K ohm (1,000 ohms) |
| Tolerance | ±10% |
| Power rating | 0.75 W |
| Number of turns | 15 |
| Taper | Linear |
| Resistive material | Cermet |
| Type | 3/4" rectangular |
| Adjustment | Side |
| Mounting | Through hole, pins |
| SKU | 18MTT1KPK10 |
What's Included
- 10 x 1K ohm 15-turn potentiometer
Ideal For
Electronics builders and techs who need precise, stable trim adjustment on a circuit board.
Frequently Asked Questions
Why use a 15-turn potentiometer?
Spreading the full resistance range over 15 turns gives much finer control than a single-turn pot, which helps when calibrating or setting precise voltages.
What does linear taper mean?
Resistance changes evenly as you turn the adjuster, so each turn moves the value by about the same amount.
