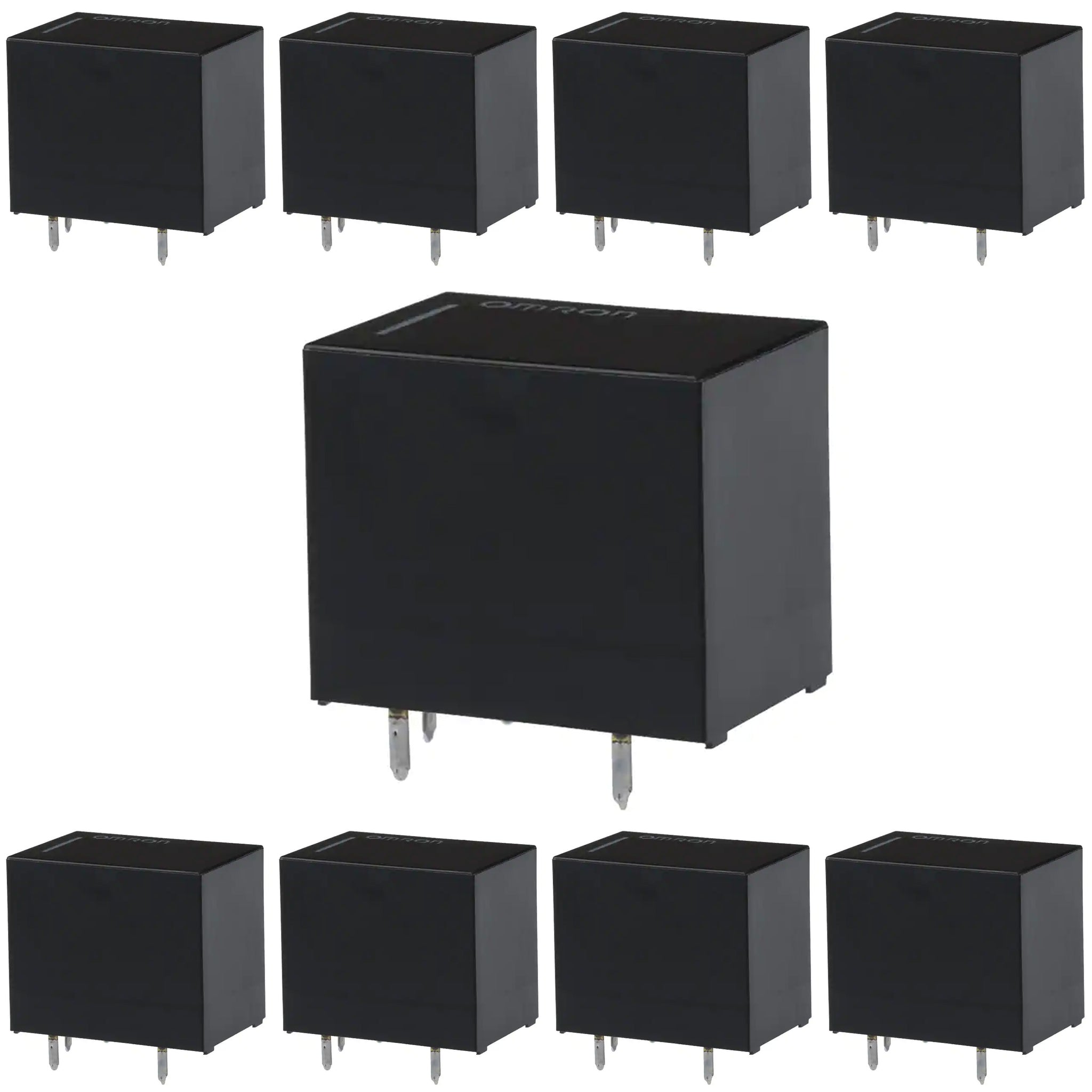

10 Pack General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole

Mfr: Omron Electronics Inc-EMC Div
Series: G5LE
Mounting Type: Through Hole
Coil Voltage: 24VDC

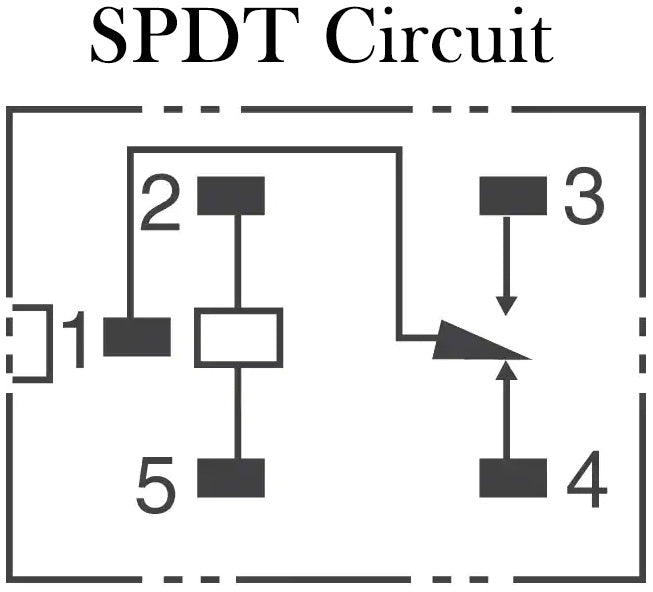

Contact Form: SPDT (1 Form C)
Contact Rating (Current): 10 A
Switching Voltage: 250VAC, 125VDC - Max
Coil Current: 16.7 mA
Coil Type: Non Latching
Termination Style: PC Pin
Seal Rating: Sealed - Fully
Coil Insulation: Class B
Must Operate Voltage: 18 VDC
Must Release Voltage: 2.4 VDC
Operate Time: 10 ms
Release Time: 5 ms
Operating Temperature: -25°C ~ 85°C
Contact Material: Silver Tin Oxide (AgSnO)
Relay Type: General Purpose
Coil Resistance: 1.44 kOhms
