1" Steel Gauge Block, AS-1 Grade, Rectangular, with Inspection Certificate

44PWP809
Regular price
$27.99
Sale price
$27.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

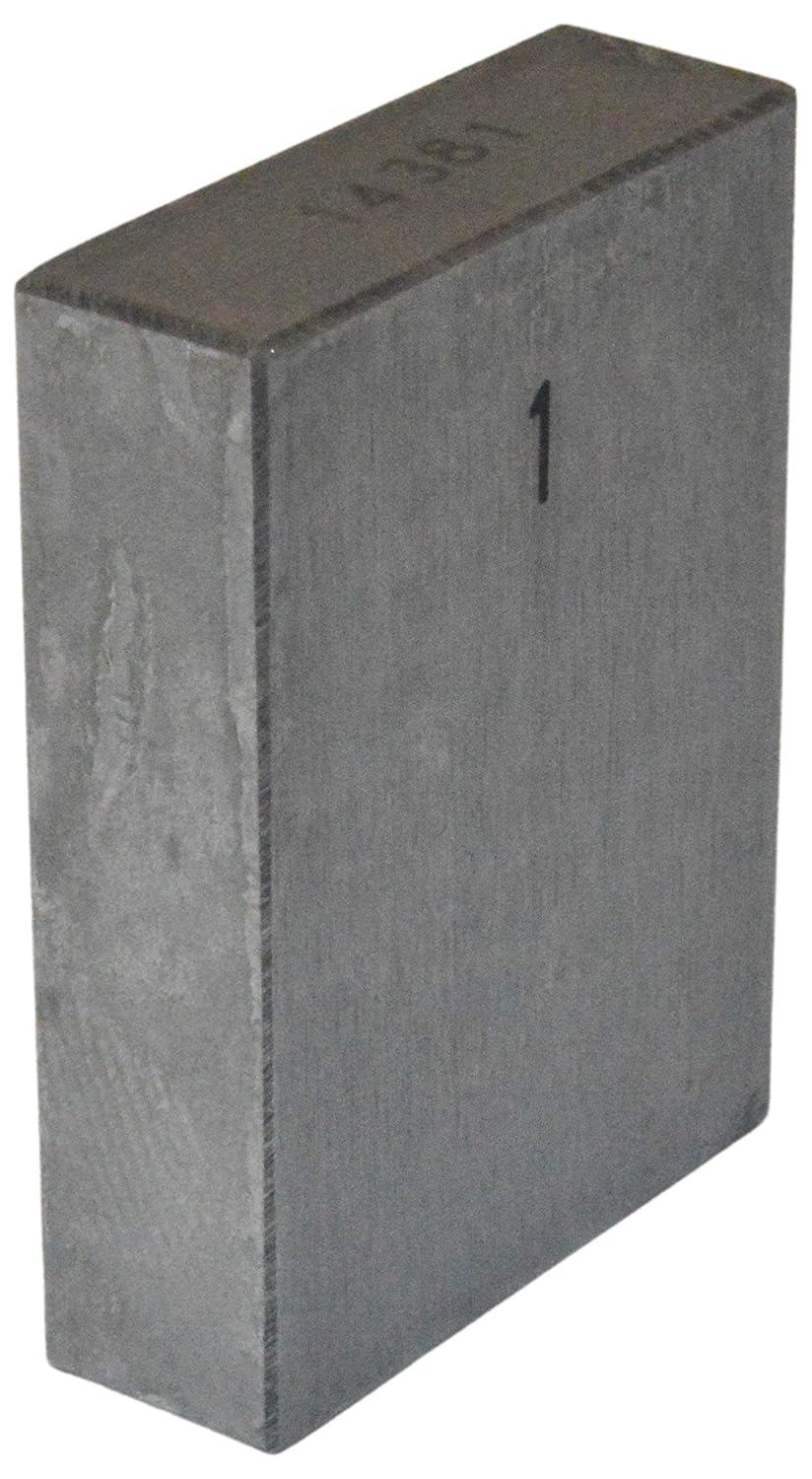

This is a 1-inch rectangular steel gauge block, AS-1 grade, supplied with an inspection certificate. Its deviation from nominal length is +10 µin, and it is used as a reference standard for calibrating micrometers, calipers, sine bars and dial indicators.

Key Features

  • Nominal 1" length, AS-1 grade
  • +10 µin deviation from nominal
  • Inspection certificate included
  • Steel construction

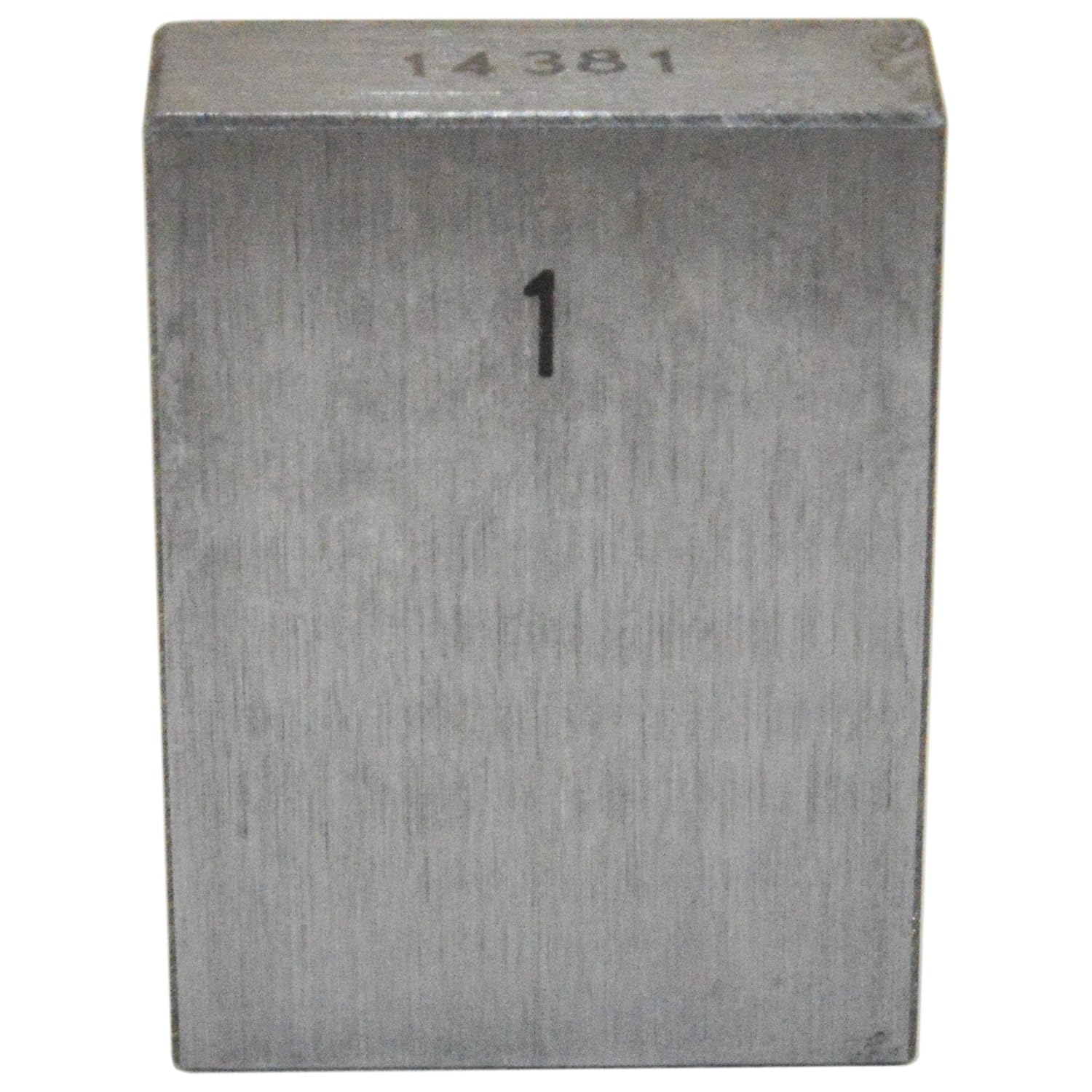

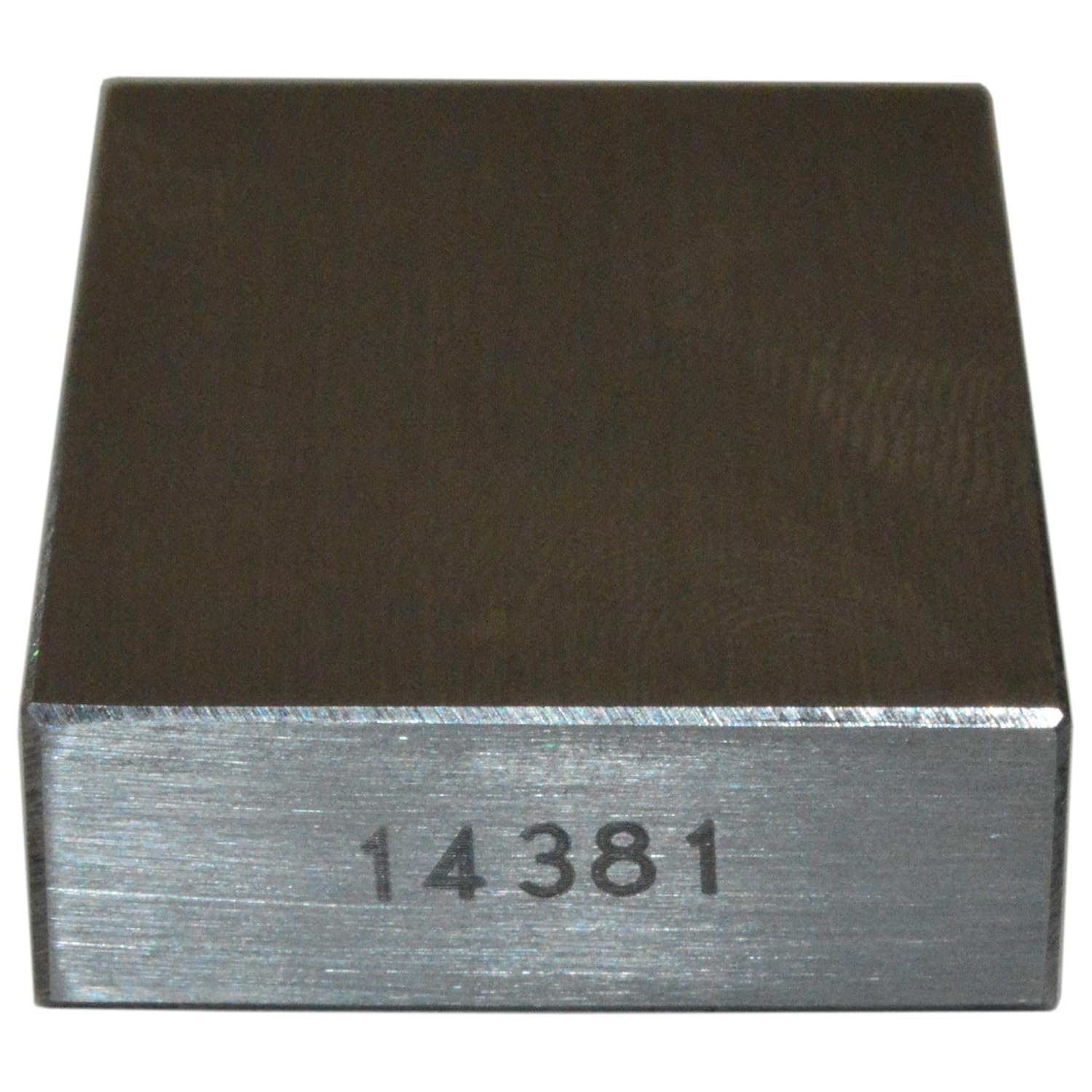

  • Nominal size printed on the front; ID number on top

Specifications

Nominal size 1"
Grade AS-1
Deviation from nominal +10 µin
Material Steel
Shape Rectangular
Overall dimensions 1" x 0.35" x 1.37"
Certificate Inspection certificate
SKU 44PWP809

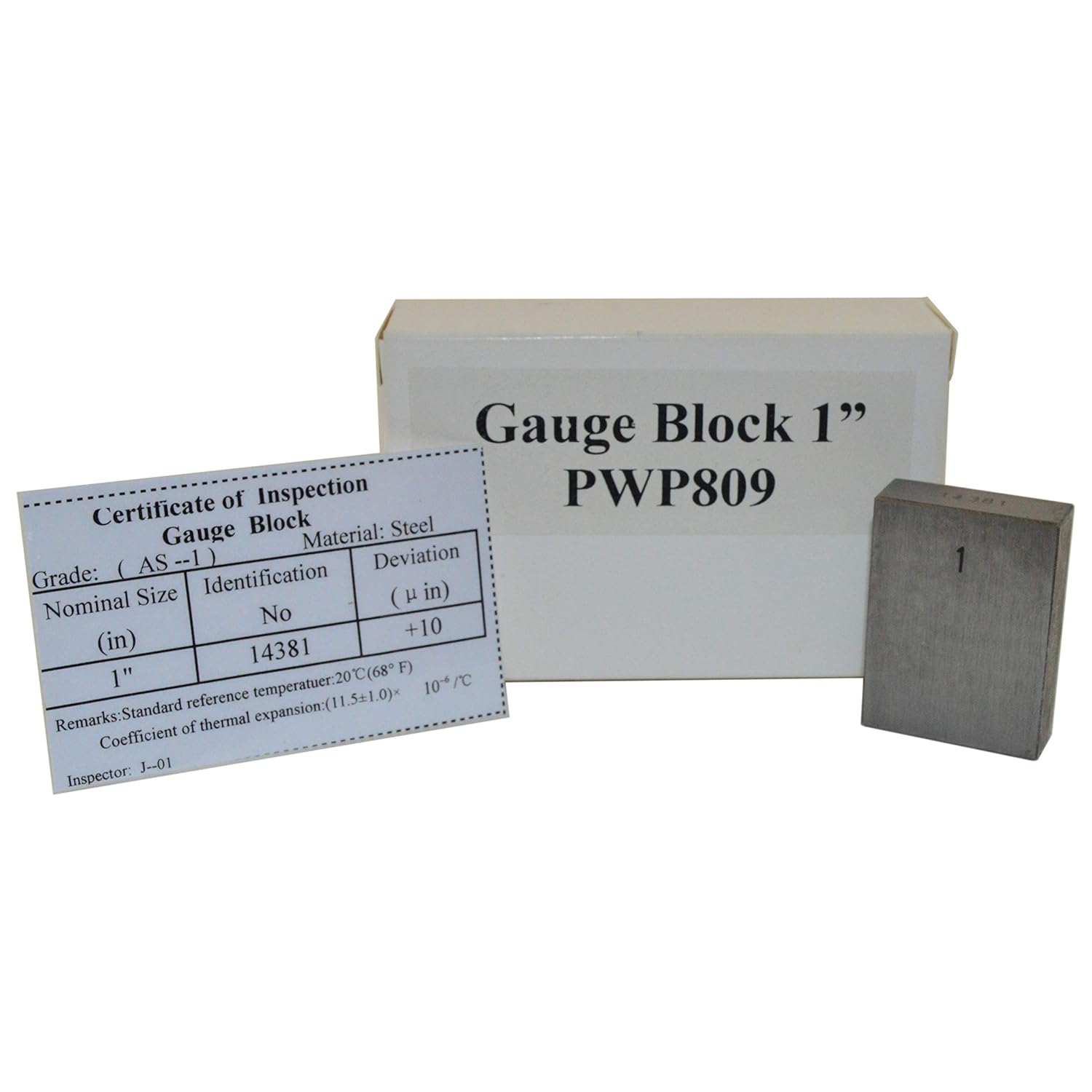

What's Included

  • 1" gauge block
  • Inspection certificate

Ideal For

Machine shops, QC labs and metrology classes checking the accuracy of micrometers and calipers.

Frequently Asked Questions

What is AS-1 grade?
AS-1 is an ANSI gauge block accuracy grade commonly used for inspection and calibration of shop measuring tools; tighter grades are used in calibration labs.

What does +10 µin mean?
The block's measured length is 10 millionths of an inch longer than its nominal 1 inch.
