350 MHz Oscilloscope Scope Probe with Readout Actuator Pin, Fixed x10 Attenuation, Includes Accessory Set

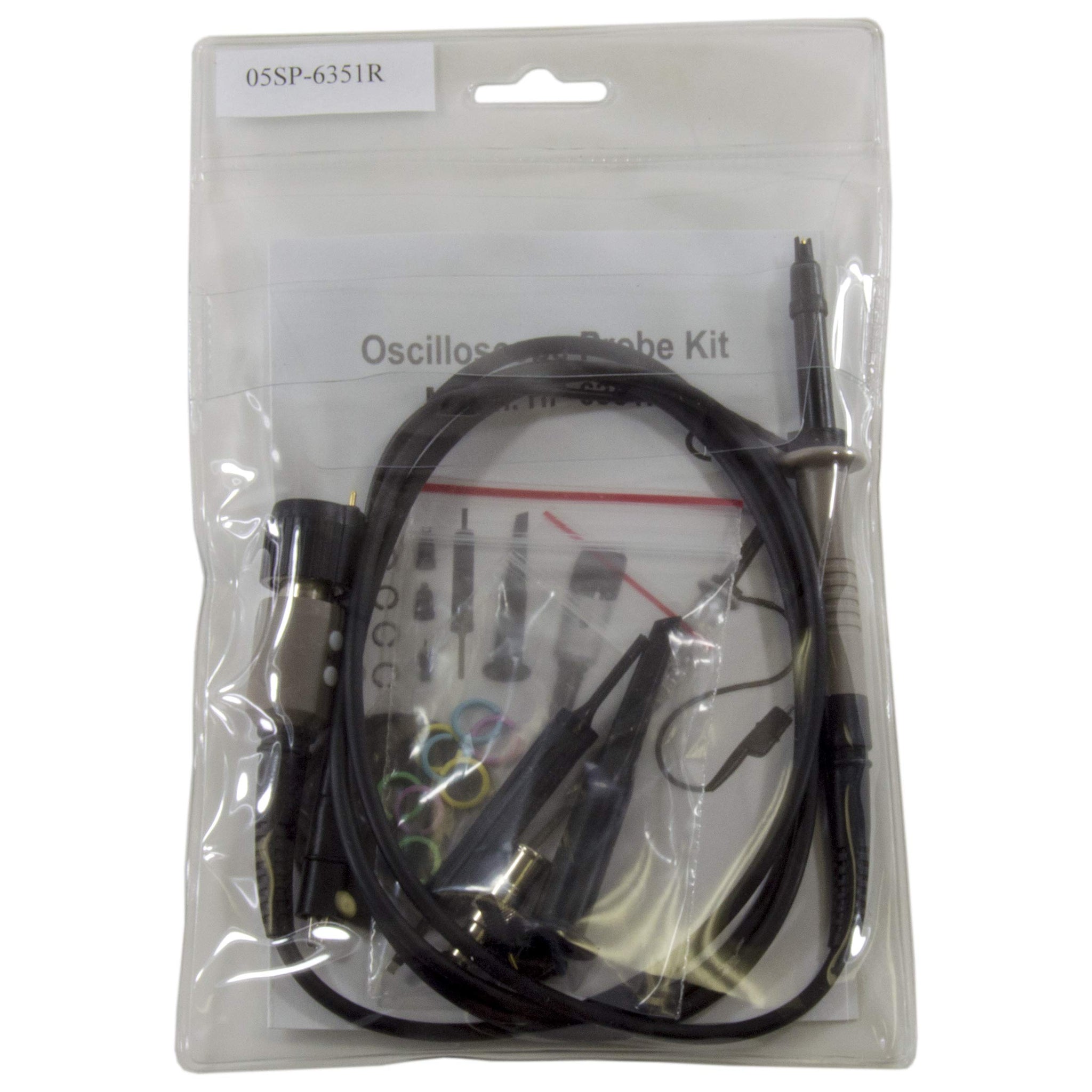

05SP6351R
$59.29
$59.29
Sold out
Shipping calculated at checkout.
  • Fixed x10 attenuation with readout actuator pin - compatible with readout function oscilloscopes that automatically detect and display the attenuation factor of the probe
  • Bandwidth: DC to 350 MHz
  • Rise time: 1.0nS (350 MHz), Compensation Range: 10-25 pF
  • Cable length: 1.2 meter

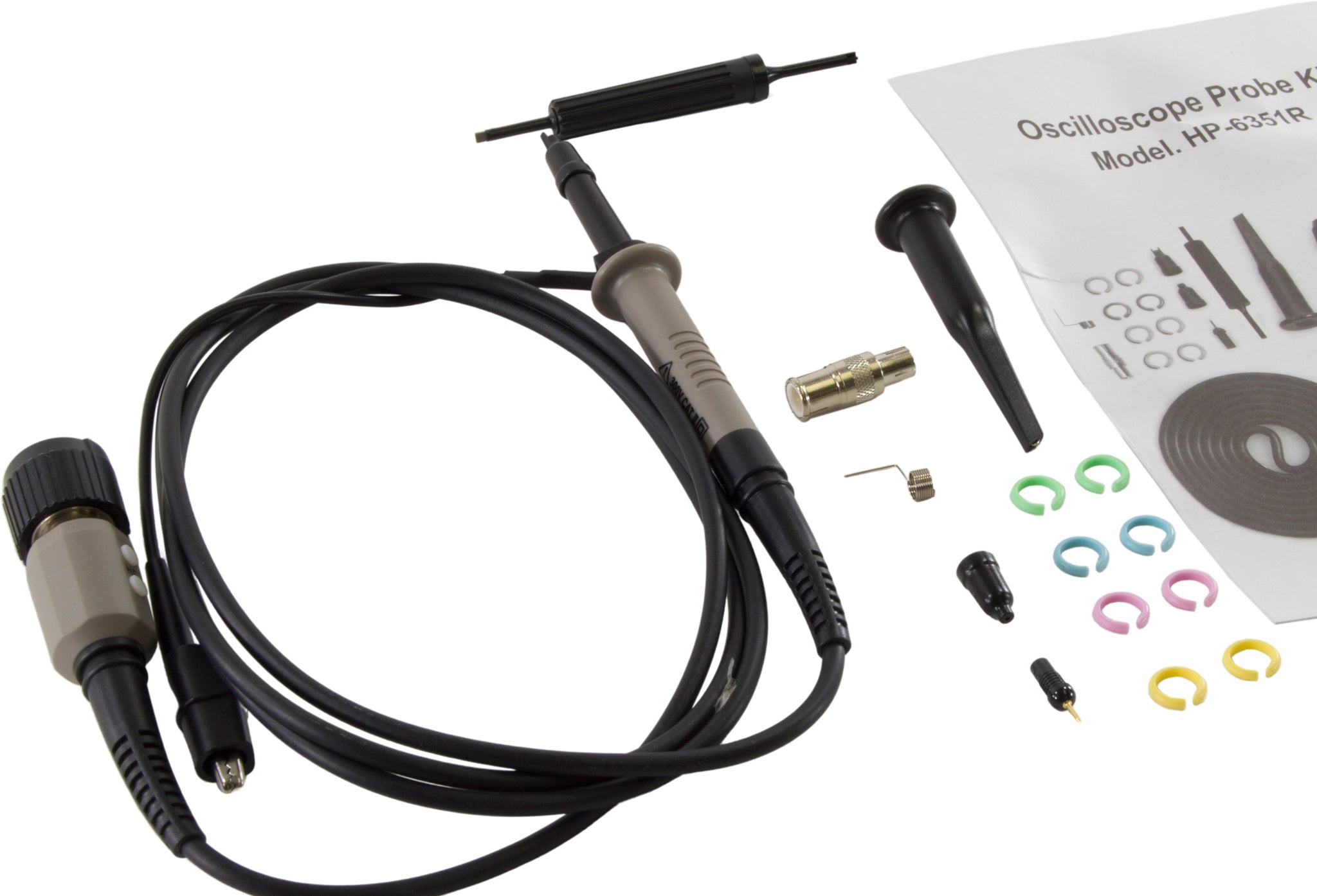

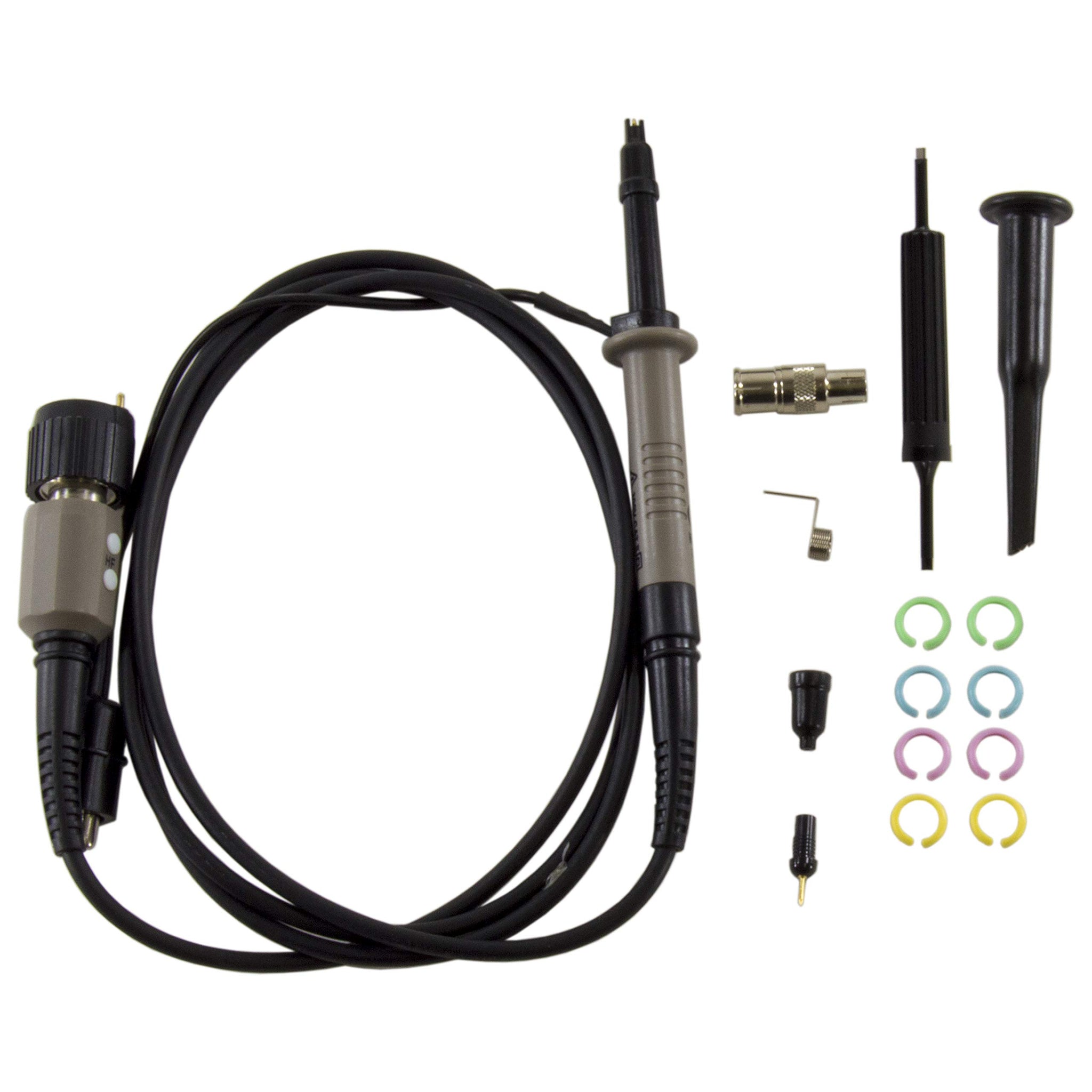

  • Includes Probe, Channel Identifier Clips, Sprung Hook, Ground Lead, Insulating Tip, IC Tip, Adjusting Tool, Measuring Tip, Sprung Earth Tip, BNC Adapter, and Probe Tip Cover

The HP-6351R is a passive high impedance oscilloscope probe designed and calibrated for use with instruments having an input impedance of 1 MΩ shunted by 15 pF. However, it may be compensated for use with instruments having an input capacitance of 10 to 25 pF. The HP-6351R is also compatible with readout function oscilloscopes that automatically detect probe attenuation and adjust the scale readout accordingly.

Compatible with Tektronix scopes.

Specifications:
Attenuation Ratio: 10:1
Bandwidth: DC to 350MHz
Rise Time: 1.0nS
Input Resistance: 10MΩ when used with oscilloscopes which have 1MΩ input.
Input Capacitance: Approx. 11.5 pF
Compensation Range: 10 to 25 pF

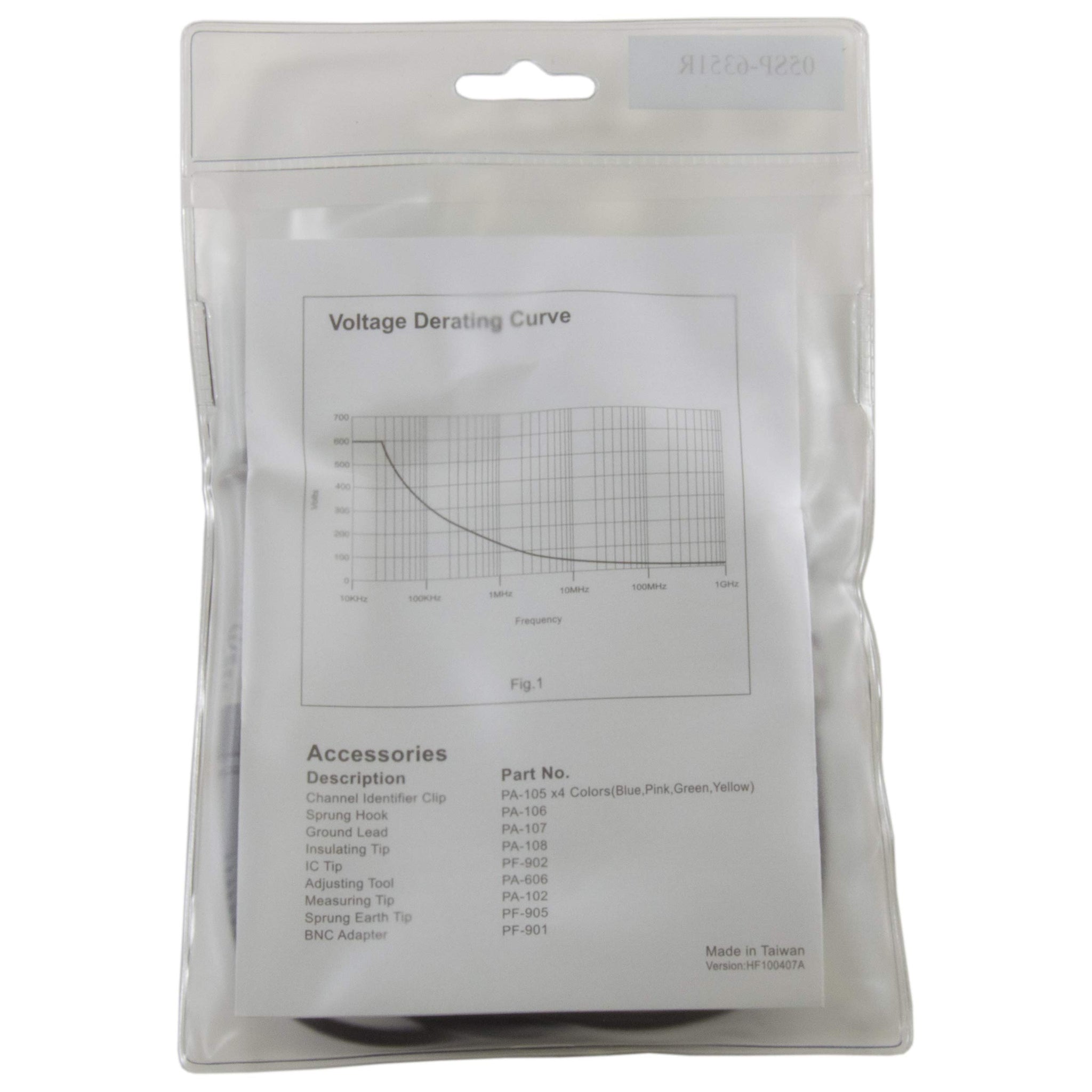

Max. Input Voltage: 600V CAT I, 300V CAT II (DC + peak AC) derating with frequency
Safety: Meets EN61010-031 CAT II
Cable Length: 1.2 Meter

Included Accessories:
Channel Identifier Clips (2 Blue, 2 Pink, 2 Green, and 2 Yellow)
Sprung Hook
Ground Lead
Insulating Tip
IC Tip
Adjusting Tool
Measuring Tip
Sprung Earth Tip
BNC Adapter
