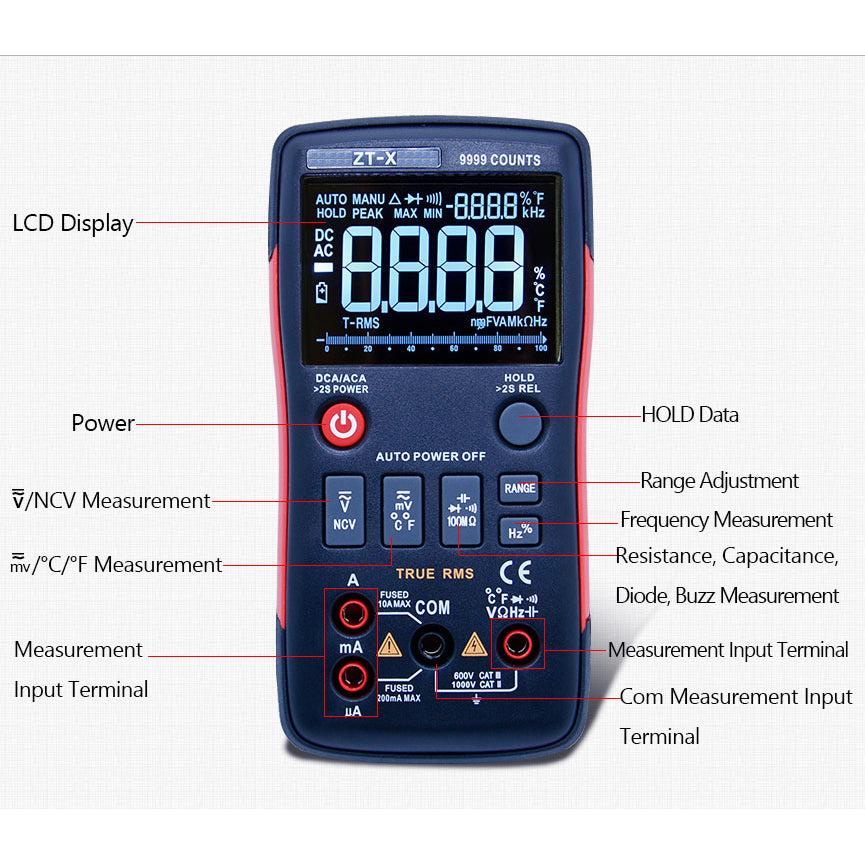

- Digital multimeter designed for convenient one-handed operation — uses buttons rather than a selector switch
- Large backlit LCD screen, 9999 counts, true RMS, auto ranging
- Features DC/AC, Resistance, Capacitor, and Frequency test functions
- Includes data hold, duty cycle, NCV, continuity, and diode test functions
- Auto power off

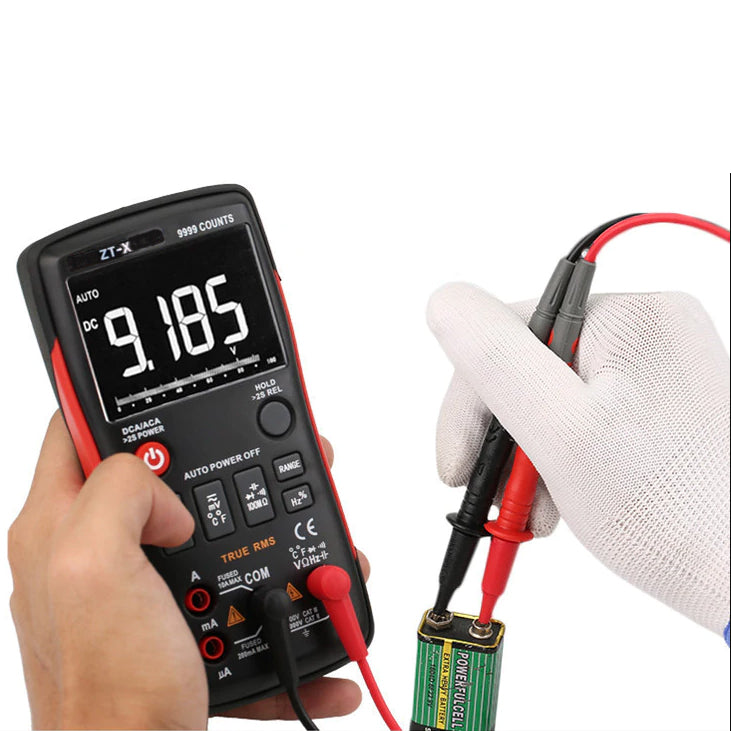

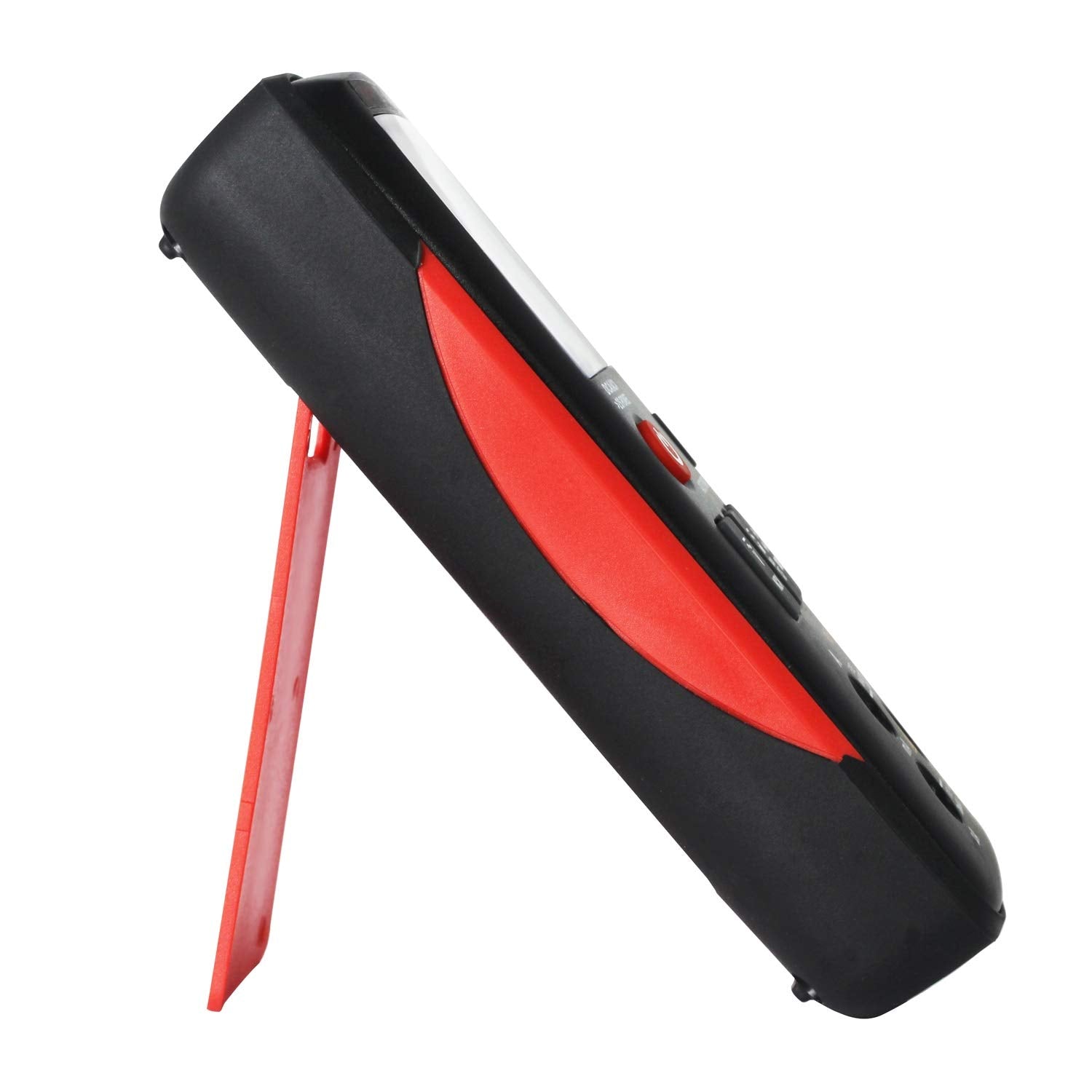

The ZT-X autoranging True RMS NCV multimeter is designed for convenient one-handed operation by using buttons rather than a switch. It tests DC/AC, Resistance, Capacitor, Voltage and Frequency (displayed simultaneously), and temperature in both Celsius and Fahrenheit (displayed simultaneously). Powered by two AA batteries (included) and features a low battery indicator as well as an auto power off feature. The LCD screen has 9999 counts and is backlit. Auto or manual ranging and 3 times per second update rate. The rugged case provides protection against shocks and accidental drops. A collapsible, break-resistant stand holds the multimeter upright.

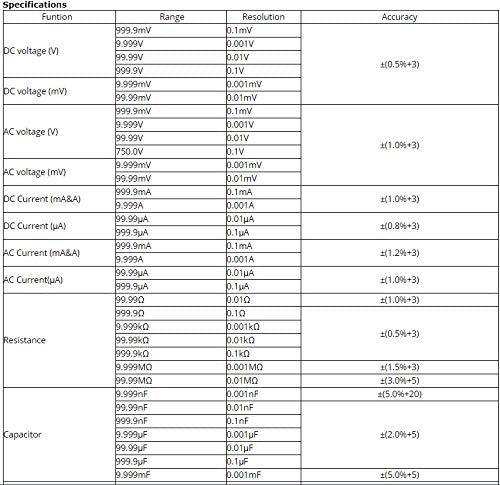

Specifications:
Display: 9999 counts
DC voltage: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V ±(0.5%+3)
AC voltage: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V ±(1.0%+3)
DC Current: 999.9mA/9.999A ±(1.0%+3); 99.99mA/9999μA±(0.8%+3)
AC Current: 999.9mA/9.999A ±(1.2%+3); 99.99μA/9999μA±(1.0%+3)
Resistance: 99.99Ω ±(1.0%+3); 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ ±(0.5%+3);
9.999MΩ ±(1.5%+3); 99.99MΩ ±(3.0%+5)
Capacitance: 9.999nF ±(5.0%+20); 99.99nF/999.9nF/9.999μF/99.99μF/999.9μF ±(2.0%+5);
9.999mF ±(5.0%+5)

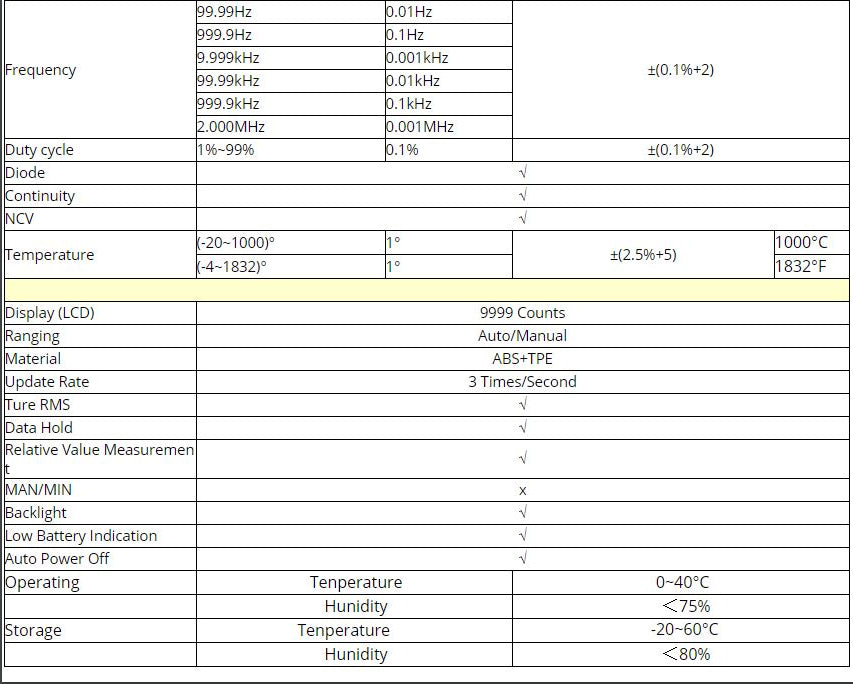

Frequency: 99.99Hz/999.9Hz /9.999kHz/99.99kHz/999.9kHz/2.000MHz ±(0.1%+2)

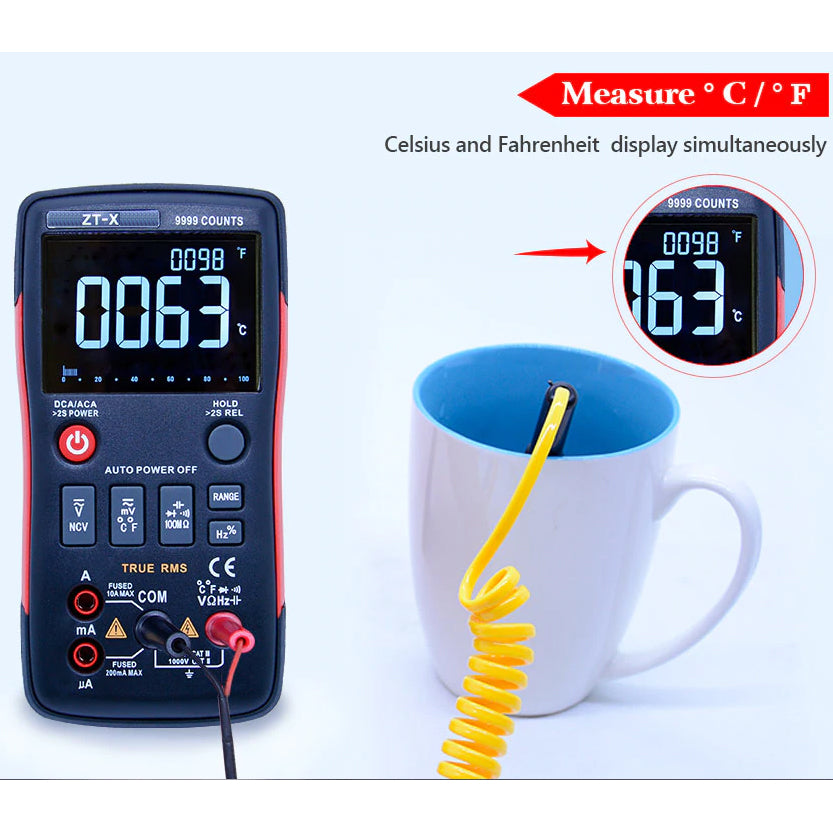

Temperature: -20℃~1000℃/-4°F~1832°F ±(2.5%+5)
Duty cycle: 1%~99% ±(0.1%+2)
Diode: Yes
Continuity: Yes
NCV: Yes
Power: 2 x 1.5V (AA) battery (included)
Size: 146 x 72 x 33mm
Weight: 171g

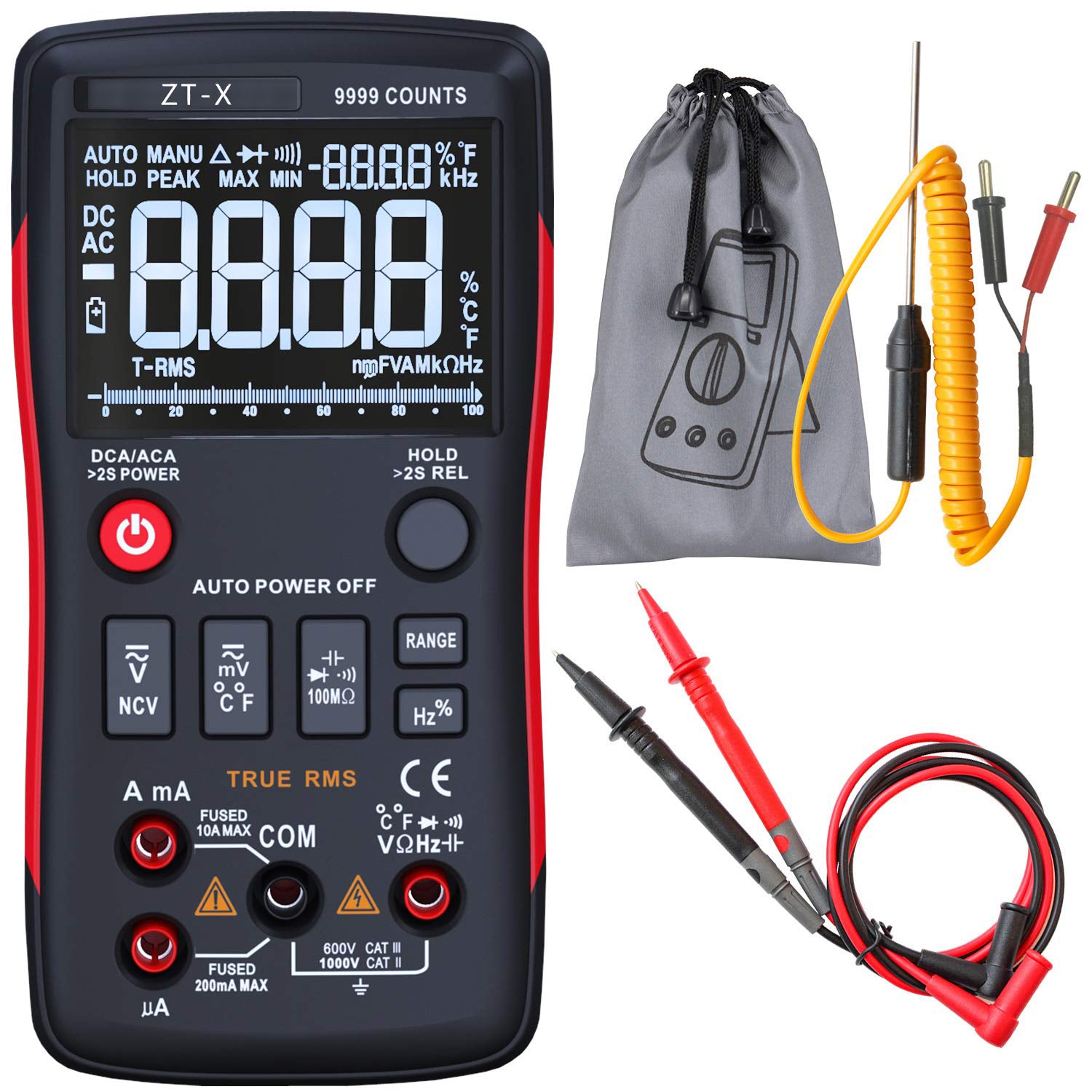

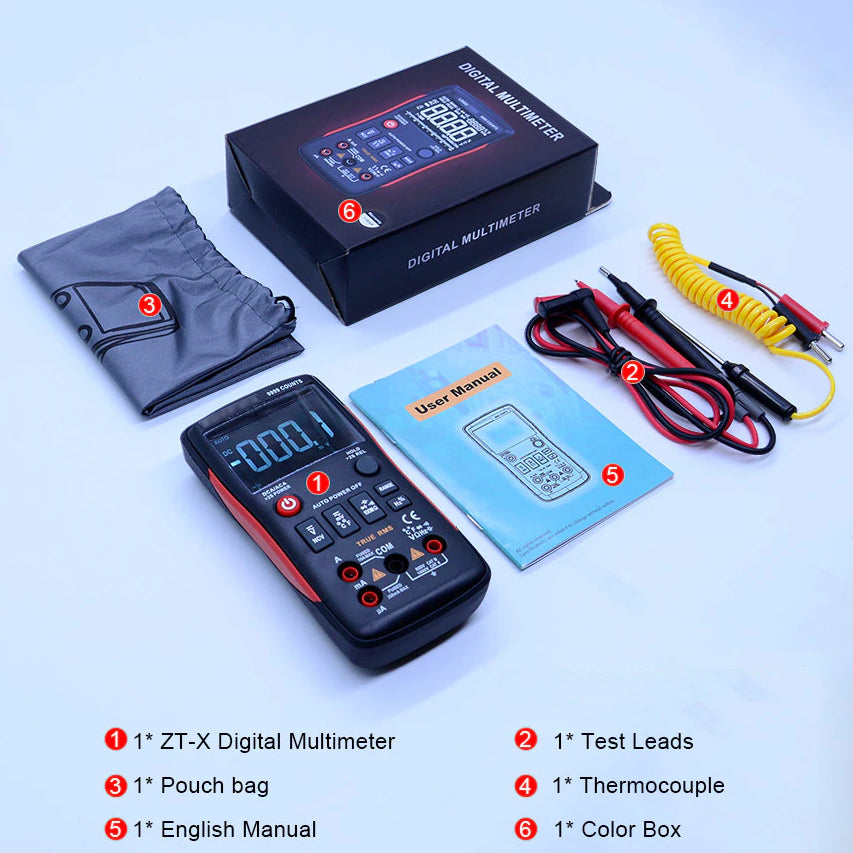

Package Includes:
1 x Digital Multimeter
1 x Test Leads
1 x Thermocouple
1 x Drawstring Storage Bag
1 x User Manual
