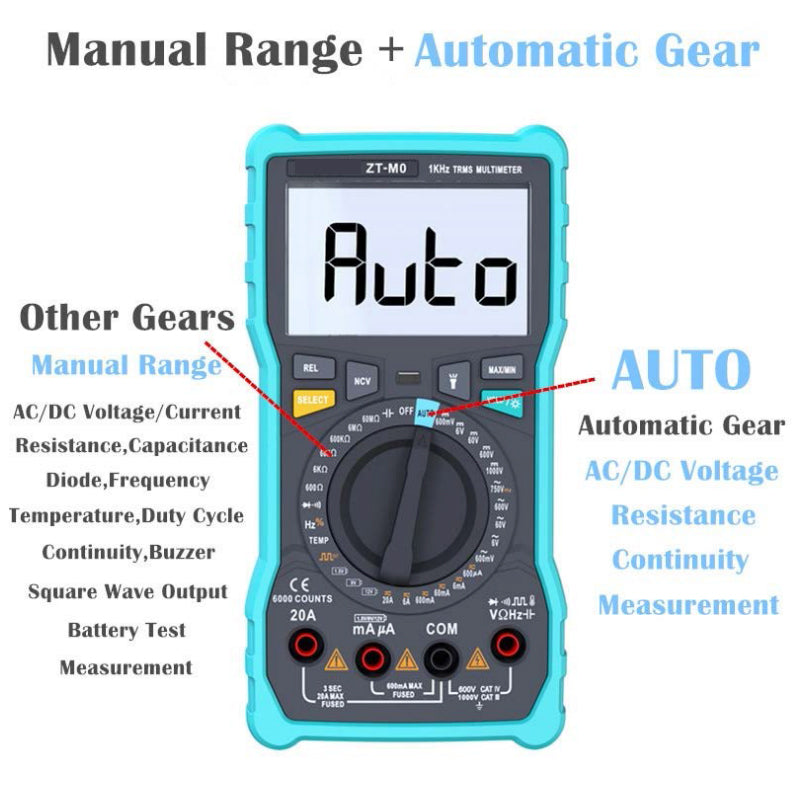

- Manual range + automatic gear

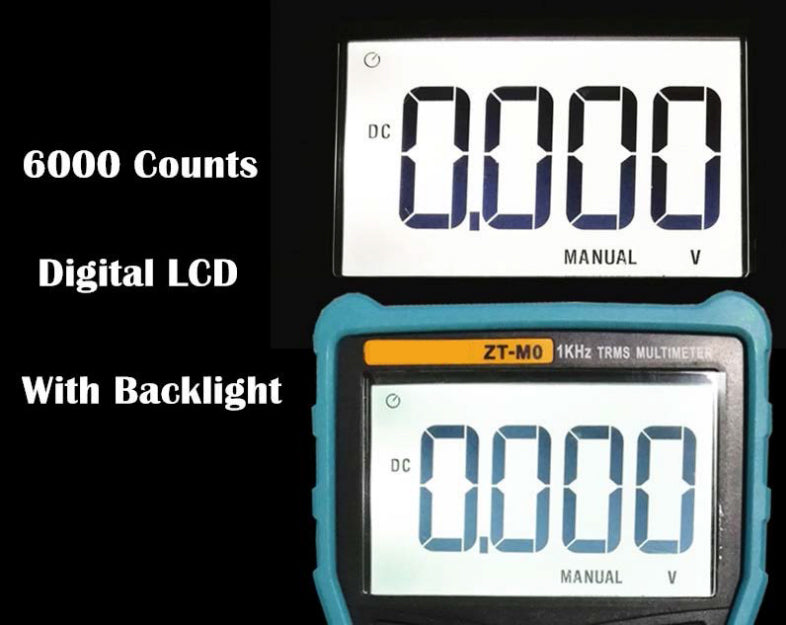

- 6000 counts LCD display and a backlight
- Voltage/Resistance/Continuity measuring
- Square wave output
- Capacitance, diode, temperature, frequency measurement
Features:
Battery test, square wave output test
Capacitance, temperature, frequency and diode test
AC/DC voltage, AC/DC current, resistance, continuity and NCV test
Duty cycle, load current and dump energy test
TRMS, auto-ranging, data hold with low battery indication
Manual range and automatic identification
Flashlight with 2 back probe holder
Max/Min reading

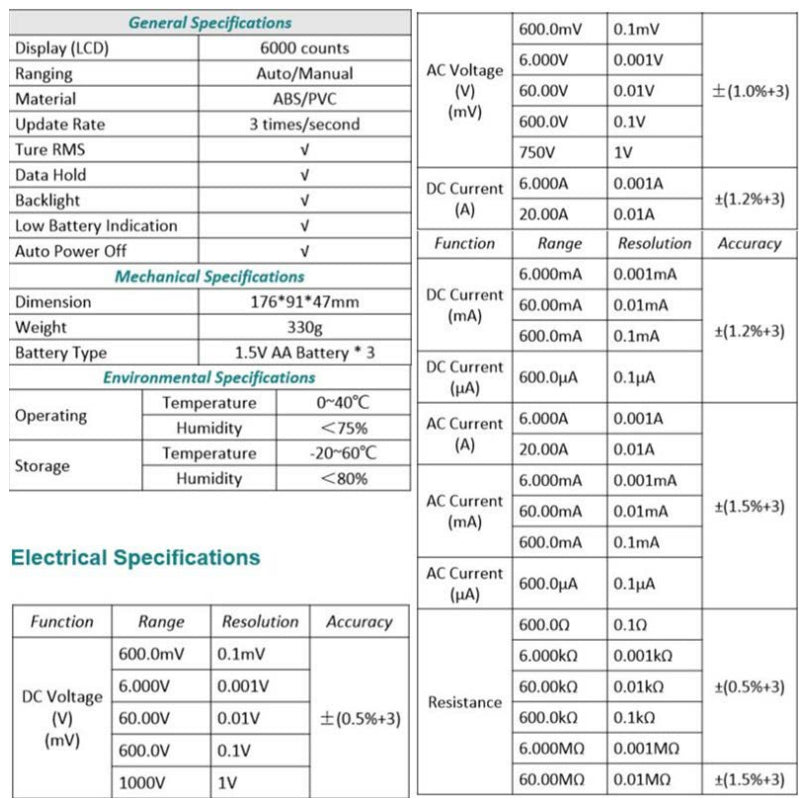

Specifications:
Display: 6000 counts
DC Voltage: 600.0mV/6.000V/60.00V/600.0V/1000V ±(0.5%+3)
AC Voltage: 600.0mV/6.000V/60.00V/600.0V/750V ±(1.0%+3)
DC Current: 600.0μA/6.000mA/60.00mA/600.0mA/6.000A/20.00A ±(1.2%+3)
AC Current: 600.0μA/6.000mA/60.00mA/600.0mA/6.000A/20.00A ±(1.5%+3)
Resistance: 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ±(0.5%+3); 60.00MΩ ±(1.5%+3)

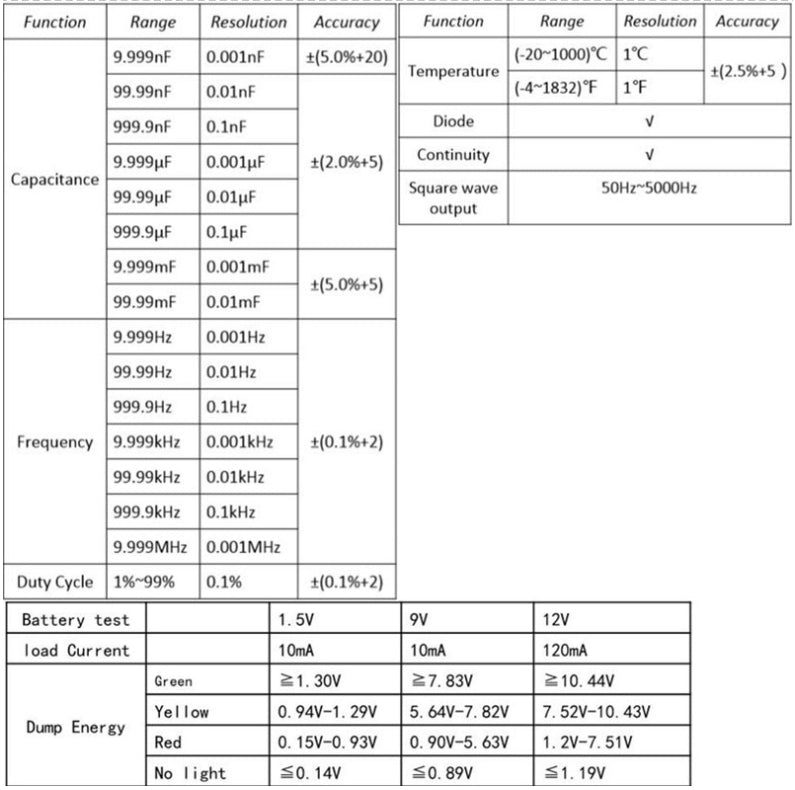

Capacitance:
9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF ±(5.0%+20);
9.999mF/99.99mF ±(5.0%+5)
Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz ±(0.1%+2)
Duty Cycle: 1%~99% ±(0.1%+2)
Temperature: (-20~1000)℃/(-4~1832)℉ ±(2.5%+5)
Square wave output: 50Hz~5000Hz
Diode: show the forward voltage
NCV: alarm beep sounds and LED blink if detect AC voltage
Continuity: alarm beep sounds if resistance less than 50Ω
Power: 1.5V (AA) x 3
Size: 176mm * 91mm * 47mm
Weight: 330g

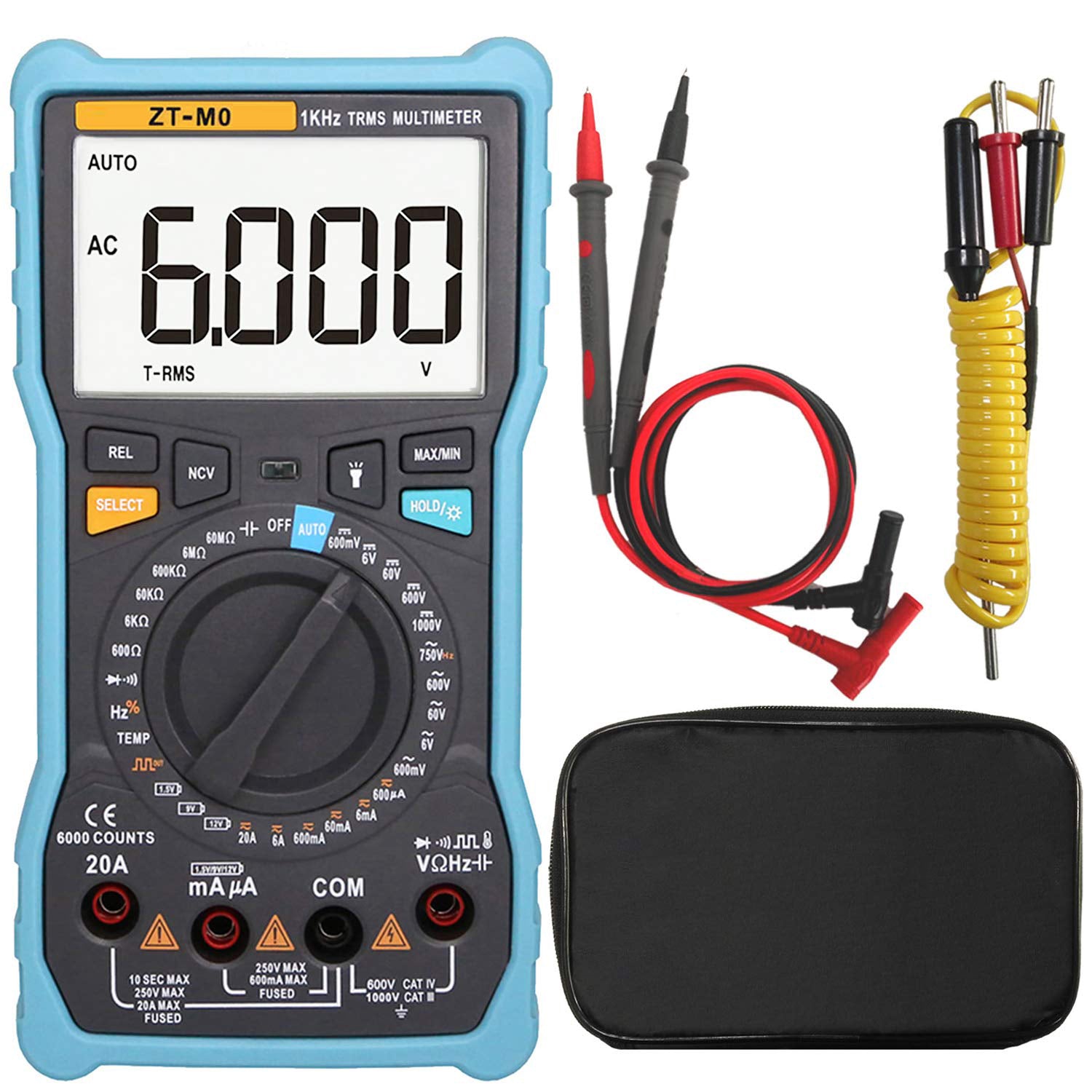

Package Includes:
1 * Digital Multimeter
1 * Probes
1 * Thermocouple
1 * Carrying Case
1 * User Manual
