- DDS type generator (Direct Digital Synthesis)
- DAC resolution: 10 bits
- frequency range: from 1 Hz to 1 000 000 Hz (± 0.01%)
- frequency steps: 1 Hz 10 Hz 100 Hz 1 kHz and 10 kHz
- waveforms: sine square and triangle

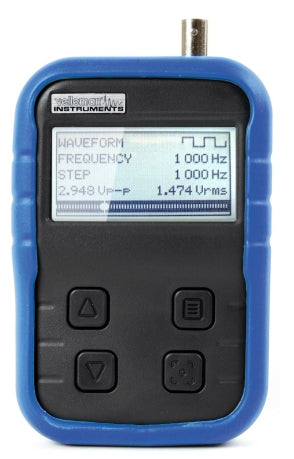

A complete function generator in pocket format!
Now you can take test signals on the move, 3 waveforms can be selected.
Set the output voltage or frequency and select signal waveform using the on the screen menu.
A powerful sweep function is also included.
Features
- DDS type generator (Direct Digital Synthesis)
- DAC resolution: 10 bits
- frequency range: from 1 Hz to 1.000.000 Hz
- frequency steps: 1 Hz, 10 Hz, 100 Hz, 1 kHz and 10 kHz
- accuracy:
- 2.00 % @ 1Hz-10Hz
- 0.035 % @100Hz
- 0.010 % @1kHz
- 0.015 % @10kHz-1MHz
- waveforms: sine, square and triangle
- sweep function with bi-direction option
- output voltage: max. 8 Vpp
- real output level measurement: dBm / Vrms or Vpp readout (± 3 %)
- typical sine wave distortion (THD): < 0.1% @ 0dB / 600 ohm
- square wave rise/fall time: typ. 0.2 µs
- output impedance: 50 ohm
- multi-language menu (Eng / Fre / Dut / Ge / Es )
- white LED backlight
- charging power supply: 9 Vdc/200 mA
- operates on NiMH rechargeable battery pack (included)
- dimensions: 74 x 114 x 29 mm / 2.9 x 4.5 x 1.14"
-
in the box:
- handheld Pocket Generator
- getting started manual
- BNC adapter, BNC male to RCA female
- BNC male to 2x 4mm banana plug
- USB power supply adaptor
