- Measures AC/DC voltage and current, resistance, capacitance, frequency and temperature both in Fahrenheit and Celsius
- Backlight on the LCD allows for operation in the dark
- 3 3/4 digit display that reads 3999
- Sampling rate: Approximately 3 times per second

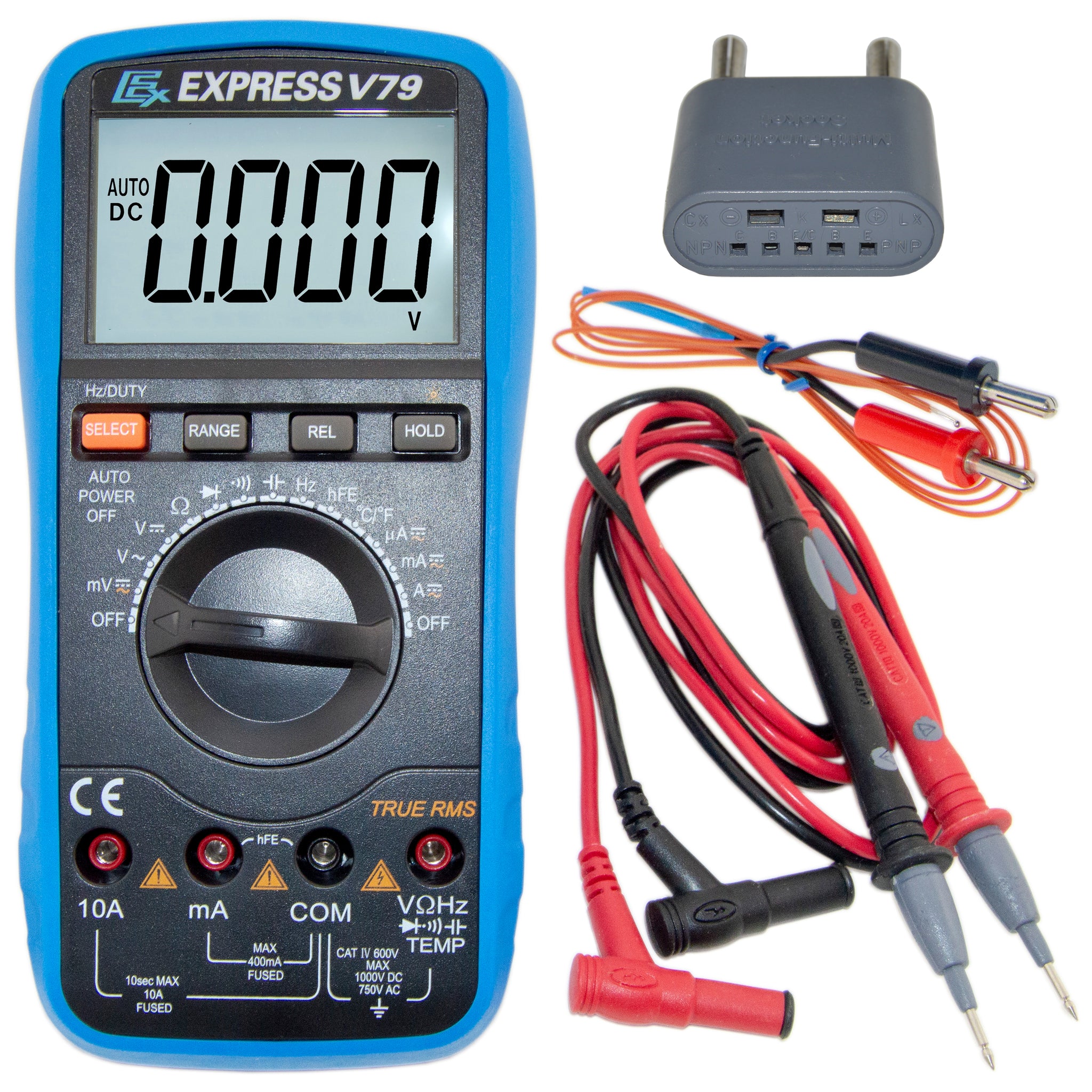

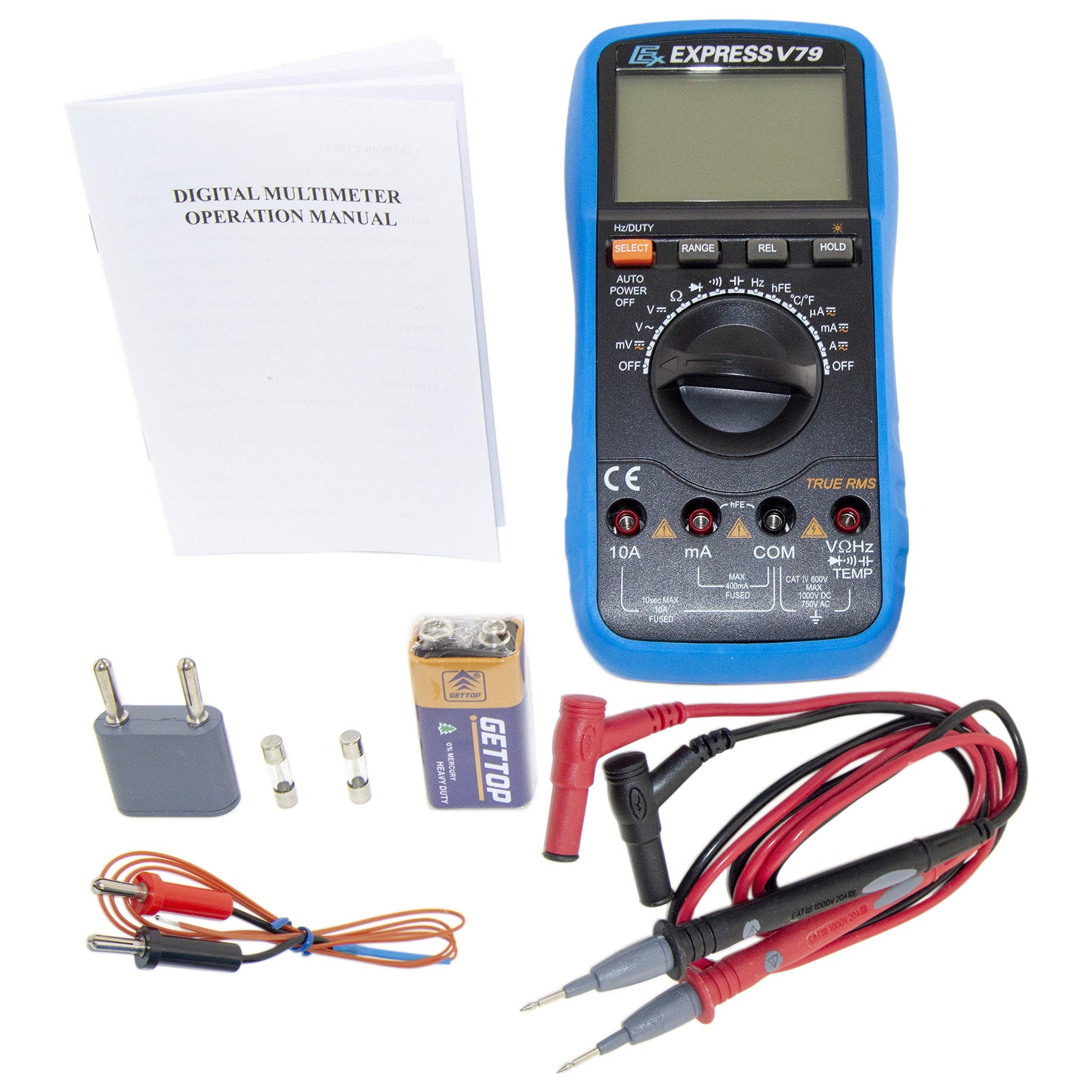

- Includes test leads, thermocouple, holster, 9v battery, and operation manual
The V79 is a True RMS full featured digital multimeter as well as a thermometer. This is an auto ranging meter that will give a reading when you plug it in at any time. Features a 3 3/4 digit display that reads 3999, giving you a much higher accuracy than a meter with a reading at 1999 only. The backlight on the LCD provides convenience when operating in the dark and the auto power off feature helps preserve the battery. Includes a pair of test leads and a set of thermocouples. The V79 is powered by a 9 V battery (included). You can use this meter to measure AC/DC voltage and current, resistance, capacitance, frequency and temperature both in Fahrenheit and Celsius.
Features:
True RMS
3 3/4 digit display
DCV: 0-400m-4-40-400-(±0.5%)-1kV(±1.0%)
ACV: 0--400mV(±1.5%)-4-40-400V(±0.8%)-750V±1.5%
DCA: 0-400uA-4000uA-40m(±1.2%)-10A(±2.0%)
ACA(True RMS): 0-400uA-4000uA-40mA-400mA(±1.5%)-10A(±2.0%)
Resistance: 0-400-4k-40k-400k-4M(±0.8%)-40M(±1.2%)ohm
CAP: 0-20nF-100nF-10uF-100uF(±3.5%)1mF/10mF/100mF (±5.0%)
Frequency: 0-100Hz-1000Hz-10KHz-1MHz-30MHz(±0.5%)
Temperature: C: -40 ºC - 1000ºC
Transistor and Diode test Audible continuity:< 70 ohm
Backlight for use in dark
High quality test leads included.
Checks Transistor hFE
Temperature Measurement in F or C using the included thermocouple
Data Hold and Relative Measurement
Auto Power Off for power saving
