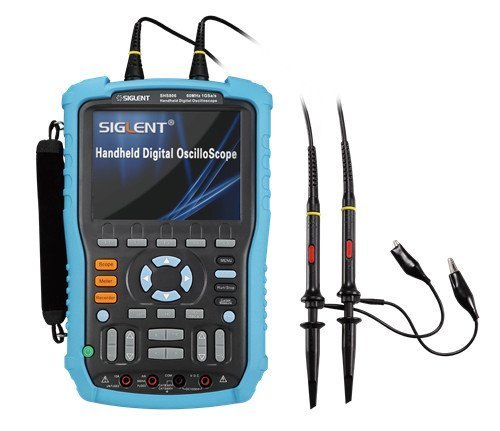

Handheld Oscilloscope, 60MHz /100MHz/ 150MHz/ 200MHz, 7M Internal Storage, 18-hrs Recording Time

• Bandwidth: 60MHz ,100MHz, 150MHz, 200MHz
• Real-time sampling rate: 1G Sa/s
• Equivalent sampling rate: 50G Sa/s
• 7M internal storage, up to18 hours recording time
• Record, replay and zoom function supported

Oscilloscope Specifications: Model: SHS806 Bandwidth: 60MHz Rise time:=5.8ns Real time sampling rate: 1GSa/s Equivalent sampling rate: 50GSa/s Vertical sensitivity: 2mV-100V/div Time base range: 5ns - 50s/div Scan:100ms-50s/div Memory depth: 2MKpts Triggering: Edge, Pulse, Video, Slope ,Alternative Vertical resolution: 8bit Triggering frequency counter: 6 digit Recorder: 7M points Trend plot: 800K/CH Interface: USB Device, USB Host Math operation: +, -, * , /, FFT Multimeter Specification Display: 6000 Counts DC Voltage: 60mv(±1%±15digit accuracy), 60mv-1000v(±1%±5digit accuracy) AC Voltage: 60mv(±1%±15digit accuracy), 60mv-750v(±1%±5digit accuracy) DC Current: 60mA(±1%±15digit accuracy), 6A-10A(±1%±5digit accuracy) AC Current: 60mA(±1%±15digit accuracy), 6A-10A(±1%±5digit accuracy) Capacitance: 40nF(±3%±10digit accuracy); 400nF-400µF(±4%±5digit accuracy) Continuity: <50O Buzzer soundsDiode: 0V-2V Trend plot: 1.2M points Measuring mode: Manual/Auto

Product Weight: 1.45 LB
