• 100kHz to 150MHz on six bands
• Output to 450 MHz on harmonics
• AM modulation, Internal or External, 0% to 100%
• Frequency monitor output for external frequency counter
• Step and variable attenuation to -40db

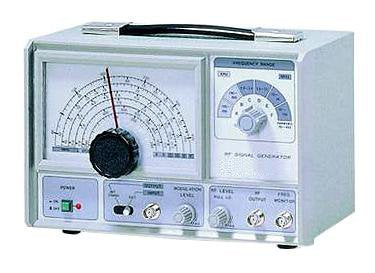

The SG4160 is a low cost rf signal generator covering the range 100kHz to 150MHz in 6 decade bands. The unit is ideal for checking and aligning IF circuits and tuners in AM, FM and TV equipment. Internal and external amplitude modulation is available as well as a facility for checking crystals in the 1 to 15MHz range. The output is controlled by a high and low switch as well as a fine adjust control.
Frequency range:
A 100kHz – 320kHz
B 300kHz – 1100kHz
C 1MHz – 3.3MHz
D 3.0MHz – 11MHz
E 10MHz – 35MHz
F 32MHz – 150MHz
(upto 450 MHz on 3rd harmonics)
Frequency accuracy +/-5%
Rf output Approx 100mVrms (to 35MHz no load)
Output control High/low switch plus fine adjust
Modulation Internal 1kHz (AM) 30% approx
External 50Hz – 20kHz at < 1Vrms input
Audio output 1kHz >2Vrms
Crystal oscillator For 1 – 15MHz crystals in type HC-6U holder
Power requirements 115/230V ac, 50/60Hz approx 3VA
Size 150 x 250 x 130mm
Weight Approx 2.5kg
• Output to 450 MHz on harmonics
• AM modulation, Internal or External, 0% to 100%
• Frequency monitor output for external frequency counter
• Step and variable attenuation to -40db
The SG4160 is a low cost rf signal generator covering the range 100kHz to 150MHz in 6 decade bands. The unit is ideal for checking and aligning IF circuits and tuners in AM, FM and TV equipment. Internal and external amplitude modulation is available as well as a facility for checking crystals in the 1 to 15MHz range. The output is controlled by a high and low switch as well as a fine adjust control.
Frequency range:
A 100kHz – 320kHz
B 300kHz – 1100kHz
C 1MHz – 3.3MHz
D 3.0MHz – 11MHz
E 10MHz – 35MHz
F 32MHz – 150MHz
(upto 450 MHz on 3rd harmonics)
Frequency accuracy +/-5%
Rf output Approx 100mVrms (to 35MHz no load)
Output control High/low switch plus fine adjust
Modulation Internal 1kHz (AM) 30% approx
External 50Hz – 20kHz at < 1Vrms input
Audio output 1kHz >2Vrms
Crystal oscillator For 1 – 15MHz crystals in type HC-6U holder
Power requirements 115/230V ac, 50/60Hz approx 3VA
Size 150 x 250 x 130mm
Weight Approx 2.5kg
