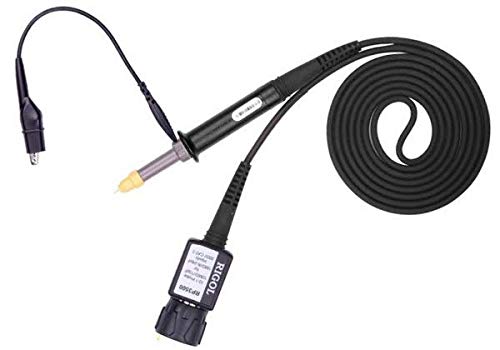

Rigol RP3500A Probes/Leads/Cables

• 500 MHz Passive Probe
• Bandwidth: DC ~ 500MHz
• Damping factor: 10: 1
• Input resistance: 10M +- 2%
• Input capacitance: 13pF +- 3pF

Rigol RP3500A Oscilloscope 500 MHz Passive High Resistance Probe Accessory & Features RP3500 is provided with several accessories designed to make probing and measurement simpler. Please take a moment to familiarize yourself with these accessories and their users. Passive high impedance probe DC-500 MHz, Attenuation Ratio 10x maximum input voltage 300 VRMS CAT II, the input impedance of 10 megohms / 13pF. Rigol oscilloscope series DS1000B / D / E / CA / Z / ZS, DS2000, DS / MSO4000, DS6000 For digital oscilloscopes, the signal under test needs to be connected to the measurement channel via various oscilloscope probes or 50 ohm cables.The Probing is very important to making quality measurements. If the probe performance is not adequate or if you did not select the proper probe for your application, you will see distorted or misleading signals on your oscilloscope. There are two kinds of probes, one is passive probe, another one is active probe. active probe requires power while passive probe does not. For general-purpose measurements(600 MHz), active probes are the way to go. They cost more than passive probe and their input voltage is limited, but because of their significantly lower capacitive loading, they give you more accurate insight into fast signals.

Product Dimensions (L x W x H): 203 x 244 x 19 MM

Product Weight: 1.2 LB
