- Switching power supply unit provides a constant source of DC voltage and current for powering and testing electronic devices
- LCD shows voltage and current reading simultaneously and is readable in low light
- Voltage, current, and power limits provide greater control over output
- %+ and %- modes modify the output by a preset percentage
- RS-232C interface connects to a computer for remote control with SCPI commands

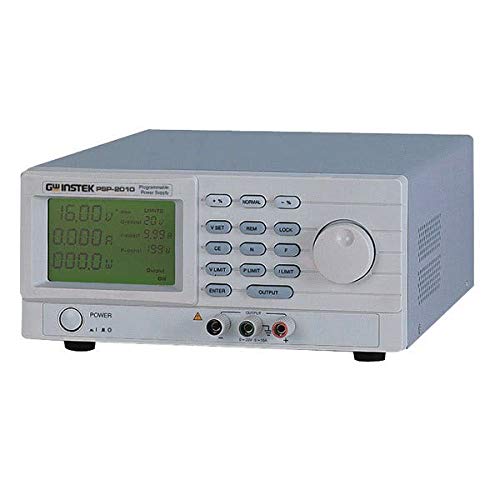

This Instek PSP series single-output programmable switching DC power supply unit provides a constant source of DC voltage and current for powering and testing electronic devices. The power supply unit (PSU) has one output that supplies adjustable voltage and current for a variety of applications. The LCD shows the voltage and current reading simultaneously along with the setting parameters, and the display is readable in low light. The PSU has an RS-232C interface for connecting to a computer (cables sold separately). Software download is included for remote control and testing applications. A lock feature disables the front-panel keypad to help prevent accidental input. A power cord with a three-prong plug is included for connecting the PSU to a grounded outlet, and test leads are included. A built-in cooling fan with three speeds helps prevent overheating. Overcurrent and overvoltage protection and an output on/off switch help prevent damage to the PSU and the device under test. This Instek PSP series power supply unit is offered with a choice of rating current and voltage and resolution and program accuracy.
Specifications
| Number of outputs | 1 |
| Load regulation | Voltage: Less than or equal to 10mV (millivolts); Current: Less than or equal to 5mA (milliamp) |
| Line regulation | Less than or equal to 0.05% of current reading |
| Ripple | Voltage: Less than or equal to 20mV; Current: Less than or equal to 10mA |
| Power requirements | 115 or 230VAC + or – 10% at 50 to 60 Hz |
| Standards met | European Conformity (CE) marking |
| Weight | 4kg |
| Dimensions | 100 x 225 x 305mm (H x W x D) |
