- 0-60V; 0-3A
- +5V @ 1A fixed
- Two digital panel meters (LED)
- Constant voltage and current operation
- Output switch off function (output standby)
- Overload and reverse polarity protection
- High power density
Specifications:
Output Voltage (CV): 0~60V, 5V (Fixed)
Output Current (CC): 0~3A, 1A (Fixed)
Ripple Rejection: 0.6 mVrms
Line Regulation: ≤0.02%+2mV
Load Regulation: ≤0.02%+2mV
Voltage Resolution: 0.1V
Current Resolution: 0.01A
5V / 1A Fix Output Volt Accuracy: ±1％
5V / 1A Fix Output Ripple: ≤2mVrms
Transient Recovery Time: 100µS (50% Load Charge, Minimum Load 0.5A)
Voltage Readout: LED Display
Current Readout: LED Display
Operating Environment: 0~40℃ ,80%R.H.
AC Power Source: AC 110/220v ± 10% , 50/60Hz

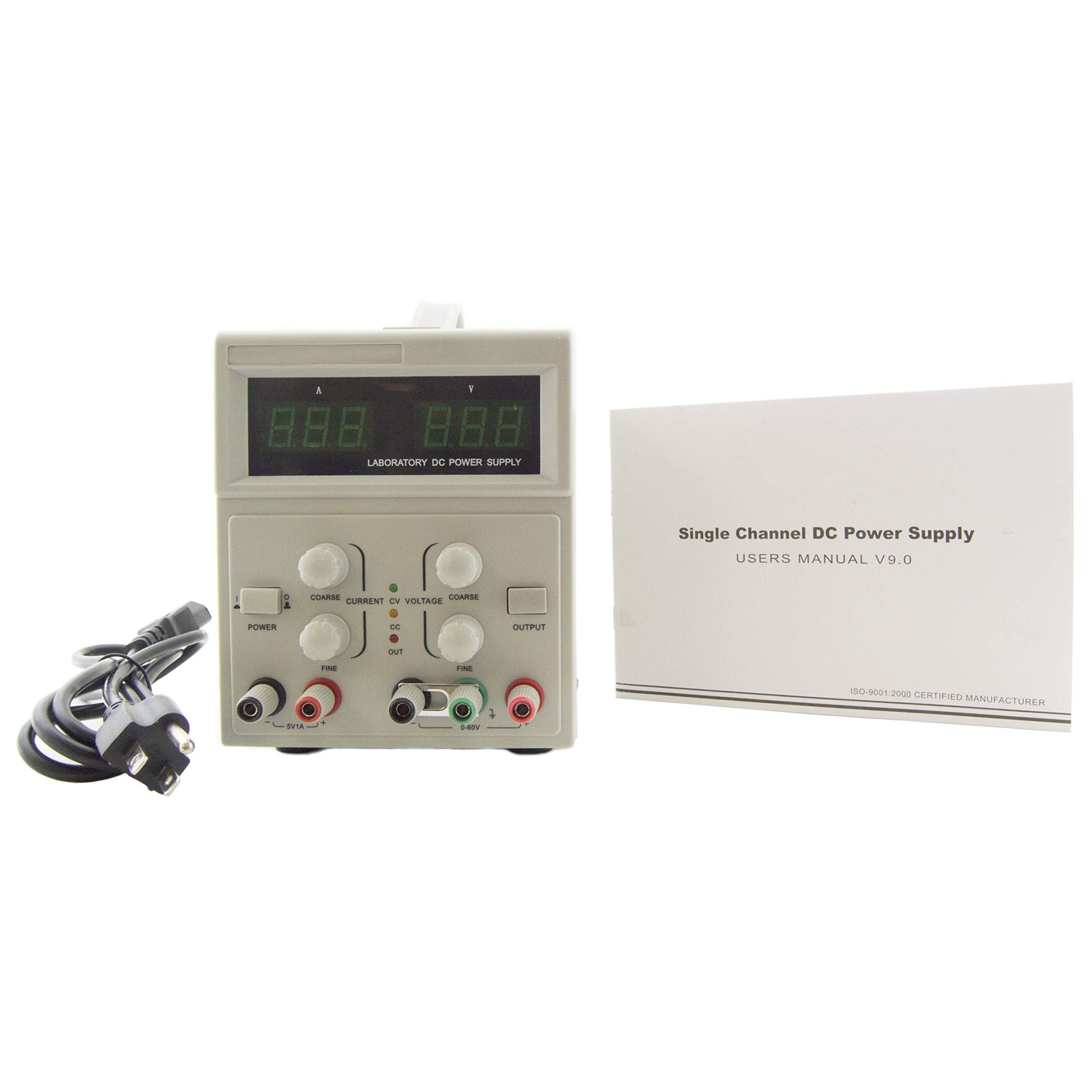

Accessories: Power Cord, Manual
Dimensions: (W*D*H mm) 130×330×165
Weight (KG): 7.5
Note: This RSR product may carry either a Vizatek or Matrix branding.
