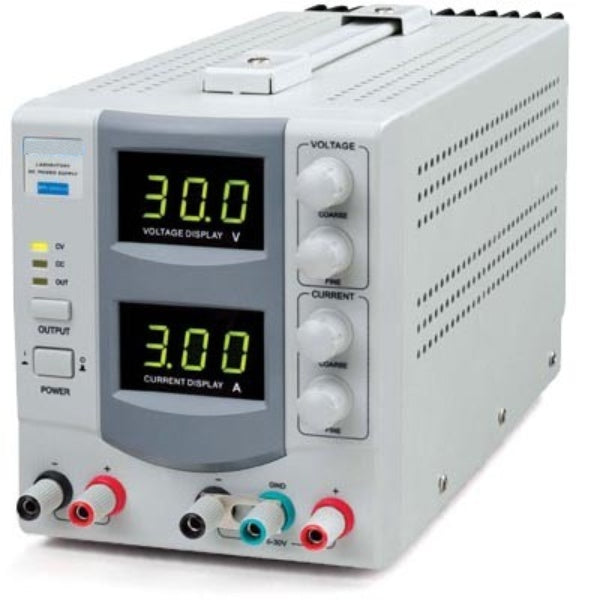

- 0-30V; 0-5A
- +5V @ 1A fixed
- Two digital panel meters (LED)
- Constant voltage and current operation
- Output switch off function (output standby)
-Two digital panel meters (LED)
-Constant voltage and current operation
-Output switch off function (output standby)
-Overload and reverse polarity protection
-High power density
Specifications:
Output Voltage (CV): 0~30V, 5V (Fixed)
Output Current (CC): 0~5A, 1A (Fixed)
Ripple Rejection: 0.5 mVrms
Line Regulation: ≤0.01%+2mV
Load Regulation: ≤0.01%+2mV
Voltage Resolution: 0.1V
Current Resolution: 0.01A
5V / 1A Fix Output Volt Accuracy: ±1%
5V / 1A Fix Output Ripple: ≤2mVrms
Transient Recovery Time: 100µS (50% Load Charge, Minimum Load 0.5A)
Voltage Readout: LED Display
Current Readout: LED Display
Operating Environment: 0~40℃, 80%R.H.
AC Power Source: AC 110/220v ± 10% , 50/60Hz
Accessories: Input Power Cord, Manual , Output Cable
Dimensions: (W*D*H mm) 130×330×165
Weight (KG): 7.2
