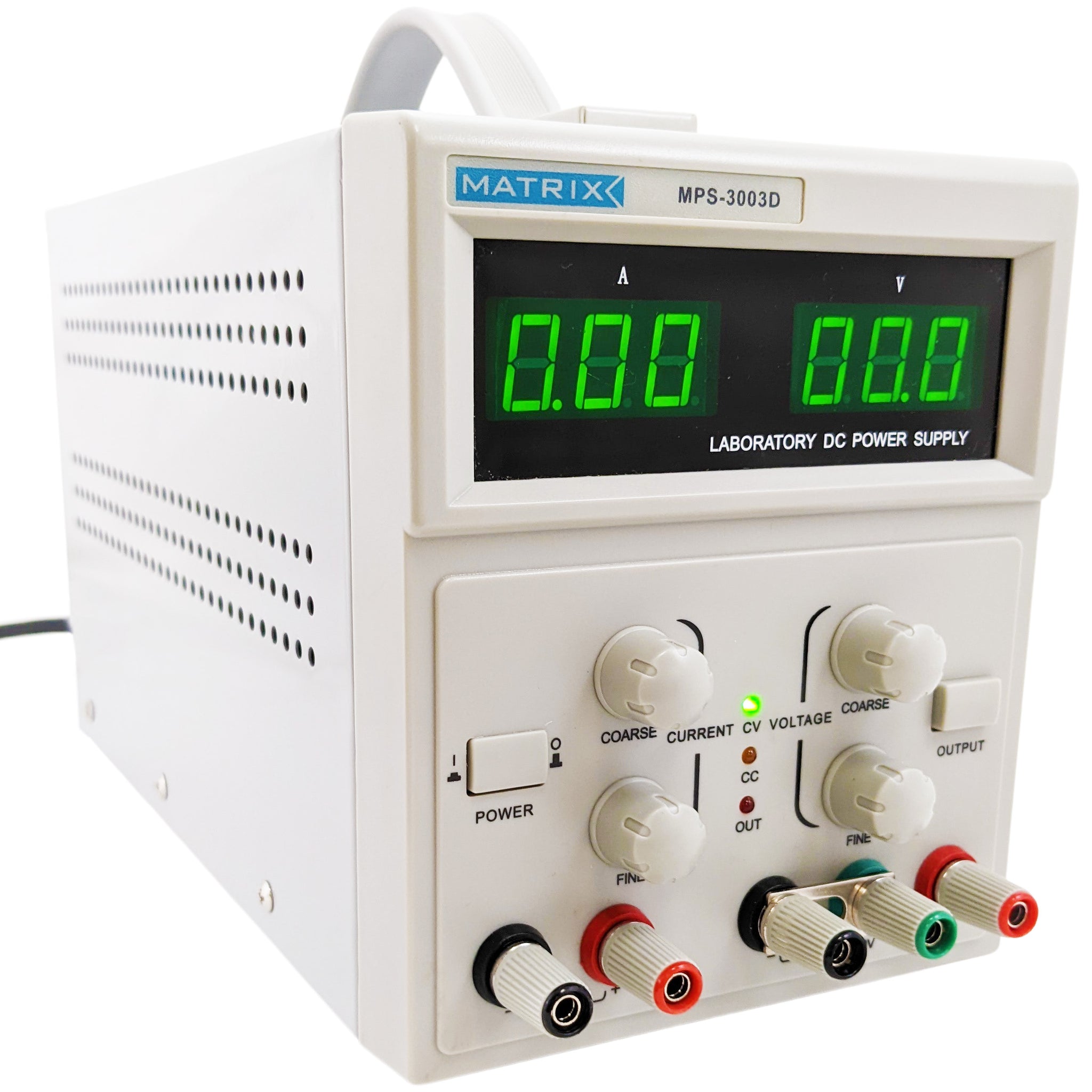

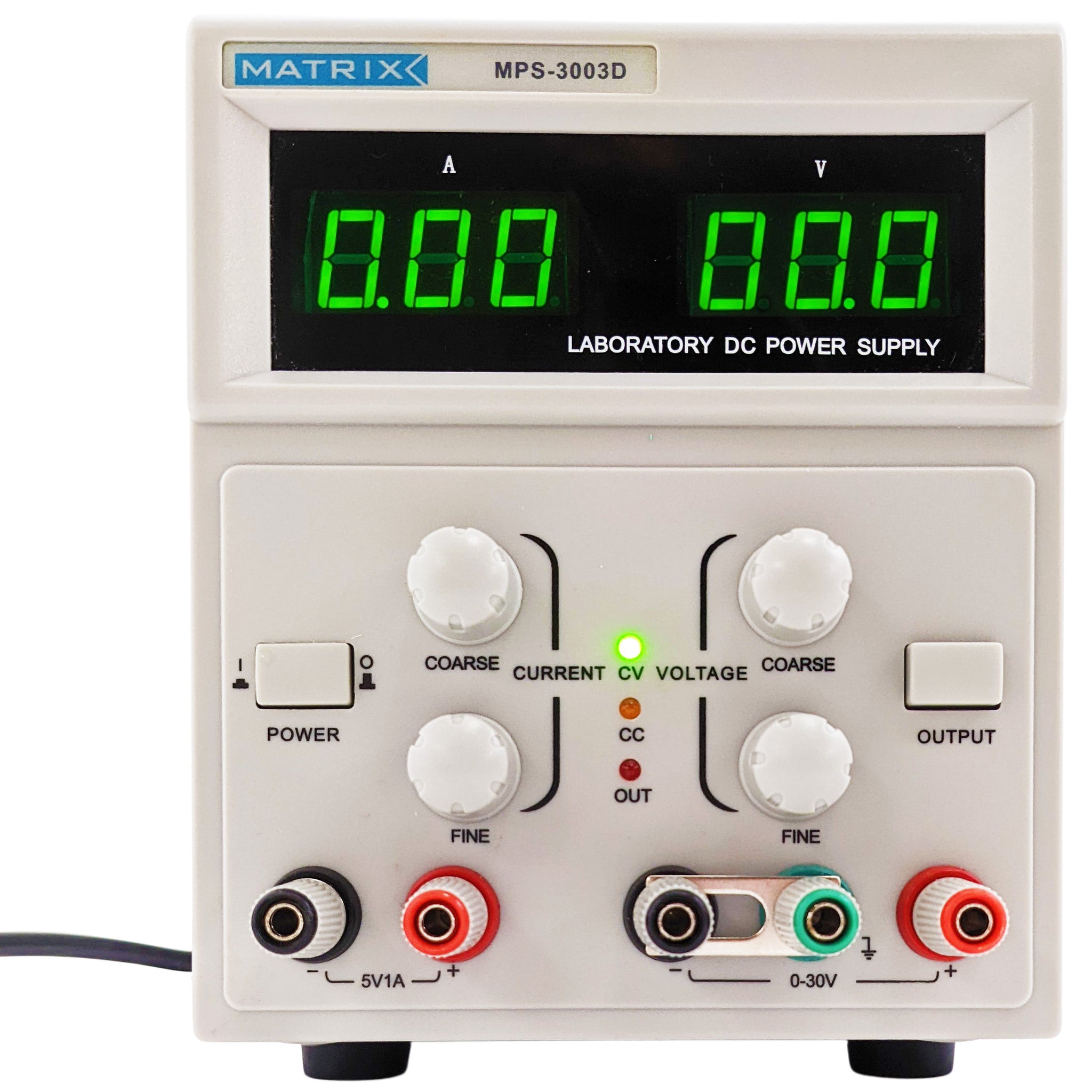

Dual Output DC Power Supply, 0-30V, 0-3A, 5V Fixed @ 1A

• 0-30V; 0-3A
• +5V @ 1A fixed
• Two digital panel meters (LED)
• Constant voltage and current operation
• Output switch off function (output standby)
• Overload and reverse polarity protection
• High power density

Specifications:
Output Voltage (CV): 0~30V, 5V (Fixed)
Output Current (CC): 0~3A, 1A (Fixed)
Ripple Rejection: 0.3 mVrms
Line Regulation: ≤0.005%+2mV
Load Regulation: ≤0.005%+2mV
Voltage Resolution: 0.1V
Current Resolution: 0.01A
5V / 1A Fix Output Volt Accuracy: ±1%
5V / 1A Fix Output Ripple: ≤2mVrms
Transient Recovery Time: 100µS (50% Load Charge, Minimum Load 0.5A)
Voltage Readout: LED Display
Current Readout: LED Display
Operating Environment: 0~40℃, 80% R.H.
AC Power Source: AC 110/220v ± 10% , 50/60Hz
Accessories: Input Power Cord, Manual , Output Cable
Dimensions: (W*D*H mm) 310×130×165
Weight (KG): 5.6
