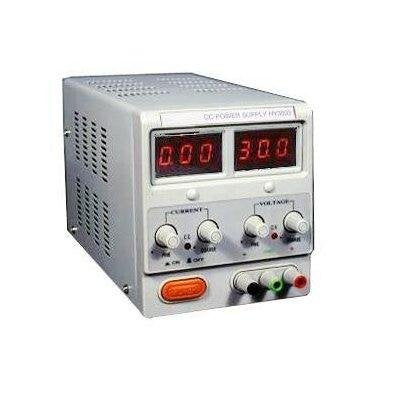

Variable DC Power Supply 0-50V 0-3A with LED Displays for Current and Voltage

• Adjustable voltage (0-50V).
• Adjustable current (0-3A).
• LED displays for both current and voltage.
• Constant voltage and current operation.
• Load Effect: .01% +/- 5mv

Variable DC Power Supply 0-50V 0-3A with LED Display:
Adjustable voltage (0-50V).
Adjustable current (0-3A).
LED displays for both current and voltage.
Constant voltage and current operation.
Load Effect: .01% +/- 5mv

Dimensions: 11" x 6.3" x 5.3"
Technical Specifications:
Input Voltage: 110V AC ± 10% 60Hz ± 2% + 1mA
Power Effect: CV ? 0.01% + 1mV CC ? 0.2% + 1mA
Overload Effect:
CV ? 0.01% + 3mV (1 ? 3A) CC ? 0.2% + 3mA (I ? 3A)
CV ? 0.01% + 5mV (I>3A) CC ? 0.2% + 5mA (I>3A)
Waves and Noises:
CV ? 0.5mVr.m.s (I ? 3A) CC ? 3mAr.m.s (I ? 3A)
CV ? 1.0mVr.m.s (I>3A) CC ? 6mAr.m.s (I>3A)
Protection: Current restricted and short-circuit protection
Voltage Indication Accuracy: LED/LCD ± 1% + 2 digits
Current Indication Accuracy: LED/LCD ± 2% + 2 digits
Environment: 0 ~ +40°C; relative humidity: <90%

Product Weight: 0.88 LB
