- Voltage Adjustable 0-30V
- Current adjustable 0-5 Amp
- LED displays for both current and voltage
- Constant voltage and constant current operations
- Auto CV/CC switch
- Coarse and Fine control for voltage and current
- Over current protection, Over voltage protection and Over temperature protection

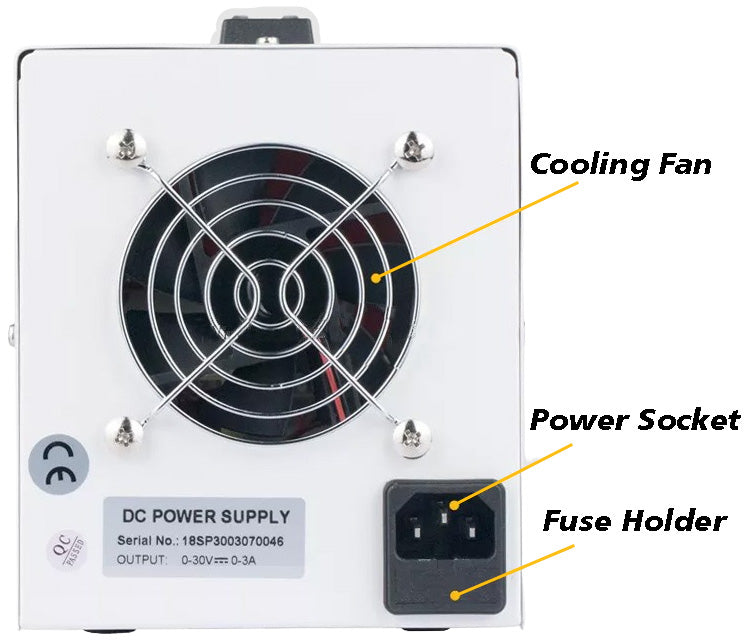

- Intelligent cooling fan
- CE Certified

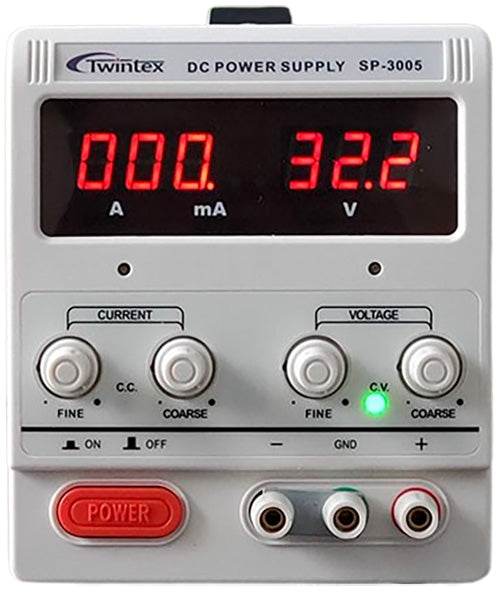

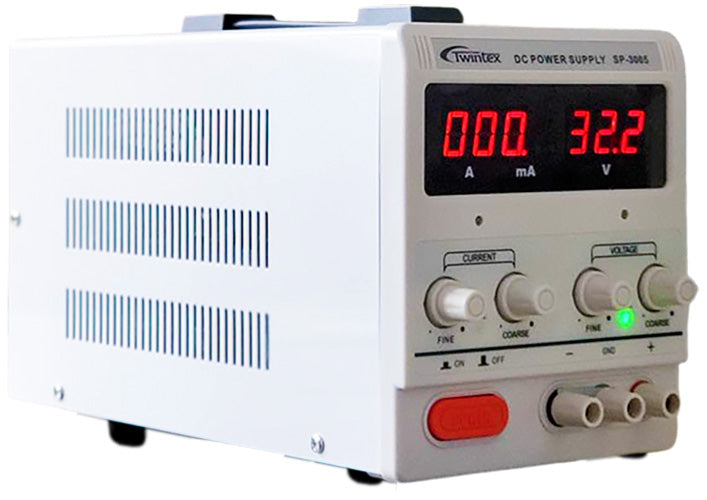

The SP-3005 is a variable DC power supply that has an adjustable output of 0-30V DC and 0-3A. The unit is equipped with coarse and fine controls for adjusting the voltage and current outputs, making it extremely easy to set the output to your desired level. It features LED displays that provide accurate readouts for the voltage and current values. CE certified.
Specifications
|
Constant voltage operation |
|
|
Line regulation |
≤0.05%+1mV |
|
Load regulation |
≤0.1%+5mV |
|
Ripple & Noise |
≤10mVrms |
|
Constant current operation |
|
|
Line regulation |
≤0.05%+10mA |
|
Load regulation |
≤0.1%+10mA |
|
Ripple & Noise |
≤20mArms |
|
Display |
|
|
Voltmeter |
3 digits LED display |
|
Ammeter |
3 digits LED display |
|
Resolution |
100mV/10mA |
|
Accuracy |
±(1% reading+1 digit) |
|
General |
|
|
Protection |
Over current protection, fixed 105% of rated current. Over voltage protection, fixed 105% of rated voltage. Over temperature protection: when internal temperature reaches 65℃±5℃, OTP is activated and the output will be shut down. |
|
Operating environment |
0℃~40℃, ≤80%RH |
|
Storage environment |
-10℃~70℃, ≤70%RH |
|
Power source |
AC115V ±10%, 60Hz |
|
Accessories |
Power cord x1, Operation manual x1 |
|
Dimension |
5.90" L x 11.02" W x 5.51" H |
|
Weight |
Approx. 4.4 lbs |
