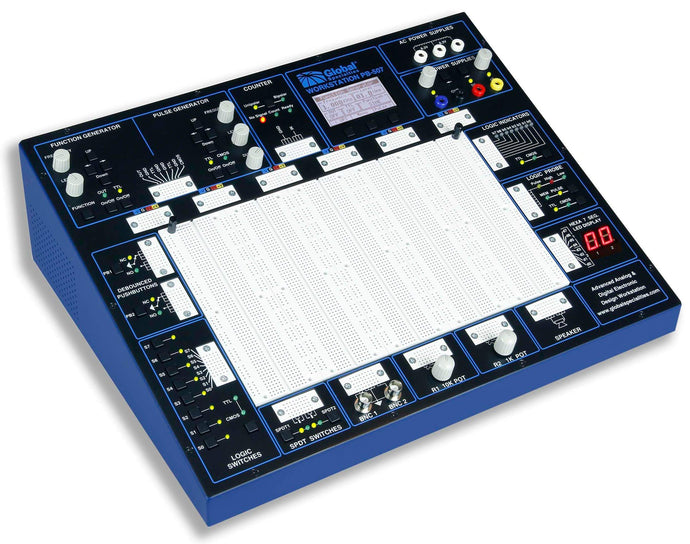

Advanced Analog & Digital Electronic Design Trainer

01PB507
$1,199.99
$1,199.99
Sold out
Shipping calculated at checkout.
  • LCD displays the settings from each active module
  • USB connection enabling viewing and controlling from a PC
  • Choose your power source: 6.3 /12.6 VAC power, 5 VDC or variable ±20 VDC
  • Draw power from banana plug connections or the tie-point power supplies above each breadboard bus strip
  • Powerful 1 MHz bandwith function generator with sine, triangle, and square wave output
The PB-507 Advanced Analog & Digital Electronic Design Trainer, is a powerful, versatile tool for circuit designers, engineers, technicians, students, and hobbyists. All digital controls, USB port, and a wide choice of built-in circuit accessories allow rapid and accurate construction of virtually any type of analog or digital circuit.

Product Dimensions (L x W x H): 564 x 13.5 x 239 inches

Product Weight: 0.25 LB
