- 3½ digit LCD display, approximately 0.82" digit height

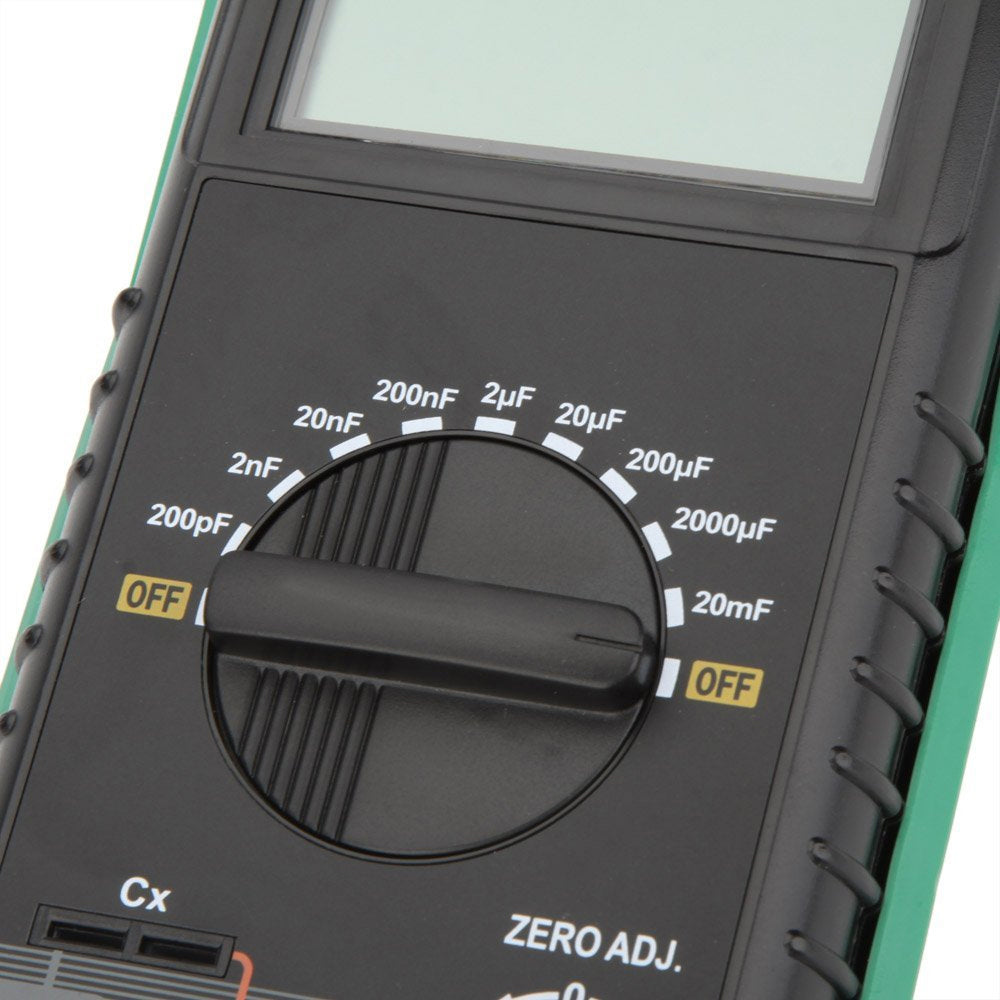

- Nine ranges from 200pF to 20mF (20,000µF)

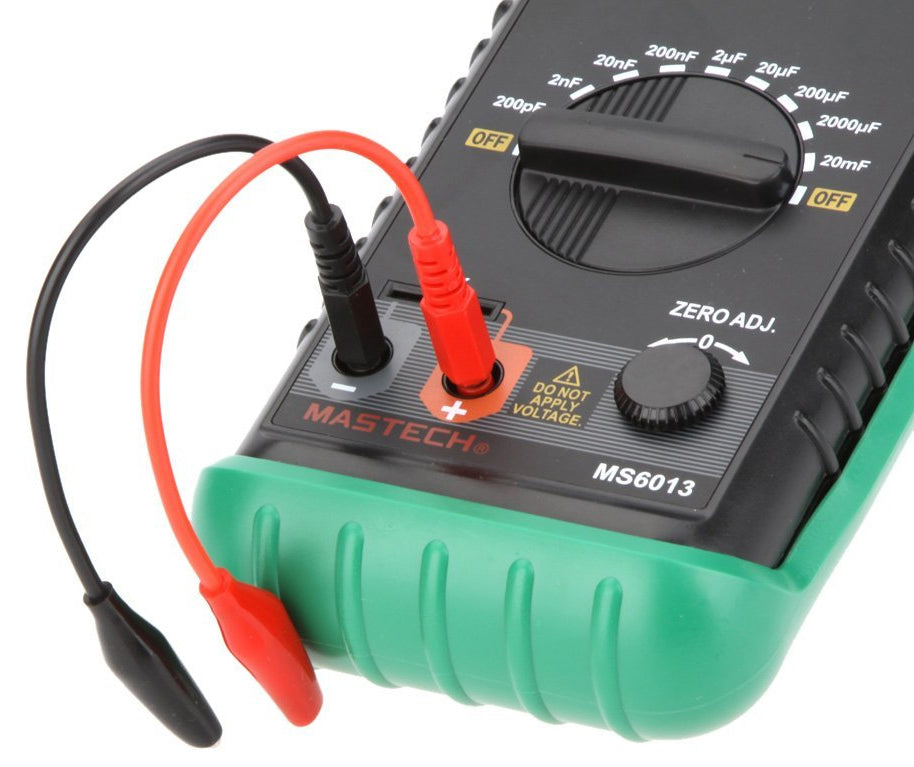

- External zero adjustment knob
- Dual-Slope integration A/D converter
- Overload indication of "1"
- Size: 3.6" x 1.3" x 7.4"
- Weight: 8.46 oz. (including battery)

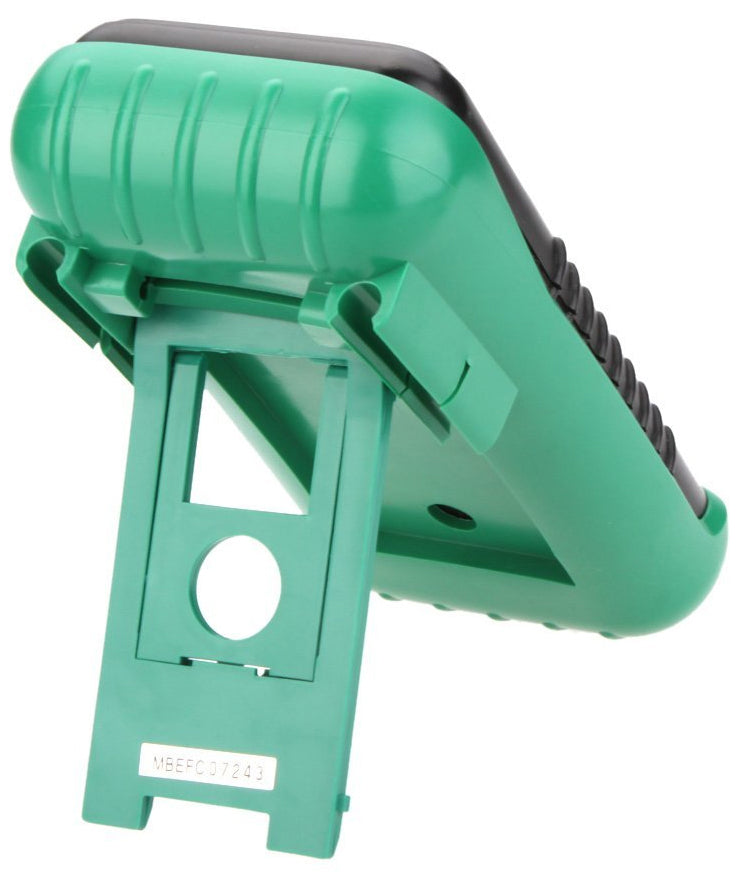

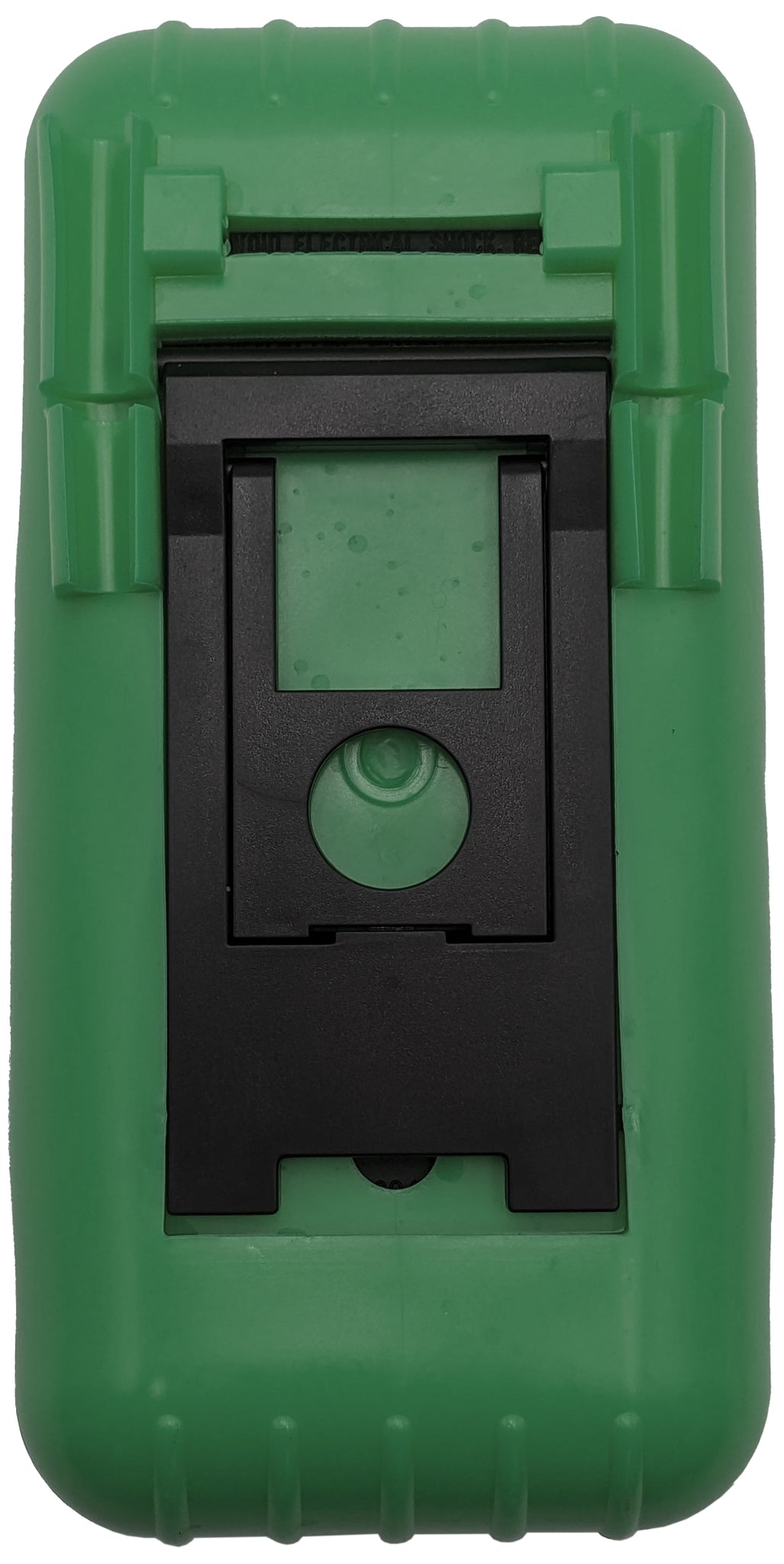

- NOTE: Holster color may vary

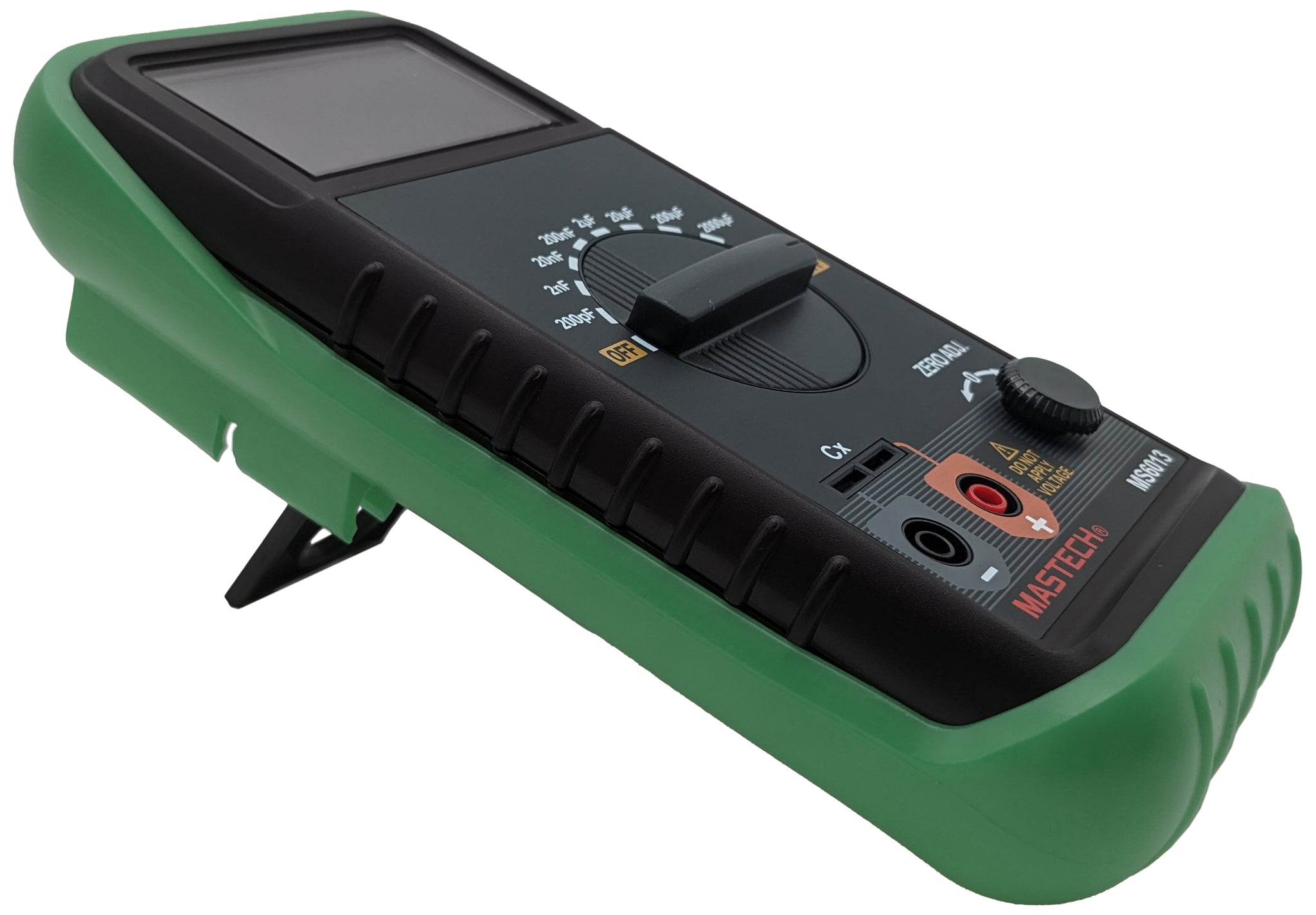

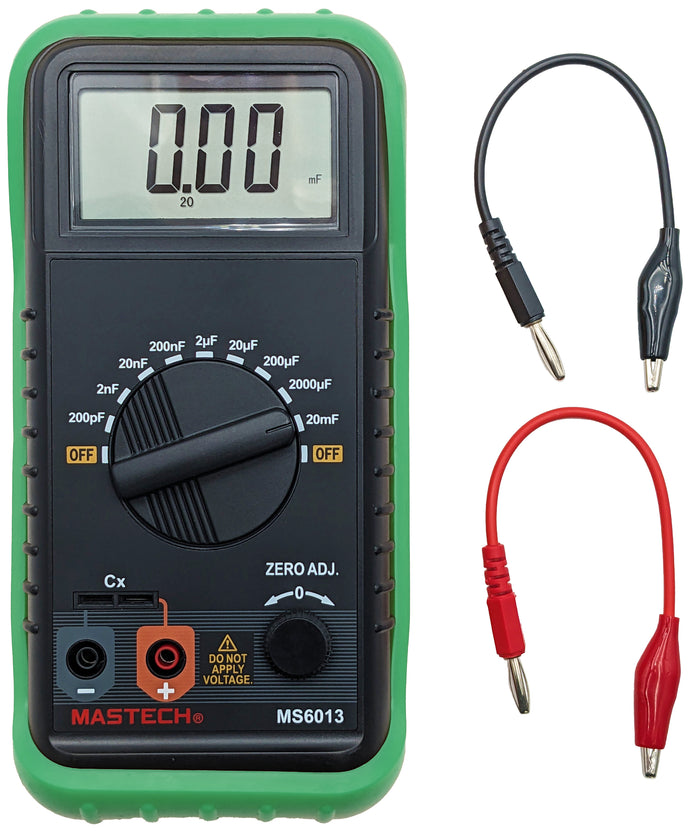

This digital capacitance meter gives a direct reading of capacitance on a 3½ digits LCD display. Nine ranges give precision readings from 200pF to 20mF, which includes virtually all capacitors used in electronic engineering laboratories, production, service shops, and schools. Its battery operation, light weight, and small size make it a truly portable instrument.
Electrical Specifications:
| Range | Resolution | Accuracy | Test Frequency |
|---|---|---|---|
| 200pF | 0.1pF | ±0.5% of full scale ±1 digit | 800Hz |
| 2nF | 1pF | ±0.5% of full scale ±1 digit | 800Hz |
| 20nF | 10pF | ±0.5% of full scale ±1 digit | 800Hz |
| 200nF | 100pF | ±0.5% of full scale ±1 digit | 800Hz |
| 2µF | 1000pF | ±0.5% of full scale ±1 digit | 800Hz |
| 20µF | 0.01µF | ±0.5% of full scale ±1 digit | 800Hz |
| 200µF | 0.1µF | ±0.5% of full scale ±1 digit | 8Hz |
| 20000µF | 1µF | ±1.0% of full scale ±1 digit | 8Hz |
| 20mF | 10µF | ±2.0% of full scale ±2 digits | 8Hz |
