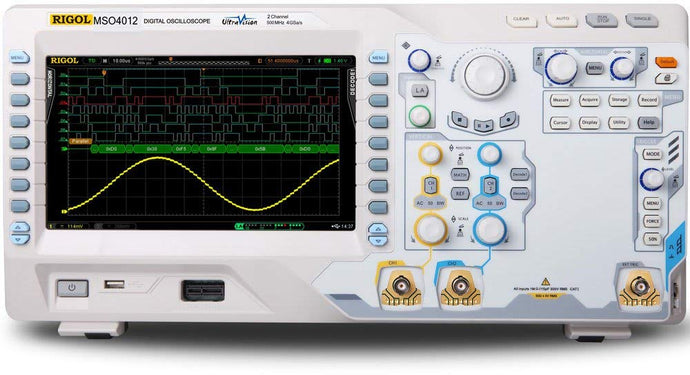

Rigol MSO4012 Mixed Signal Oscilloscopes - Channels: 2, Bandwidth: 100 Mhz

• 100MHz ,4GSa/s, 2CH Mixed Signal Oscilloscope, 4GS/s, 140Mpoint memory
• 100 MHz Bandwidth
• 2 Channels + 16 for Logic Analyzer
• Real-time sample rate: analog channel up to 4 GSa/s, digital channel up to 1 GSa/s
• Memory depth: analog channel up to 140 Mpts, digital channel up to 28 Mpts

100 MHz, 4 GSa/s, 140Mpts, 2+16 Channel Digital OscilloscopeRigol MS4000 Series Mixed Signal and Digital OscilloscopesxUp to 4GSa/s Max Sample RateProvides fine resolution and detail in high speed signals. Never miss a transition or glitch with up to 4 GSa/sec sampling. Sample Rate describes thefrequency at which the instrument samples the data. Higher the sample rate provides better resolution and finer detail of thesignal being captured.140Mpts Standard Record LengthLong acquisitions at high sample rates help debug elusive problems in complex digital streams. Record length describes the numberof points that can be captured and stored. Generally speaking larger record length provides for longer captures.The time duration is directly related to the sample rate with higher sample rates consuming more memory resulting in shorter time captureUp to 110,000 wfms/s Waveform Capture rateMinimize scope 'dead time' between trigger events and increases observations of random and sporadic events. Waveform Capture Rate speaks to how many triggered events can be captured and that data integrated into the displayed waveform per second. The Waveform Capture Rate times the width of the display in time equates to the on-time of the instrument. The rest of the time is dead-time when the instrument could miss a signal or event.16 Digital Channels (MSO Models)Time correlated views between analog and digital channel speeds debug of embedded designs.Mixed Signal Oscilloscopes(MSO's) allow users to not only look at the analog behavior of up to 4 channels but also trigger, capture, and analyze the behavior of up to 16 digital channels at the same time.Serial Triggering and Analysis OptionsSpeeds analysis and debug of your I2C, RS232 and SPI designs.Serial Trigger allows the user to trigger the oscilloscope based on a specific pattern or word found in a serial data stream. Serial Decode allows th

Product Dimensions (L x W x H): 584 x 381 x 254 MM

Product Weight: 1.5 LB
