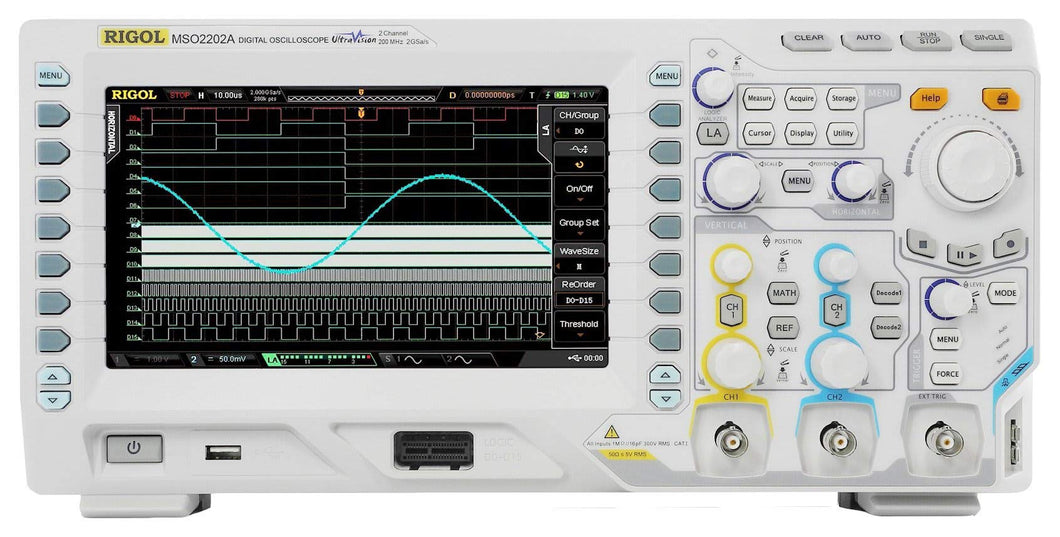

Rigol MSO2202A-S - Channels: 2, Bandwidth: 200 Mhz

• 200 MHz, 2 Channel Mixed Signal Oscilloscope with 2 GSa/sec and 14 Mpts memory standard as well as low noise front end. 50 Ohm input and 2 ch source embedded
• 200MHz Bandwidth, 16 Digital Channel MSO with sources
• 2 Analog Channels
• 2.000 ns/div to 1.000 ks/div Time Base Scale
• Calculated Rise Time: 1.8ns

Mixed Signal Oscilloscope 200MHz,2+16 MSO + 2 CH SourceRigol MSO/DS2000A Series Mixed Signal and Digital OscilloscopesxLow Noise floor with wide vertical range (500uV/div ~ 10V/div)More easily spot and capture small signals and glitches with the lower noise front end on the 2000A Series.Waveform Record and PlaybackDebug occasional and random glitches using our fast capture, playback, and onboard analysis capabilities.16 Digital Channels (MSO Models)Time correlated views between analog and digital channel speeds debug of embedded designs.UltraVision TechnologyAdvanced display and analysis capabilities combine with deep memory and high waveform update rate in RIGOL's UltraVision oscilloscope technology.Integrated 2 Channel full function 25MHz generatorDebug and emulate signals all in one instrument.MSO/DS2000A Series Digital OscilloscopeMSO/DS2000A Series is the new mainstream digital scope to meet the customer's applications with its innovative technology. MSO2000A Series has 2+16channels, target for the embedded design and test market with its industry leading specifications, powerful trigger functions and broad analysis capabilities. Innovative UltraVision Technology(Analog Channel) Deeper Memory Depth (Up to 56Mpts) Higher Waveform Capture Rate (Up to 50,000 wfms/s) Realtime Waveform Record,Replay & Analysis (Up to 65,000 frames) Multi-level Intensity Grading Display (Up to 256 Levels)Features and Benefits Wider Vertical rangeand Lower noise floor x Wider Vertical range(500uV/div~10V/div),Lower noise floor, Better for small signal capturing Built-in 2CH Source (MSO/DS2000A-S) x Built-in 2CH Source (MSO/DS2000A-S)

Product Dimensions (L x W x H): 440 x 381 x 258 MM

Product Weight: 1 LB
