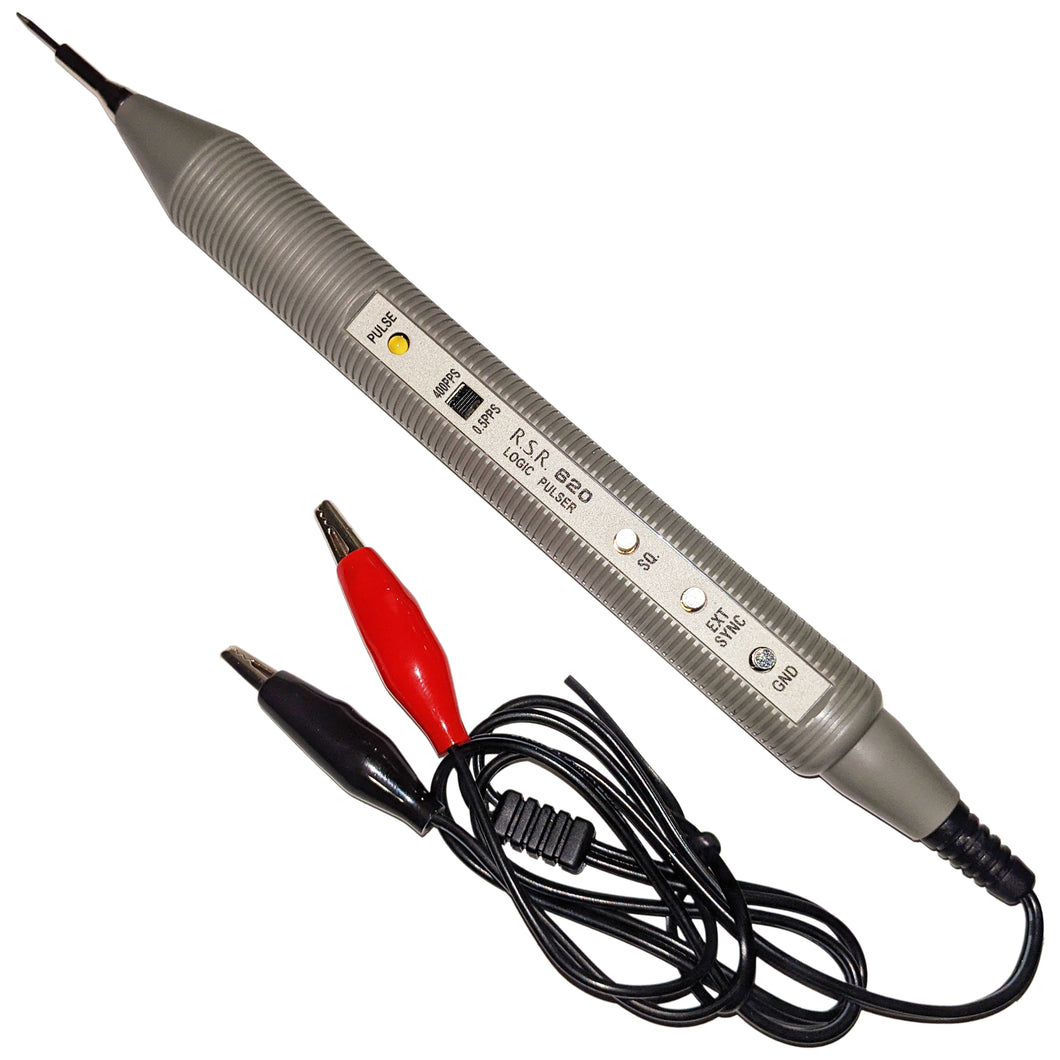

Circuit Powered Logic Pulser - Switchable Output: .5 or 400 Hz at 100 mA

• Circuit powered logic pulser — an invaluable tool for the troubleshooting and inspection of circuits
• Injects a signal directly into a logic circuit without removing components
• Features a switchable output of 0.5 or 400 Hz at 100 mA

This circuit powered pulser injects a signal directly into a logic circuit without the need to remove components. Suitable for troubleshooting and inspecting circuits. Features a switchable output of .5 or 400 Hz at 100 mA.

Specifications:
Sync Input Impedance ..........................1MΩ
Pulse Rate .............................................. 0.5 / 400 Hz
Pulse Width ........................................... 10μs
Output Current ......................................100mA sink/source
Square Wave Output Current ..............5mA sink/source
Power Supply Range .............................5 – 15 V DC
Power Supply Protection ...................... 20V DC (30 second max)
Sync Input Protection ........................... 120 V DC (30 second max.)
Test Point Protection .............................35V DC (30 second max.)
