- 10 uH to 111.1 mH (10 uH per step) - wide range and high resolution
- Four decades of inductance
- Sturdy, multi-way binding posts
- Slide switches to easily add or subtract for desired value
- Durable ABS plastic housing
- Compact size 5.79" x 4.61" x 2.16"
- Perfect for educational use, R & D, service, production line testing, and maintenance

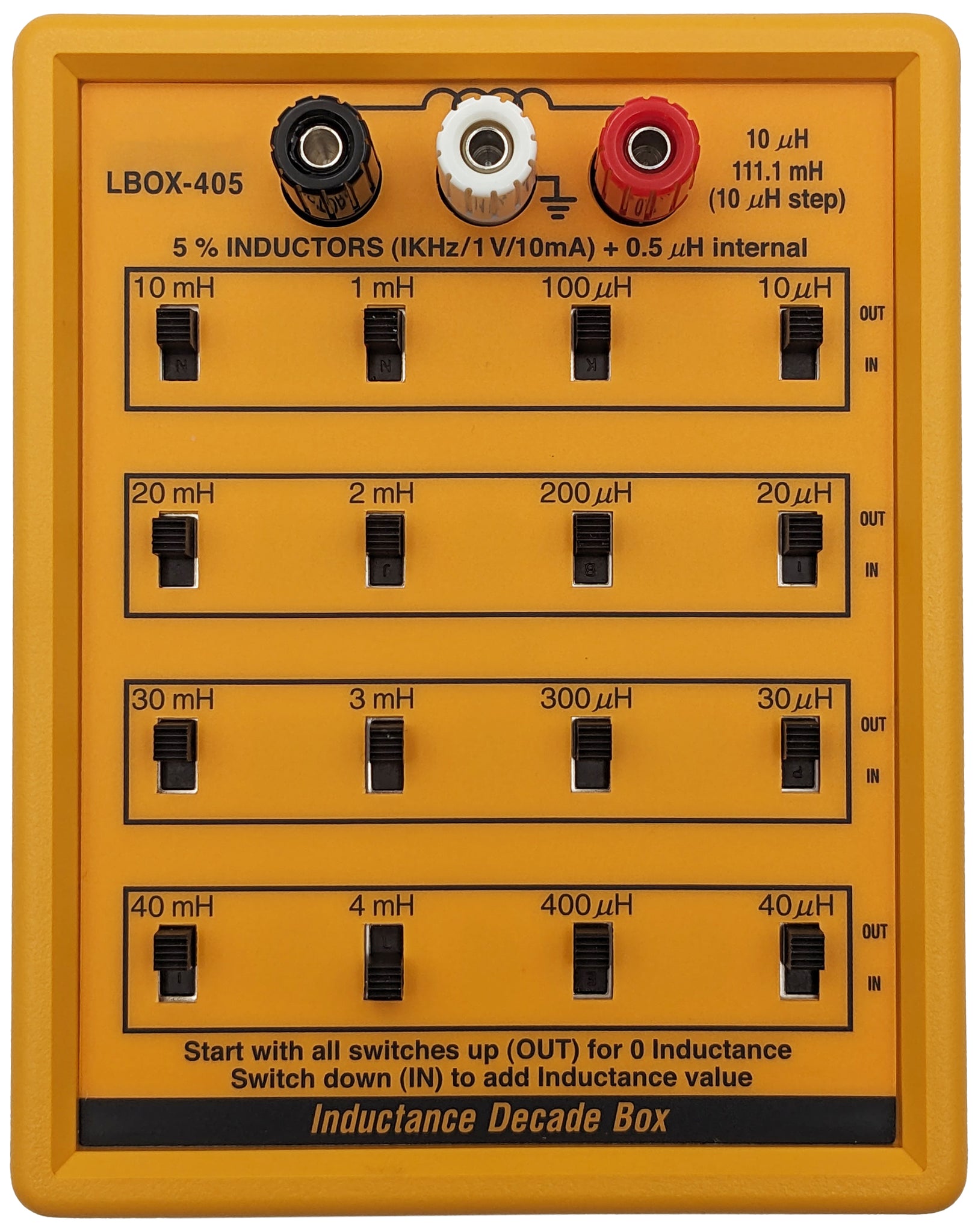

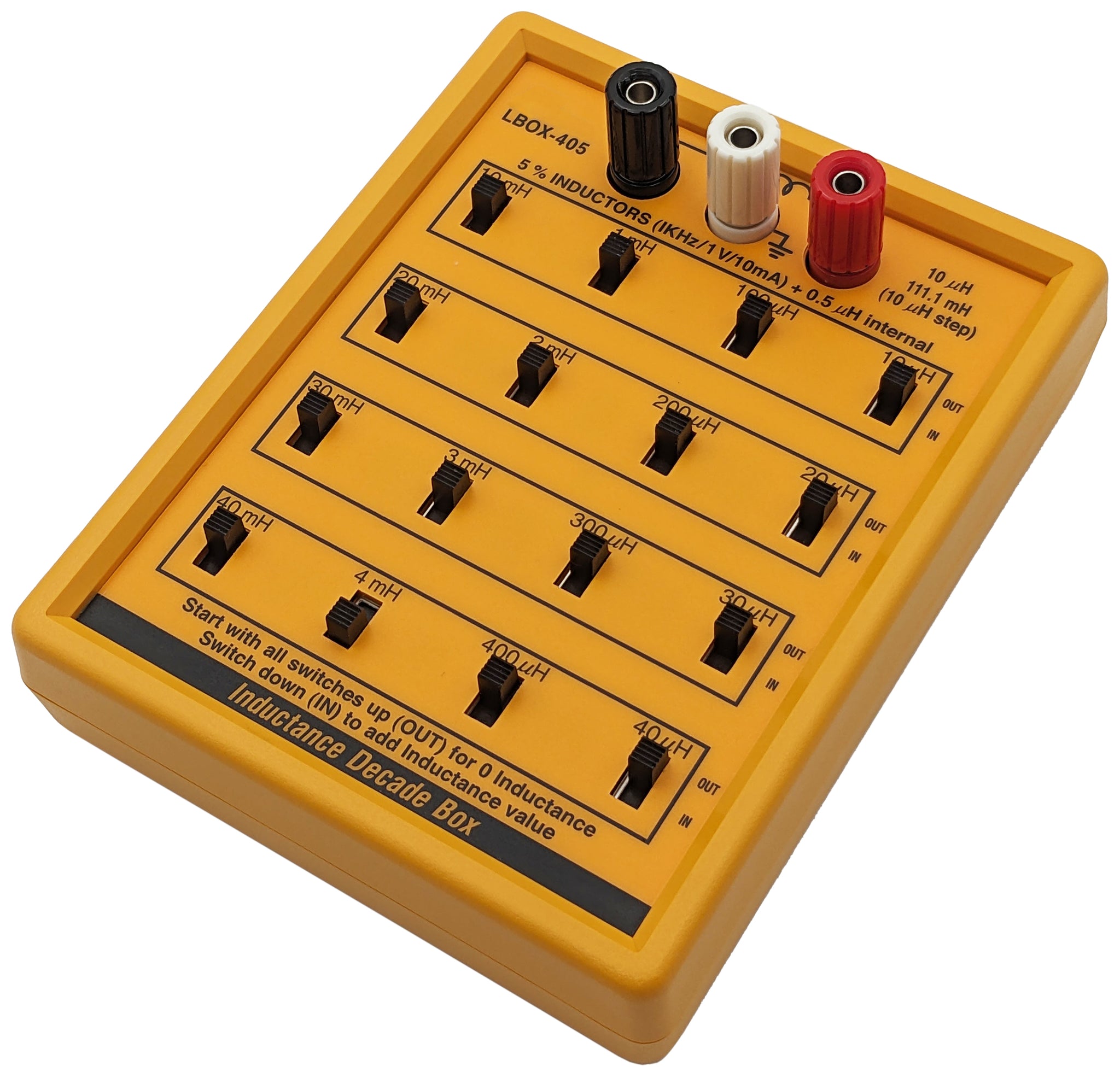

Model LBOX-405 Inductance Decade Box
Affordable decade box with rugged quality and high precision. Perfect for educational use, R and D, service, production line testing and maintenance.
Specifications:
Range: 10 uH to 111.1 mH (10 uH per step)
Accuracy: 5% inductors used throughout
@ 23 ± 5℃
@ 1 KHz test frequency
Max. Rating Current: 10 mA DC or AC
Internal Residual Inductance: Approx. 0.5 uH
Operating Temperature: 32 to 122℉ (0 to 50℃)
Operating Humidity: Less than 80% RH
Weight: 0.74 lb. (333 g)
Dimensions: 5.79" x 4.61" x 2.16" (14.7 cm x 11.7 cm x 5.5 cm)
