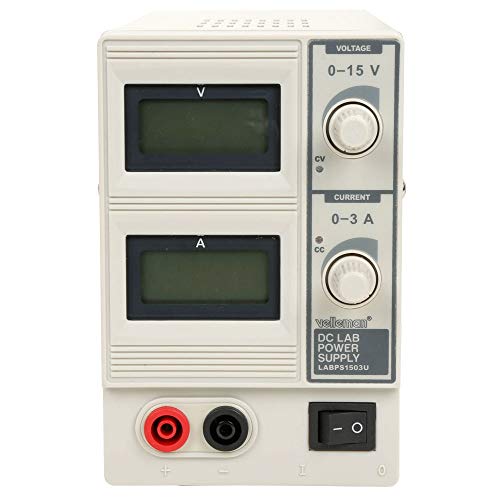

- Dc Lab Power Supply 0-15 Vdc / 0-3 A Max With Dual Lcd Display
- LCD display for voltage and current
- Protection mode: current-limiting
- Color: white-grey
- Insulated terminals
Dc lab power supply 0-15 vdc / 0-3 a max with dual lcd display.
Specifications
input voltage: 230 VAC 50 Hz 0.8 A 85 W
pf: 0.75
output: 0-15 VDC adjustable max.
output current: 0-3 A adjustable max.
ripple voltage: 1 mV
operating altitude: up to 6561.68 ft
temperature range: 41 - 104 °F
max. relative humidity: < 90%
fuse: F1AL 250 V
dimensions: 3.74 x 5.91 x 9.45 inch
Features
LCD display for voltage and current protection
mode: current-limiting
color: white-grey
insulated terminals output connectors: IEC1010
indoor use only
pollution degree II
measurement CAT III
protected against overload
