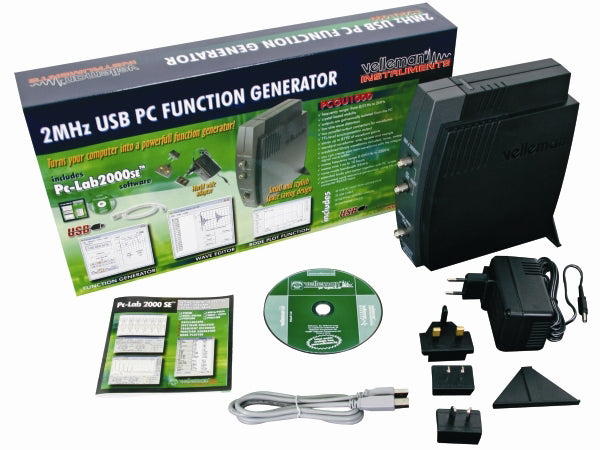

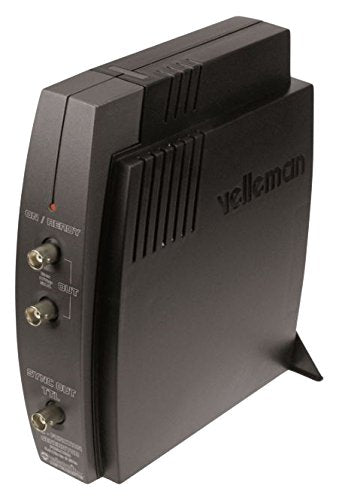

Velleman 2MHz USB PC Function Generator

• 0.1Hz to 2MHz frequency range
• Crystal-based for stability
• Low sine wave distortion
• 50MHz sample rate
• With internal 40 dB attenuator (output divided by 100)

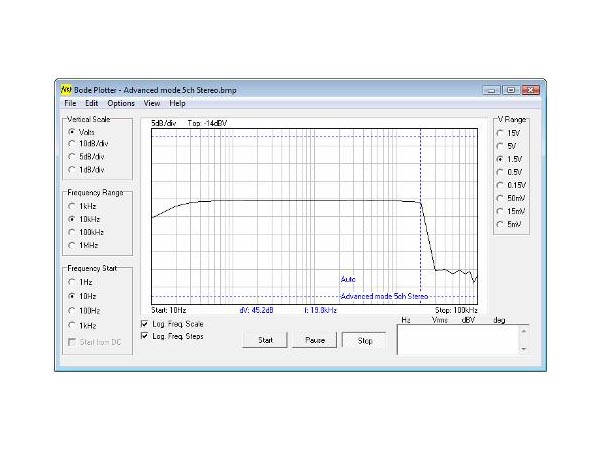

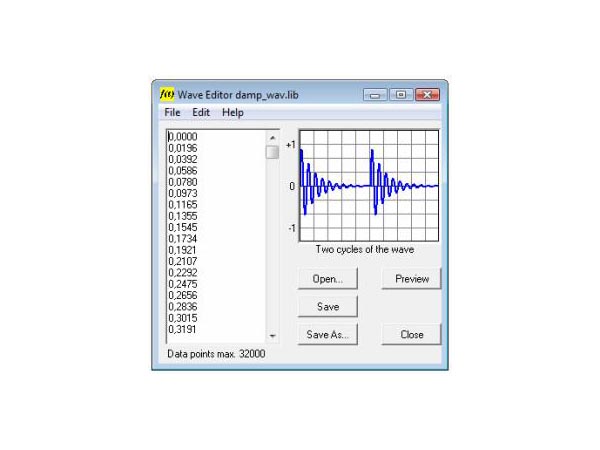

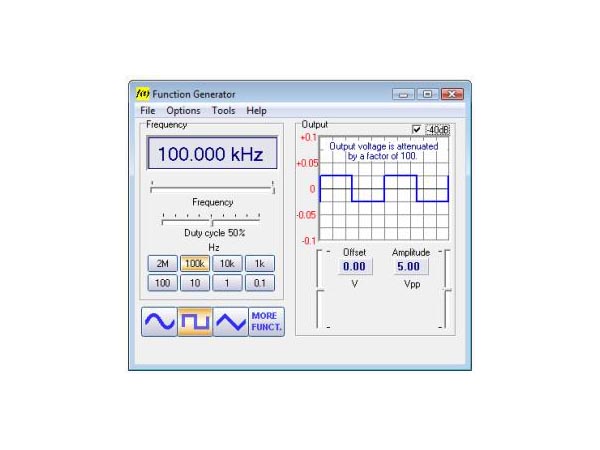

The PCGU1000 is the latest and greatest in function generators! Imagine a digital function generator that harnesses the power of your PC to bring you a great combination of affordability and versatility... well it's here! It's got everything you need in a function generator and more. Low sine wave distortion, TTL-level synchronization output, automated wave sequence generation via file or RS232 input, and lots more! All these great features are packed into a space-saving and stylish design that won't clutter up your desk and is a great companion to the PCSU1000 USB scope. Not only does the PCGU1000 include preset standard waveforms for sine, square and triangle waves, but it also comes with a powerful custom signal wave editor to create your own waveforms! The possibilities are endless! How does it work? The signal waves are created in your PC and then produced by the function generator via DDS (Direct Digital wave Synthesis)! Combine this with crystal-based stability and you get rock solid results every time! The included software gives you plenty of options, and lets you create extended bode plots with the use of one of Velleman's PC scope series (like the PCSU1000). For even greater control, the windows DLL is included to give you all the freedom you need to build your own custom software. The PCGU1000 features 2 equal outputs and a TTL sync output, and will deliver output voltage of 1mVtt up to 10Vtt at 600 ohms. All the outputs are galvanically separated from the PC in order to avoid measuring problems. Power supply included.

Product Dimensions (L x W x H): 414 x 343 x 69 MM

Product Weight: 1.65 LB
