- 200/100/70MHz bandwidths
- 1GSa/s Real Time sample rate
- Large (7.0-inch) color display, WVGA(800x480)
- Record length up to 40K
- Trigger mode: edge/pulse width/line selectable video/slop/overtime etc

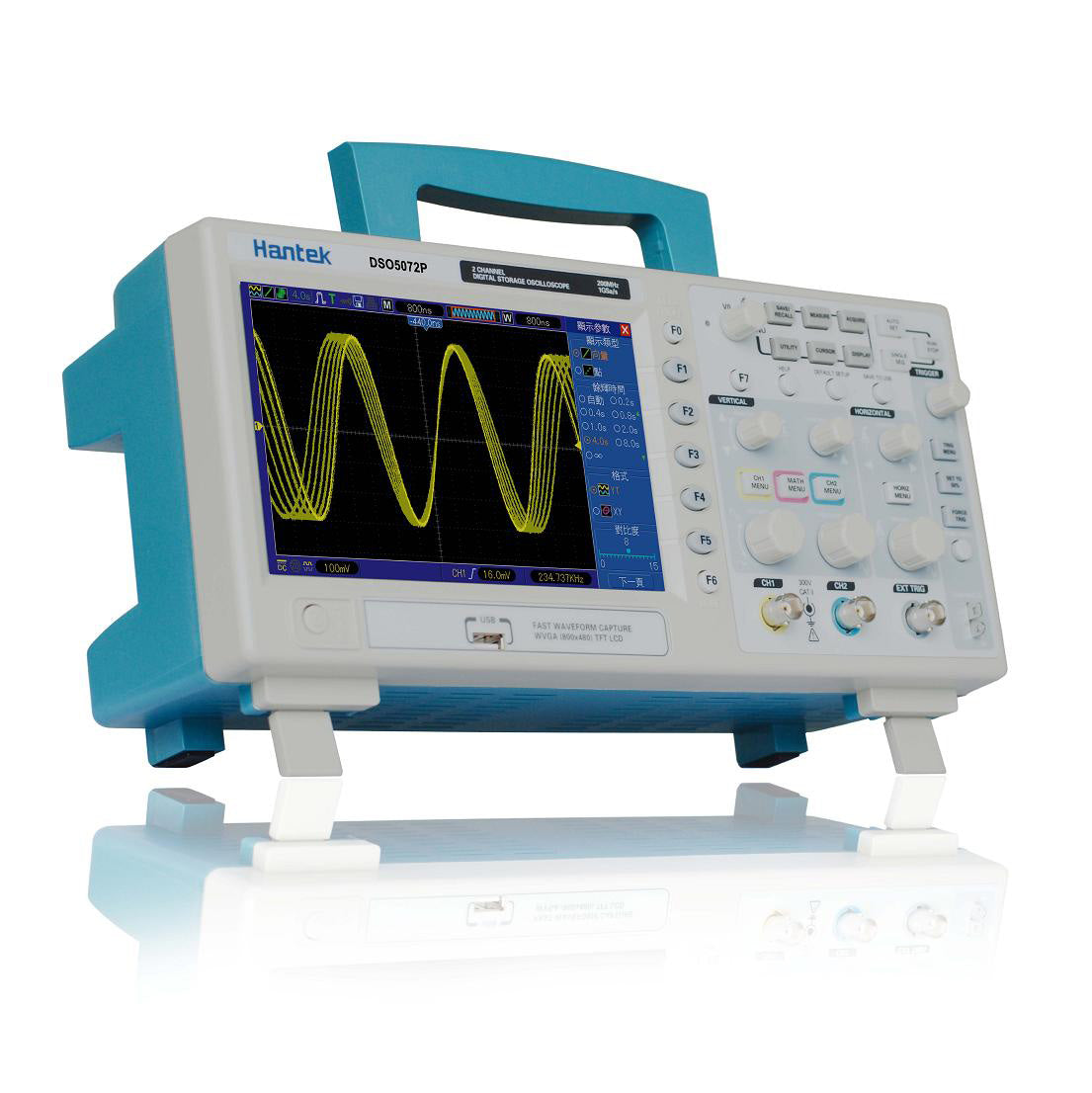

Features:
•200/100/70MHz bandwidths•1GSa/s Real Time sample rate
•Large (7.0-inch) color display, WVGA(800x480)
•Record length up to 40K
•Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
•USB host and device connectivity, standard
•Multiple automatic measurements
•Four math functions, including FFTs standard
•Provides software for PC real-time analysis

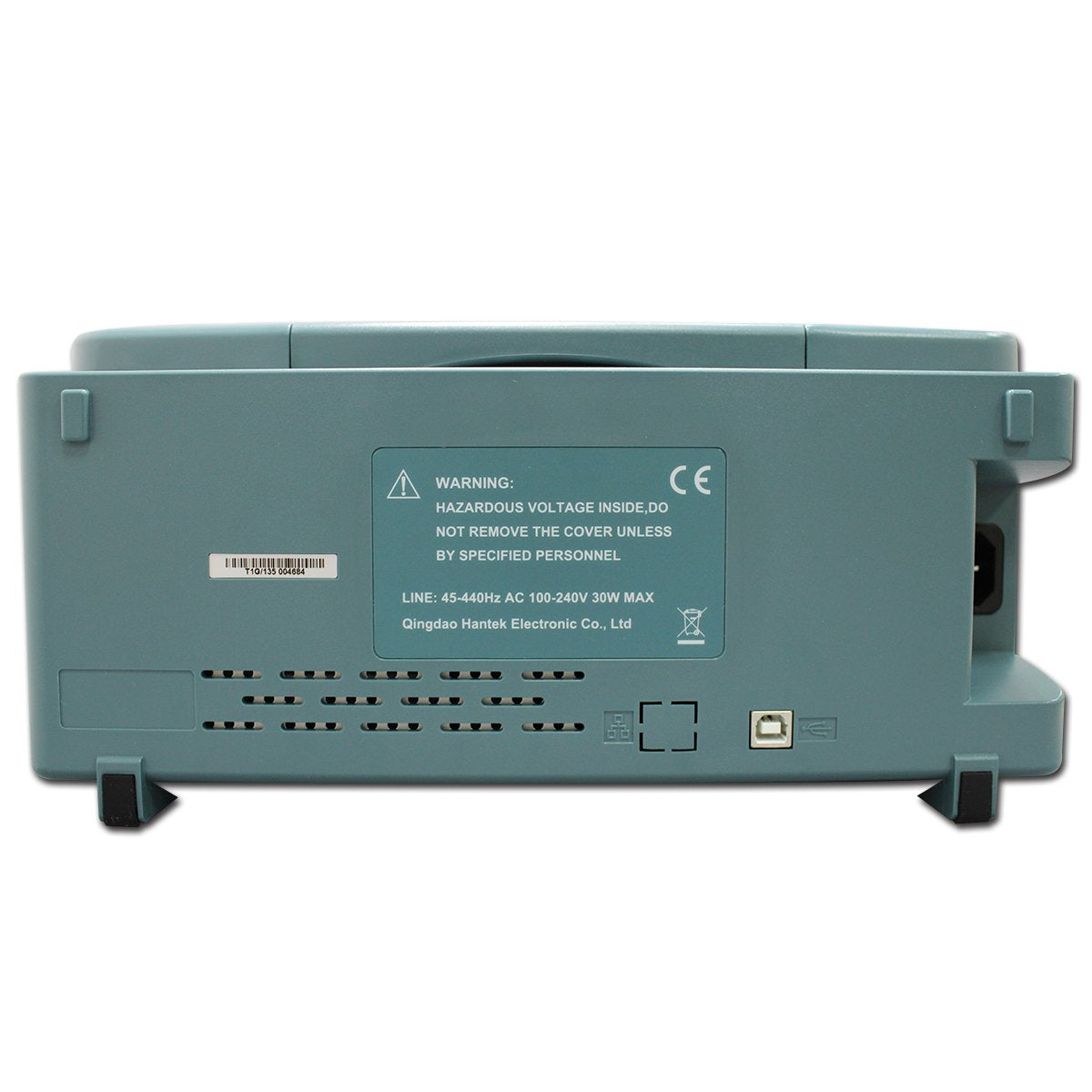

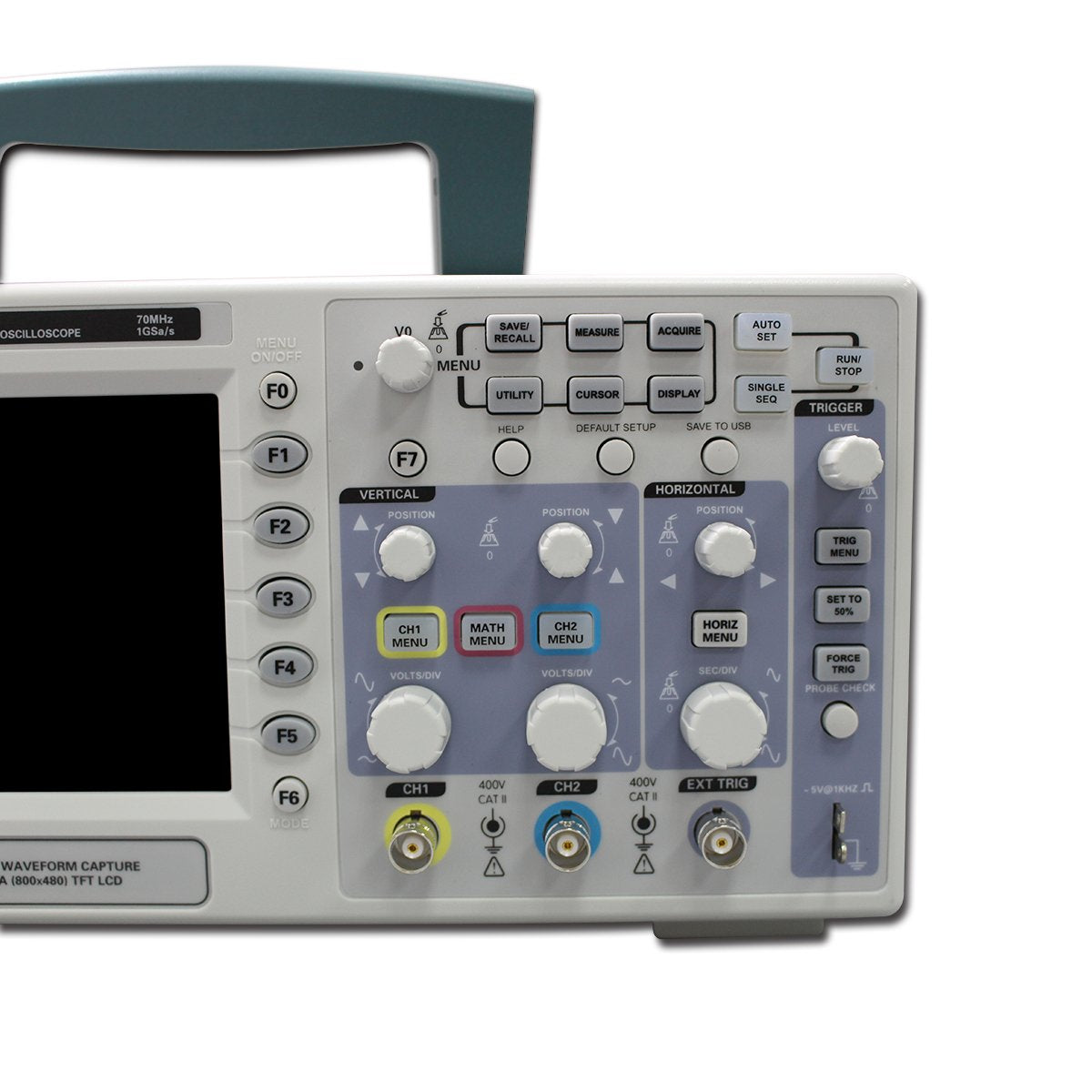

Specifications:

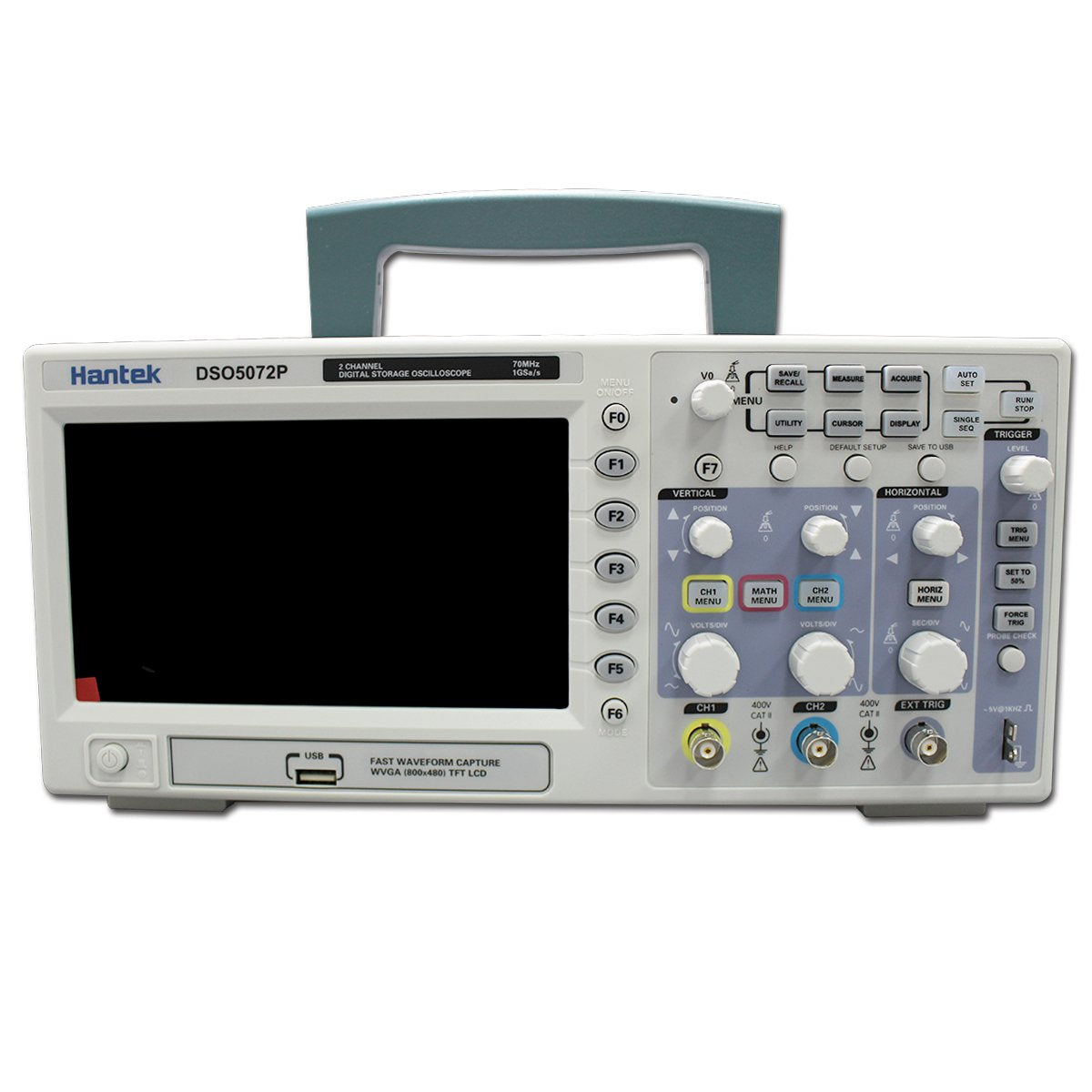

•Model:DSO5072P•Bandwidth:70MHz
•Channel:2
•Real-Time Sample:1GSa/s
•Equivalent Sample:25GSa/s
•Memory Depth:40K
•Rise Time:5ns
•Time Base Accuracy:±50ppm
•Time Base Range:4ns/div-40s/div
•Input Impendance:1MO
•VOLTS/DIV Range:2mV/div~5V/div
•A/D Converter:8 bit
•Position Range:±50V(5V/div), ±40V(2V/div~500mV/div), ±2V(200mV/div~50mV/div), ±400mV(20mV/div~2mV/div)
•DC Gain Accuracy:
±3% for Normal or Average acquisition mode, 5V/div to 10mV/div;
±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div
•Bandwidth Limit:20MHz
•Trigger Types:Edge,Video,Pulse, Slope, Over time, Alternative
•Trigger Source:CH1,CH2,EXT,EXT/5, AC Line
•Math:+,-,x,÷,FFT
•Cursor Measurement:
Voltage difference between cursors: ?V;
Time difference between cursors: ?T;
Reciprocal of ?T in Hertz (1/?T);
•Auto Measuerment:Frequency, Period, Mean,Pk-Pk,Cycli RMS,Minimum, Maximum,Rise time,Fall Time,+Pulse Width,-Pulse Width,Delay1-2Rise, Delay1-2Fall,+Duty,-Duty,Vbase,Vtop, Vmid,Vamp,Overshoot,Preshoot,Preiod Mean,Preiod RMS, FOVShoot, RPREShoot,BWIDTH,FRF

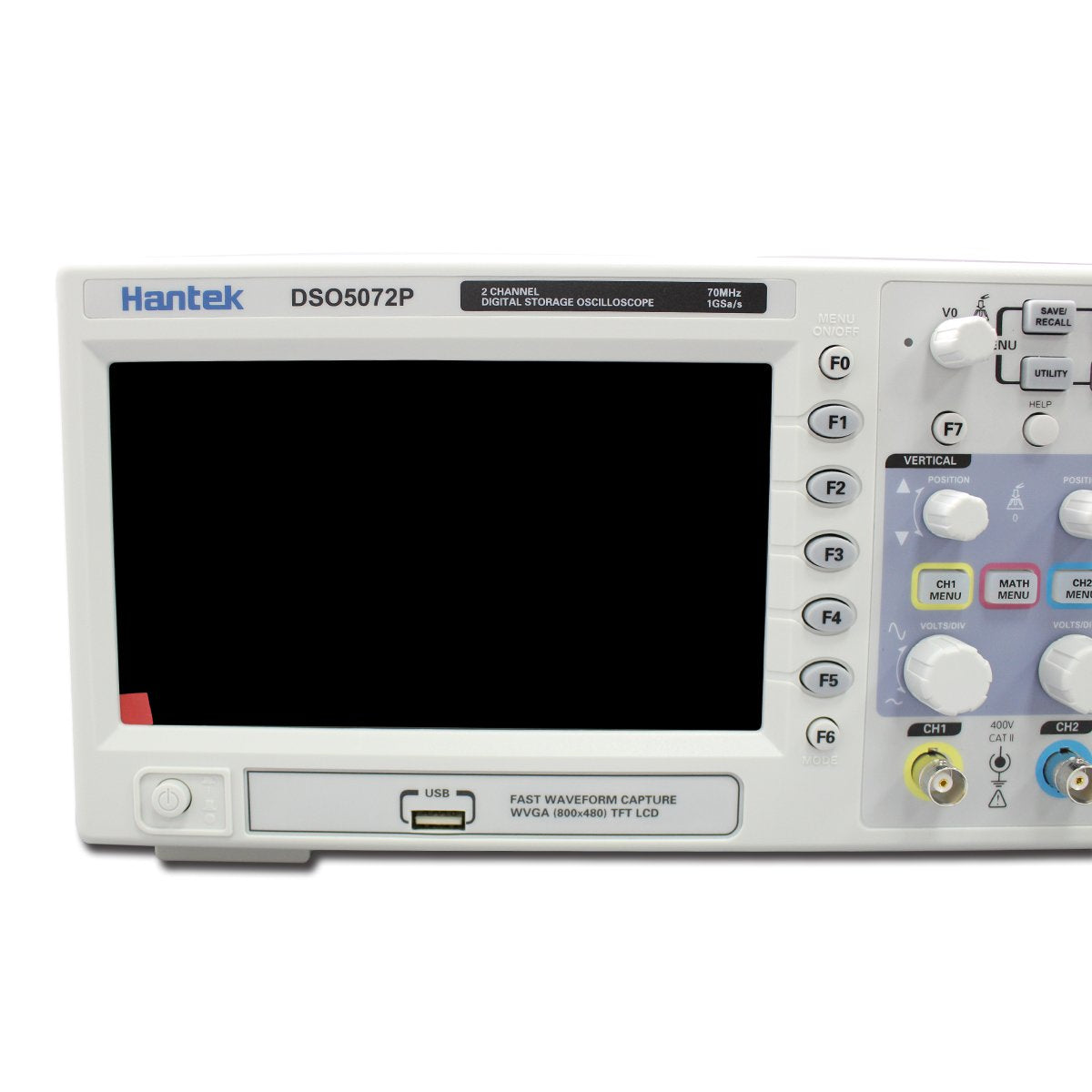

•Display:7" TFT 16K Color LCD,800*480 dots
Product Dimensions (L x W x H): 381 x 4 x 197 inches
Product Weight: 2.35 LB
