- Bandwidth: 100 MHz. 2 channels. Real-time sample rate: 2 GSa/s. Memory depth: 14 Mpts.
- Innovative UltraVision technology. Vertical sensitivity: 500 µV/div - 10 V/div.8-inch color LCD.
- Waveform acquisition rate up to 50,000 wfms/s. Math functions: Add, Subtract, Multiply, FFT.
- Standard interface: USB host & device,LAN,AUX. Recommended calibration interval period is 1year.
- Real-time waveform recording, waveform playback, and waveform analysis. Compact design

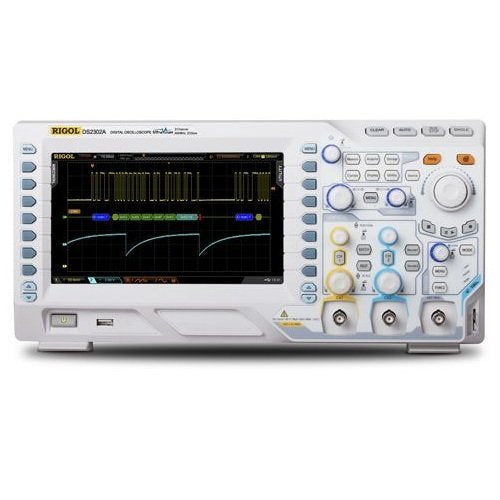

RIGOL DS2102A digital oscilloscope is ideal for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.
Technical Specifications:
Bandwidth 100 MHz
Channels 2
Real time sample rate 2 GSa/s (single-channel), 1 GSa/s (dual-channel)
Memory depth 14 Mpts (Std.), 56 Mpts (Opt.)
Waveform acquisition rate 50,000 wfms/s (Max. )
Vertical sensitivity range 500 µV/div - 10 V/div
Offset range 500 µV/div - 50 mV/div (± 2 V)
51 mV/div - 200 mV/div (± 10 V)
205 mV/div - 2 V/div (± 50 V)
2.05 V/div - 10 V/div (± 100 V)
Vertical resolution 8 bits
Math Add, Subtract, Multiply, FFT, editable
Output voltage ~ 3 V, peak-peak
Frequency 1 kHz
General Specifications
Trigger modes Auto, Normal, Single
Power 50 W (max.)
Power voltage 100-240 V, 45-440 Hz
Temperature range Operation: 0°C to +50°C
Non-operation: -20°C to +70°C
Cooling method Fan
Standard Ports USB host (support USB-GPIB), USB device, LAN, Aux (TrigOut/PassFail)
Display 8" WVGA color LCD (800×480)
Package Contents
RIGOL DS2102A digital oscilloscope (1 pc.)
Passive probes (2 pcs.)
Power cable (1 pc.)
USB data cable (1 pc.)
Quick guide (1 pc.)
CD (Software and User's guide) (1 pc.)
Product Dimensions (L x W x H): 452 x 305 x 274 MM
Product Weight: 0.35 LB
