Rigol DP831A Triple Output 160 Watt Power Supply
  • Load image into Gallery viewer, 3 channels. Max. power up to 195 W. | Fast transient responce time: &lt; 50 µs. | 3.5 inch TFT display. Fan cooling method. | Connectivity including USB Host &amp; Device, LAN, and Digital IO. | Standards: CE, cTUVus, ISO9001:2008, ISO14001:2004.
  • Load image into Gallery viewer, Rigol DP831A Triple Output 160 Watt Power Supply

Rigol DP831A Triple Output 160 Watt Power Supply

01DP831A
$790.00
$790.00
Sold out
Shipping calculated at checkout.
  • 3 channels. Max. power up to 195 W.
  • Fast transient responce time: < 50 µs.
  • 3.5 inch TFT display. Fan cooling method.
  • Connectivity including USB Host & Device, LAN, and Digital IO.
  • Standards: CE, cTUVus, ISO9001:2008, ISO14001:2004.

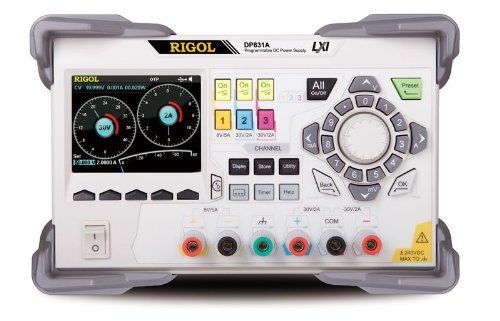

Rigol DP831A is a 3-channel 195 W programmable DC power supply.

Features
3 channels.
Max. power up to 195 W.
Fast transient responce time: < 50 µs.
3.5 inch TFT display.
Fan cooling method.
Connectivity including USB Host & Device, LAN, and Digital IO.
Standards: CE, cTUVus, ISO9001:2008, ISO14001:2004.

Technical Specifications
Interfaces: USB Device, USB Host, LAN, RS232, Digital IO
Power: AC Input (50 Hz to 60 Hz): 100 V AC+10%, 115 V AC+10%, 230 V AC+10% (maximum 250 V AC)
Dimensions: 239 × 157 × 418 mm
Weight: 9.0 kg

Package Contents
Rigol DP831A Programmable DC Power Supply - 1 pc.
Power cord - 1 pc.
USB data cable - 1 pc.
Fuse (50T-025H 250V 2.5A) - 1 pc.


Product Dimensions (L x W x H): 523 x 363 x 282 MM

Product Weight: 0.75 LB
