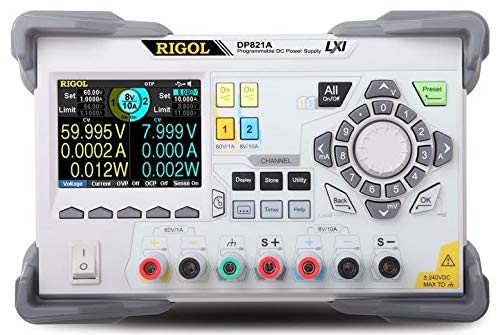

Rigol DP821A Dual Output 140 W Programmable DC Power Supply

• Power Supply with a 140 W dual output configuration, 1 mV/1 mA measurement resolution, monitoring, analysis, trigger I/O, and LAN interface
• 2 Outputs; total power up to 140 Watts
• 60V/1A||8V/10A,Dual Channel with Remote Sense
• Low Ripple Noise <350 uVrms/2mVpp
• Fast transient response time: <50 us

Dual Output, 140 W Programmable DC Power SupplyBuild Remote Communication You can build the remote communication between DP800 and PC over USB, LAN, RS232 or GPIB (option,can be extended via the USB-GPIB interface converter) interface.Remote Controls Methods User-defined Programming You can program and control the instrument using the SCPI (Standard Commands for ProgrammableInstruments) Send SCPI Commands via the PC Software You can control the power supply remotely by sending SCPI commands via the PC software (UltraSigma) provided by RIGOL.SCPI Command OverviewSCPI (Standard Commands for Programmable Instruments) is a standardized instrument programming language that is built upon the standard IEEE488.1 and IEEE 488.2 and conforms to various standards (such as the floating point operation rules in IEEE754 standard, ISO646 7-bit coded character for information interchange (equivalent to ASCII programming)). This section introduces the syntax, symbols, parameters and abbreviation rules of the SCPI commands.SCPI Status RegistersAll the SCPI instruments execute the status register operations in the same way. The status system records the various instrument states into three register sets: status byte register, standard event register and questionable status register sets. The status byte register records the advanced summary informationreported by other register sets. The SCPI status systems of the DP800 series multi-channel models.OVERVIEWThe Rigol DP821A is a very high quality programmable laboratory power supply with two switchable outputs (60 V/1 A and 8 V/10 A) and a maximum power output of 140 W.Like all Rigol devices, the power supply features a very well constructed and easy to use interface, which also offers comprehensive ease-of-use functions, such as programmable voltage curves. The menu has an intuitive structure.The Rigol DP821A features a relative large (8.9 cm / 3.5) an

Product Dimensions (L x W x H): 559 x 368 x 297 MM

Product Weight: 1 LB
