- AC/DC V/A + Resistance + Capacitance + Inductance + Temperature
- 4-Range inductance up to 20H
- All range fused with built-in resettable fuse protection
- Display 2000 counts
- Auto Power Off
- Transistor hFE 0~1000
- Diode Open Voltage 3.0V
- Continuity Buzzer <70Ω
- Data Hold
- Low Battery Indicator

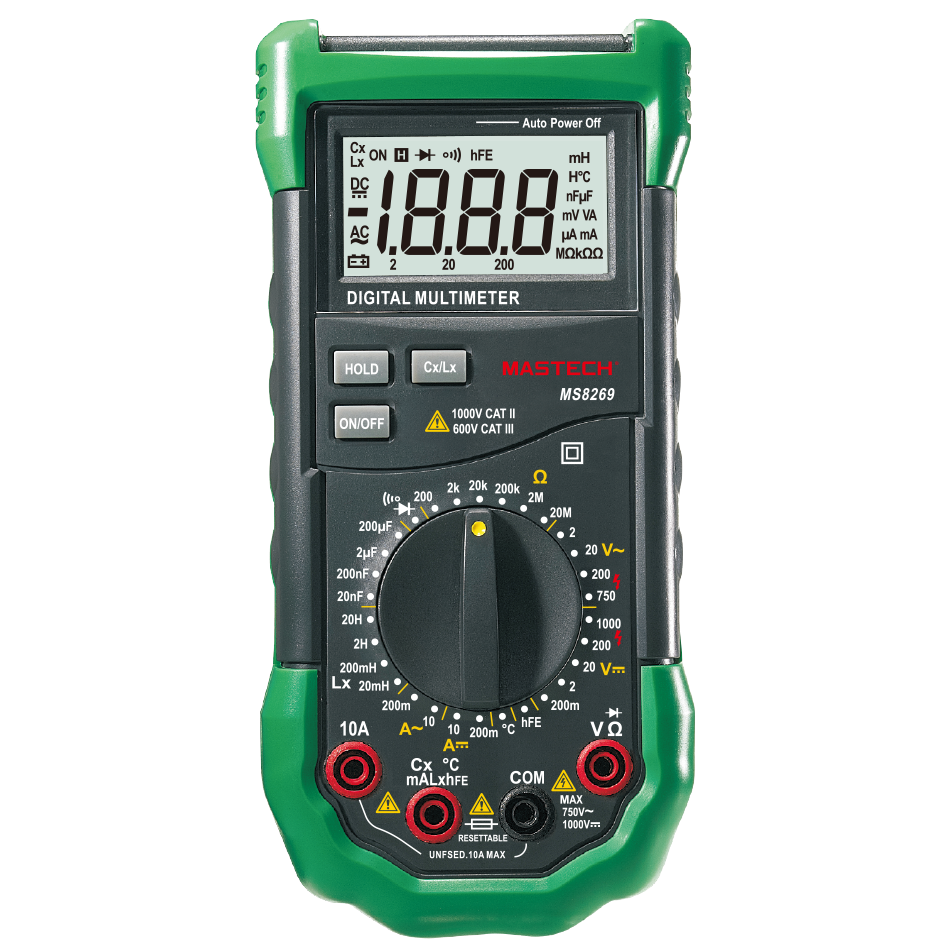

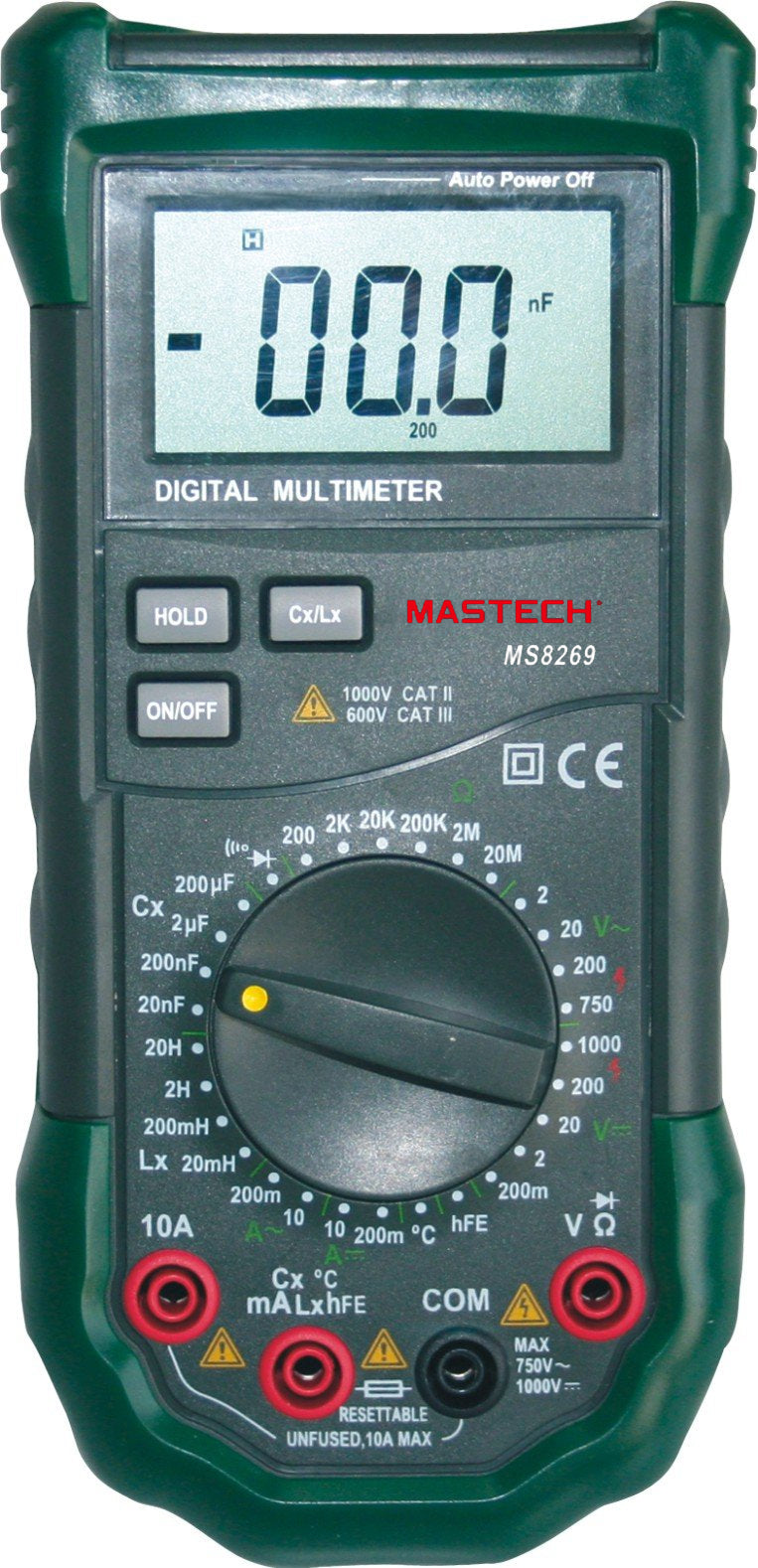

The Mastech MS8269 is a manual 31-range digital LCR Meter with full featured multimeter. It measures AC/DC voltage & current, resistance, capacitance, inductance, temperature and diode and transistor check.

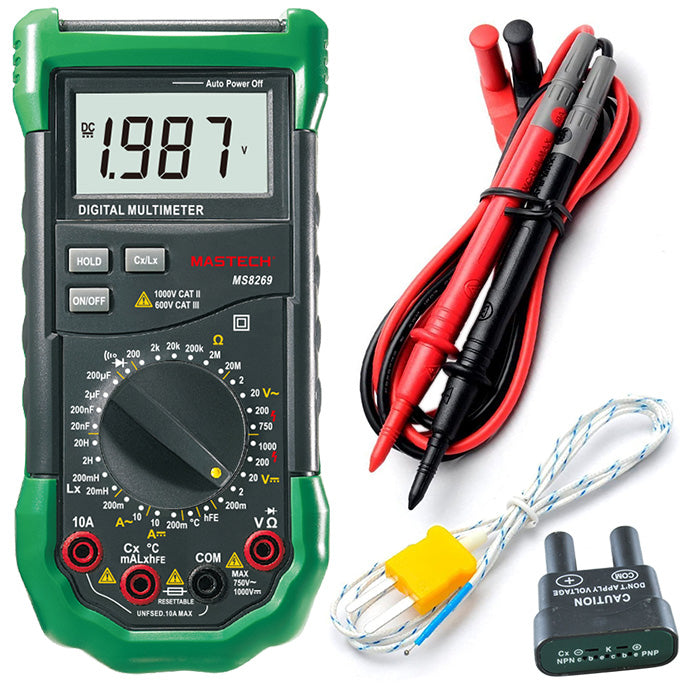

Included accessories: Test leads, K type thermocouple, Multi-Function Socket, Battery, and User's manual
|

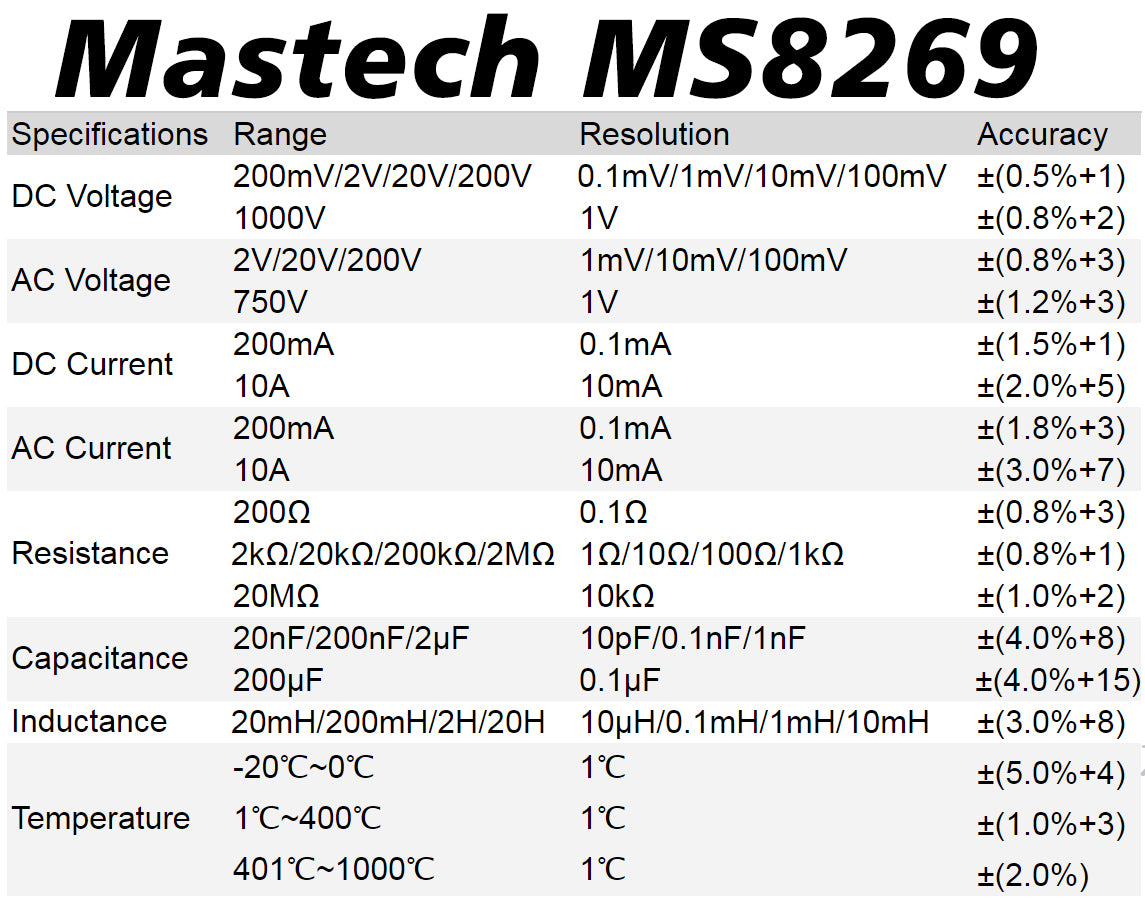

Specifications |
Range |
Resolution |
Accuracy |
|
DC Voltage |
200mV/2V/20V/200V 1000V |
0.1mV/1mV/10mV/100mV 1V |
±(0.5%+1) ±(0.8%+2) |
|
AC Voltage |
2V/20V/200V 750V |
1mV/10mV/100mV 1V |
±(0.8%+3) ±(1.2%+3) |
|
DC Current |
200mA 10A |
0.1mA 10mA |
±(1.5%+1) ±(2.0%+5) |
|
AC Current |
200mA 10A |
0.1mA 10mA |
±(1.8%+3) ±(3.0%+7) |
|
Resistance |
200Ω 2kΩ/20kΩ/200kΩ/2MΩ 20MΩ |
0.1Ω 1Ω/10Ω/100Ω/1kΩ 10kΩ |
±(0.8%+3) ±(0.8%+1) ±(1.0%+2) |
|
Capacitance |
20nF/200nF/2μF 200μF |
10pF/0.1nF/1nF 0.1μF |
±(4.0%+8) ±(4.0%+15) |
|
Inductance |
20mH/200mH/2H/20H |
10μH/0.1mH/1mH/10mH |
±(3.0%+8) |
|
Temperature |
-20℃~0℃ 1℃~400℃ 401℃~1000℃ |
1℃ 1℃ 1℃ |
±(5.0%+4) ±(1.0%+3) ±(2.0%) |
