Mastech Digital AC/DC Auto/Manual Range Digital Multimeter (MS8268)

01DMMS8268

Regular price: $49.99
Sale price: $49.99
Regular price
Unit price: per

Shipping calculated at checkout.

Quantity must be 1 or more

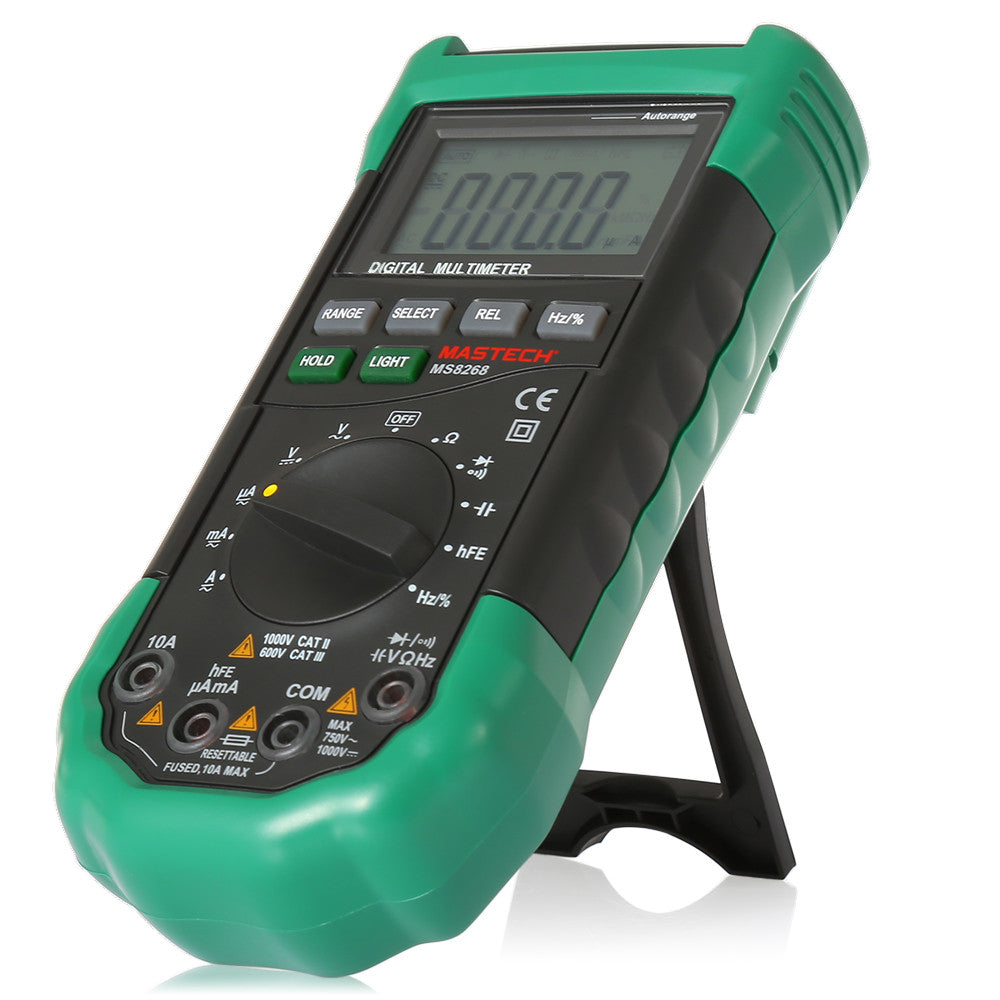

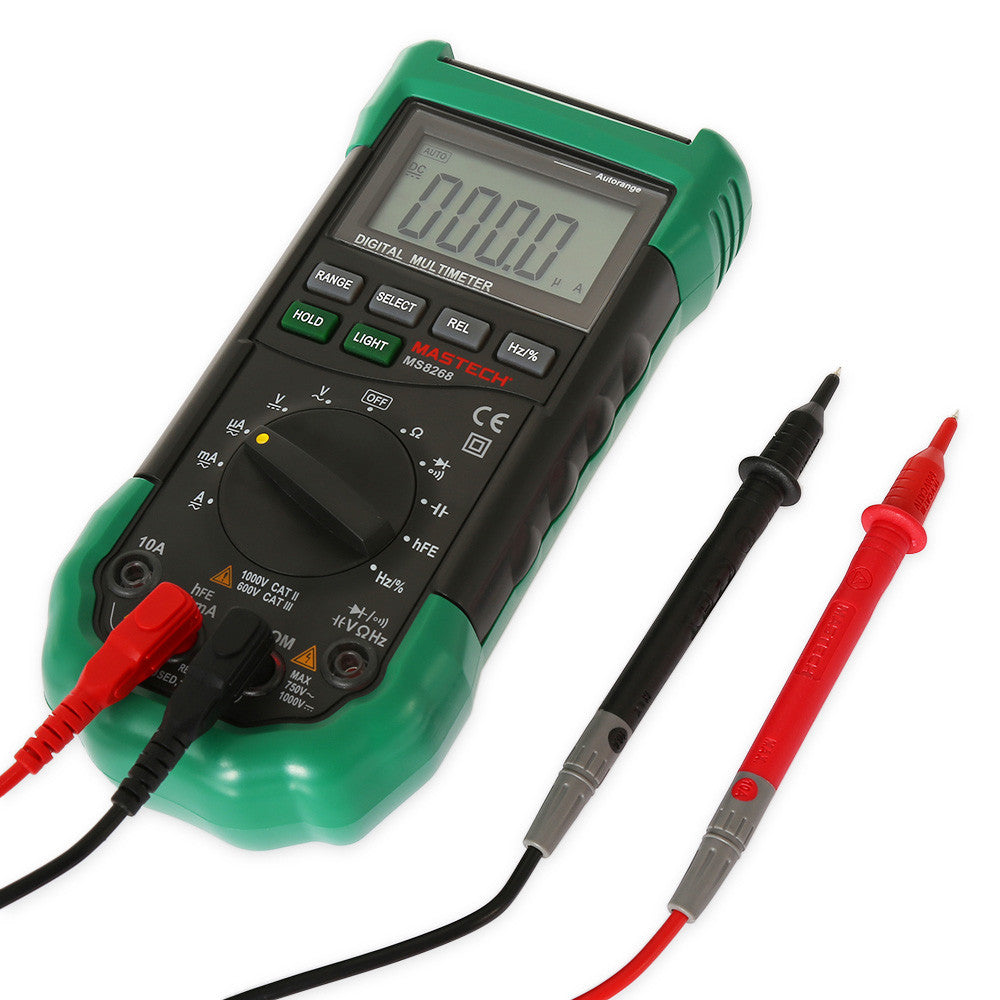

The Mastech MS8268 is an auto/manual ranging digital multimeter. It is packed with many nice features such as sound and light warning for the jacks and back-lit LCD screen. This meter is powered on 3 AAA batteries. Includes test leads, multi-function socket, batteries, and user's manual.

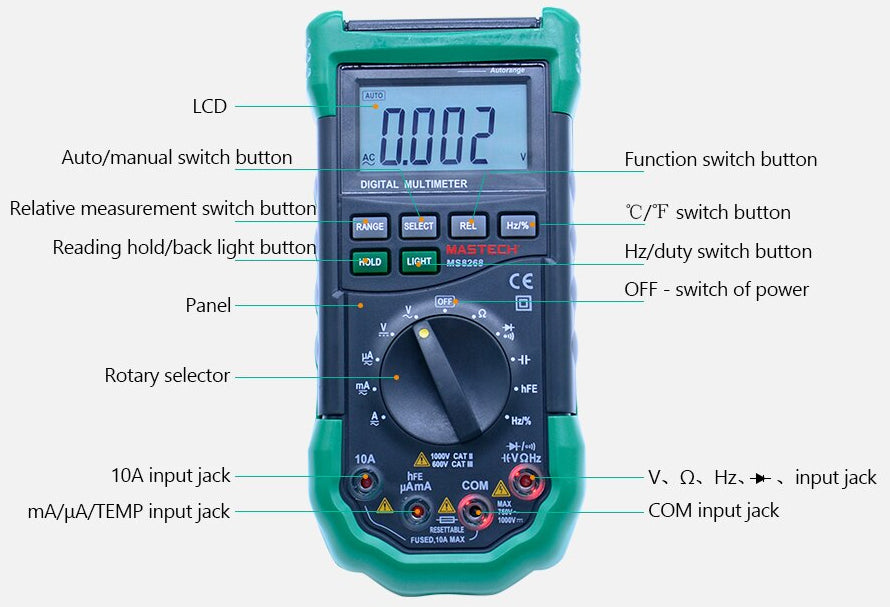

Features

● Display 4000 counts

● Autoranging

● Auto Power Off

● Sound & Light Warning

● Relative Measurement

● Transistor hFE 0~1000

● Diode Open Voltage 1.5V

● Continuity Buzzer <70Ω

● Data Hold

● Display Backlight

● Low Battery Display

General Information

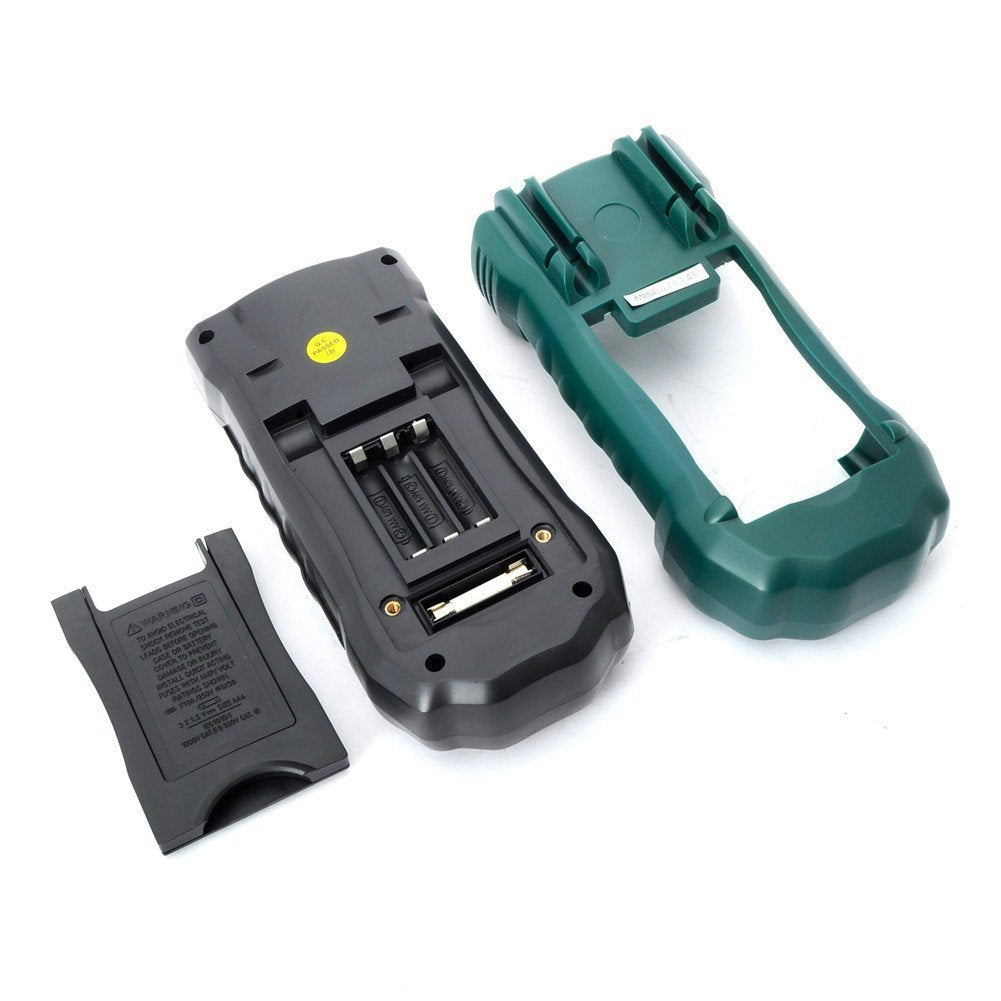

● Power Supply : 3x1.5V AAA Batteries

● Product Size : 195mmx92mmx55mm/7.7"x3.6"x2.2"

● Product Weight : 400g/0.9lb

● Certificate : RoHS

● Safety Rating : CATII 1000V / CATIII 600V

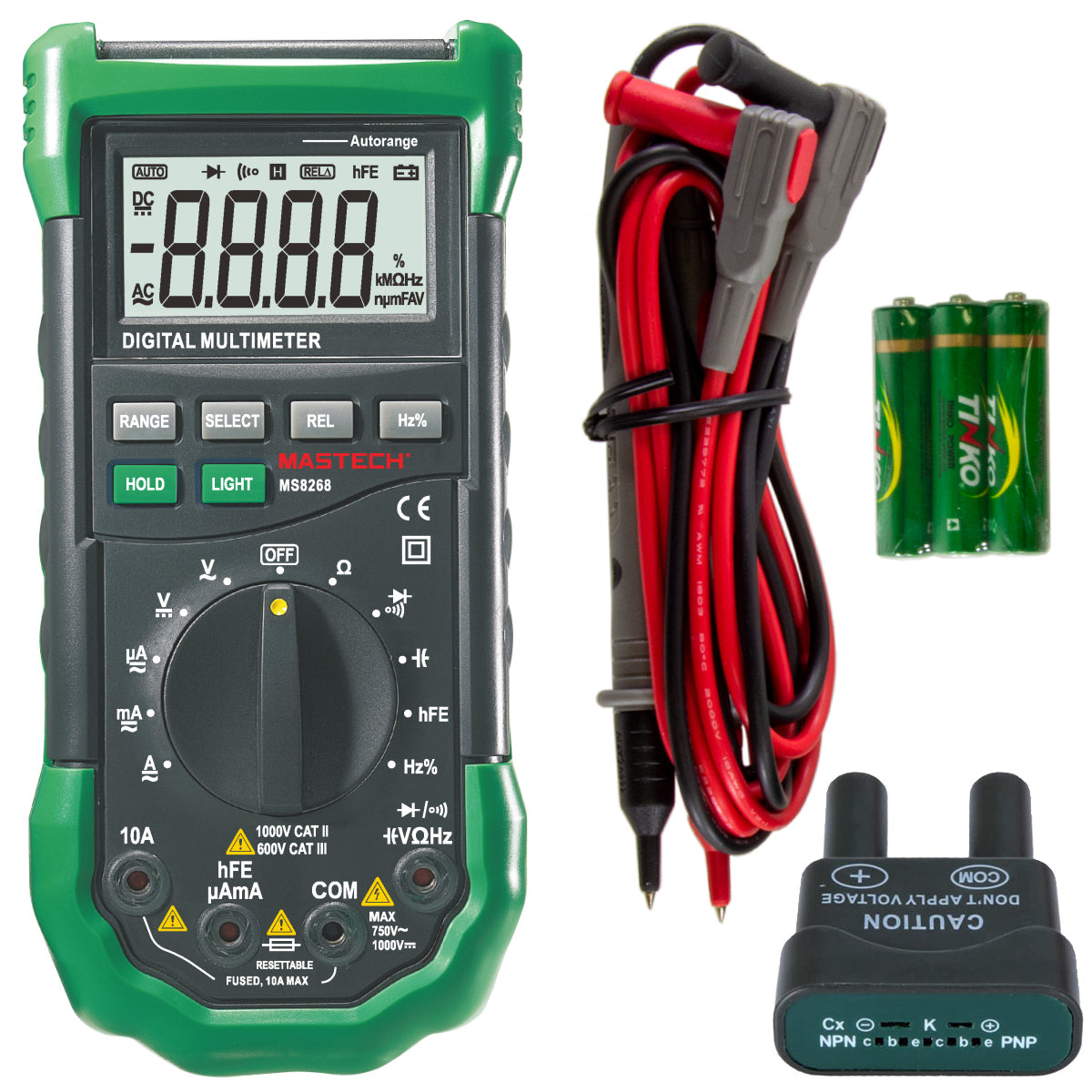

Included Accessories

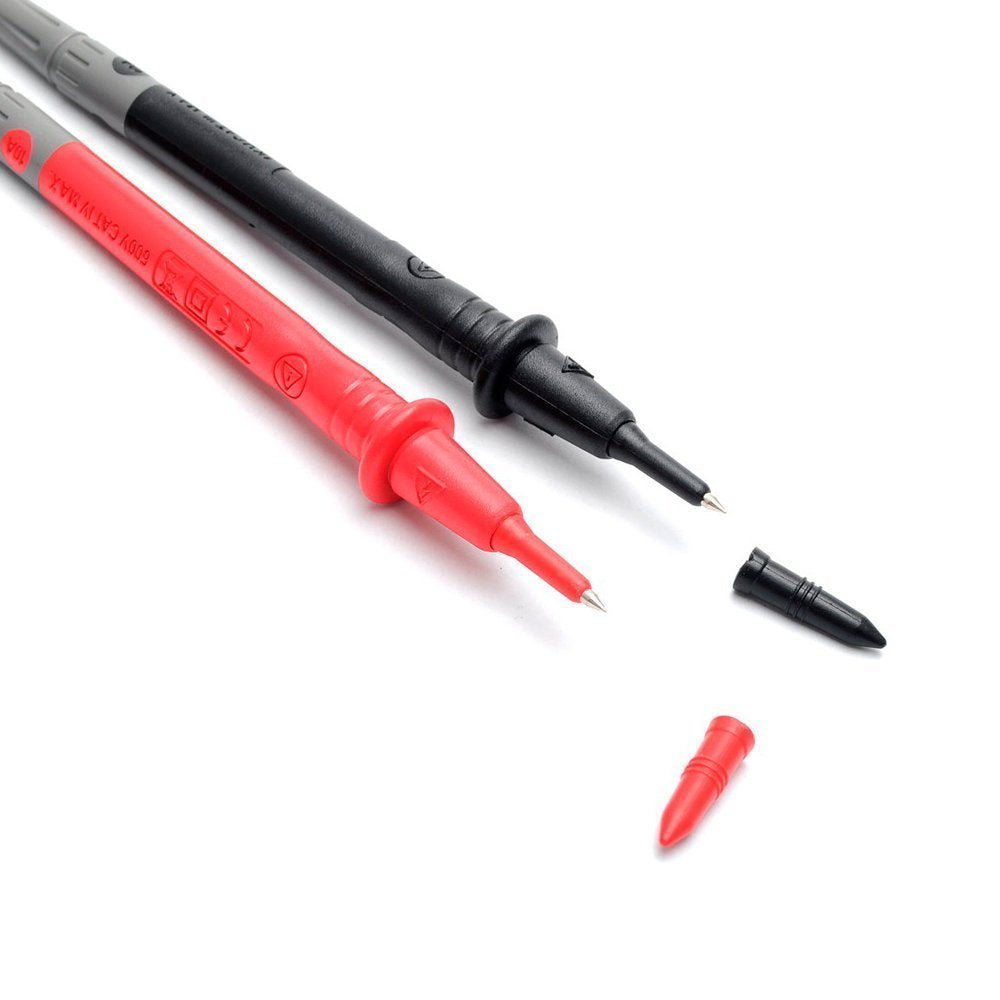

● Test leads

● Multi-Function Socket

● Battery and User's manual

Specifications


Specifications	Range	Resolution	Accuracy
DC Voltage	400mV/4V/40V/400V	0.1mV/1mV/10mV/100mV	±(0.7%+2)
DC Voltage	1000V	1V	±(0.8%+2)
AC Voltage	400mV	0.1mV	±(3.0%+3)
	4V/40V/400V	1mV/10mV/100mV	±(0.8%+3)
	750V	1V	±(1.0%+3)
DC Current	400μA/4000μA/40mA/400mA	0.1μA/1μA/10μA/0.1mA	±(1.2%+3)
DC Current	10A	10mA	±(2.0%+5)
AC Current	400μA/4000μA/40mA/400mA	0.1μA/1μA/10μA/0.1mA	±(1.5%+5)
AC Current	10A	10mA	±(3.0%+7)
Resistance	400Ω/4kΩ/40kΩ/400kΩ/4MΩ	0.1Ω/1Ω/10Ω/100Ω/1kΩ	±(1.2%+2)
Resistance	40MΩ	10kΩ	±(2.0%+5)
Capacitance	4nF	1pF	±(5.0%+5)
Capacitance	40nF/400nF/4μF/40μF/200μF	10pF/100pF/1nF/10nF/0.1μF	±(3.0%+3)
Frequency	10Hz/100Hz/1000Hz	0.001Hz/0.01Hz/0.1Hz	±(2.0%+5)
Frequency	10kHz/100kHz/200kHz	1Hz/10Hz/100Hz	±(2.0%+5)
Duty Cycle	0.1%~99.9%	0.10%	±(2.0%+2)
