- AC/DCV + ACV: Six ranges to 1000V
- Capacitance: Six ranges to 5000µF
- Resistance: Six ranges to 50M
- Duty Cycle: 5Hz ~ 500KHz
- RS-232 interface and software
AC/DC Current + AC Current: Six ranges to 10A
Capacitance: Six ranges to 5000uF
Resistance: Six ranges to 50M
Logic Frequency: 5Hz ~ 2MHz
Linear Frequency: 10Hz ~ 2MHz
Duty Cycle: 5Hz ~ 500KHz
RS-232 interface and software
Software calibrates automatically
Auto/Manual ranging, diode test, full screen memory function, data hold, full overload protection, min/max, relative and average measurement, DC accuracy to 0.03%, 110V or 220V power operation

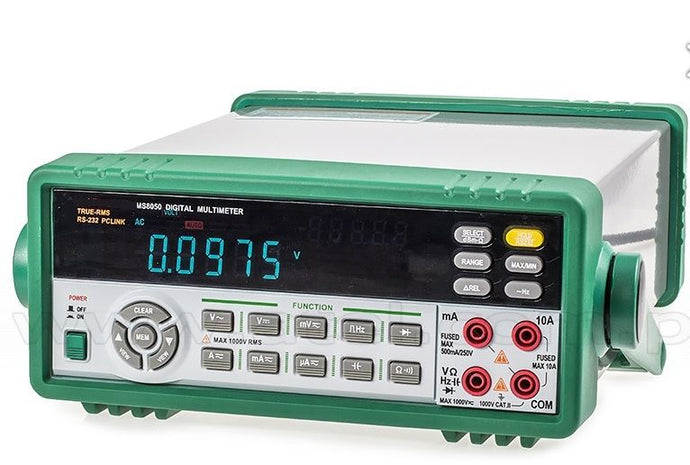

The MS8050 is a multi-feature instrument with a dual 5 digit display and 53,000 count measurement for high accuracy and stability. Ten different measurement functions make this model a powerful, versatile performer. With a 30 full screen memory function for saving test data, and display/draw/record software for all test processes, an extremely wide range of applications exist for the MS8050. Its exclusive dynamic scale, which can detect very small changes of parameters, along with its computer interface capabilities, make it ideal for use as a recorder. Safety protection against operator error also makes it perfect for university labs, school technology, industry and research and development.
Features:
53000 counts VFD display
ACV (TRMS)/ACV+DCV/dBm/DCV measurement up to 1000V
0.01ohm resistance and 1?V voltage resolution
Logic frequency/linear frequency and duty cycle measurement
MAX/MIN/MAX-MIN value, relative value, average value measurement
Data hold and data logging
USB interface and PC analysis software
Diode and continuity test
20KHz frequency response for ACV measurement
Specifications:
Max. Display 53000
DC Voltage 50mV/500mV/5V/50V/500V/1000V±0.03% ±6
AC Voltage 50mV/500mV/5V/50V/500V/1000V ±0.5%±40
DC Current 500A/5000A/50mA/500mA,±0.15%±10,5A/10A±0.5%±10
AC Current 500A/5000A/50mA/500mA±0.75%±10,5A/10A±1.0%±10
Resistance 500/5K/50K/500K/5M±0.1%±5,50M±0.5%±10
Capacitance Accuracy 50nF/500nF/5F/50F±1%±10,500F/5000F±2%±10
Frequency Accuracy 5Hz2MHz,±0.006%±4
Transistor Test Yes
Temperature Test No
Frequency Test Yes
Power Consumption Test No
Short-Circuit Protection Yes
Short Curcuit Buzz Yes
Auto Power Off Yes
Battery included or not No
Dimensions & Weight:
Dimensions 12.48 in x 8.86 in x 4.13 in (31.7 cm x 22.5 cm x 10.5 cm)
Weight 108.82 oz (3085 g)
Included in package:
1 x MS8050 Bench multimeter
2 x Test lead cable (138+/-2cm)
1 x US plug power cable (180+/-2cm)
1 x Case
1 x RS232C Cable (203+/-2cm)
1 x CD
1 x User manual
Product Weight: 0.01 LB
