- DMM with automatic polarity function and 3 1/2 digit LCD display
- measurements: DC current up to 10A AC and DC voltage up to 600V resistance up to 2Mohm
- diode transistor and continuity test with buzzer
- data-hold function and backlight
- with protection holster

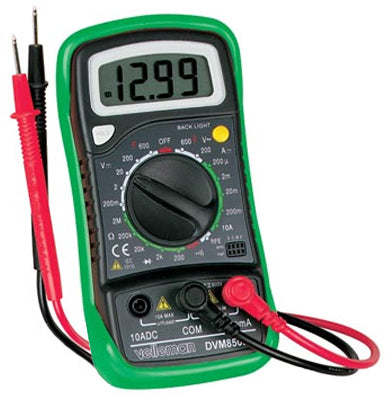

The Velleman DVM850BL Multimeter with Data Hold Function and Backlight
Use this multimeter to measure DC current (up to 10A), AC and DC voltage (up to 600V), and resistance (up to 2Mohm). The digital display screen reads out to three and a half digits. Easily operate with auto-polarity for any direct current and voltage readings. Extra features with the DVM850BL include diode, transistor, and continuity testing with buzzer. The hold function will help you record and retain the most specific and accurate reads.
DMM comes with protection holster and important safety information. This multimeter really offers you all the features you need for hobbyist testing and readings to help in your DIYs and comes at an unbeatable price.
Features
- Overrange indicator
- Continuity buzzer
- Transistor test
- Diode test
- Low-battery indication
- Maximum display: 1999
- LCD display size: 1.8" x 0.7"
- Manual ranging mode
- Dimensions: 2.7" x 5.4" x 1.2"
- Weight (with battery): 13.2275 oz
- Power supply: 9V battery (Included)
- Recommended for 3D printer assembly
Specifications
- DC voltage: 200m/2/20/200/600V
- basic accuracy: ± 0.5% of rdg ± 2 digits for 0.2V range / ± 0.8% of rdg ± 2 digits for 2V
- 200V range / ± 1.0% of rdg ± 2 digits for 600V range
- input impedance: 1Mohm
- maximum input: 600V
- AC voltage: 200/600V
- basic accuracy: ± 1.2% of rdg ± 10 digits
- input impedance: 1Mohm
- frequency range: 40 to 400Hz
- maximum input: 600V
- DC current: 200µ/2m/20m/200m/10A
- basic accuracy: ± 1.0% of rdg ± 2 digits for 200µA
- 20mA range / ± 1.5% of rdg ± 2 digits for 0.2A range / ± 3.0% of rdg ± 2 digits for 10A range
- overload protection: F500mA/250V - 10A/250V
- AC current: -
- basic accuracy: -
- overload protection: -
- resistance: 200/2k/20k/200k/2M
- basic accuracy: ± 0.8% of rdg ± 2 digits for 200 ohms
- 200k range / ± 1.0% of rdg ± 2 digits for 2M range
- overload protection: 250VDC or rms AC on all ranges
Use this multimeter to measure DC current (up to 10A), AC and DC voltage (up to 600V), and resistance (up to 2Mohm). The digital display screen reads out to three and a half digits. Easily operate with auto-polarity for any direct current and voltage readings. Extra features with the DVM850BL include diode, transistor, and continuity testing with buzzer. The hold function will help you record and retain the most specific and accurate reads.
DMM comes with protection holster and important safety information. This multimeter really offers you all the features you need for hobbyist testing and readings to help in your DIYs and comes at an unbeatable price.
Product Dimensions (L x W x H): 224 x 165 x 33 MM
Product Weight: 2 LB
