- Digital meter measures inductance, capacitance, and resistance
- Measures dissipation factor
- Zero adjustment removes lead resistance
- Measures resistance down to 1 milliohm resolution for precise measurement of low resistances
- Display indicates when 5% battery life remains

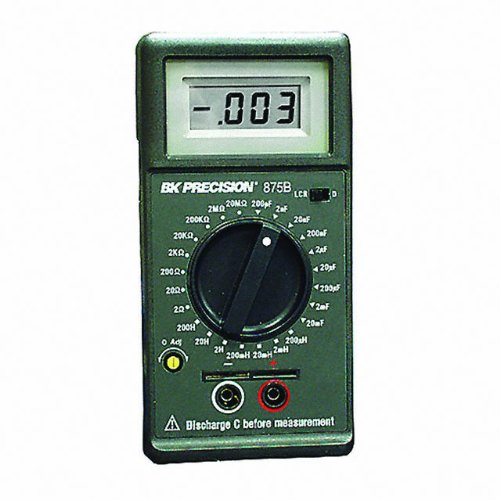

The B&K Precision 875B Low-Ohm LCR Meter is a digital meter that measures inductance from 200 microhenries to 200 henries, capacitance from 200 picofarads to 20 millifarads, and resistance from 2 ohms to 20 megaohms as well as dissipation factor between 0 and approximately 1.999. The meter allows for resistance measurements down to 1 milliohm of resolution allowing for precise measurement of very low resistances. It has a 3-1/2 digit LCD that indicates the last 5% of battery life and uses a 9V battery (not included). It has a drop-proof housing for protection and a tilt stand for hands-free viewing. The meter measures 6.97 x 3.46 x 1.57 inches/177 x 88 x 40 mm (H x W x D) and weighs 14 oz./400 g. (H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.)
Multimeters are electrical test meters that measure multiple properties of an electrical circuit, such as current, voltage, resistance, capacitance, and continuity. Available in handheld or benchtop models, multimeters diagnose electrical problems in electrical equipment, wiring, and power supplies. A variety of probes, clamps, and leads can be used to connect the meter to a circuit or device. Multimeters display information either in analog or digital form. Factors that influence meter choice include the electrical properties to be measured, the anticipated range of results, and the desired level of protection against transient voltage. Safety ratings are based on International Electrotechnical Commission (IEC) standards for low-voltage test equipment. IEC 61010 delineates four overvoltage installation categories. In general, a meter with a category IV rating will provide more protection against transient voltages than a meter with a lower category rating.
B&K Precision manufactures test and measurement instruments for research and development, production-lin
Product Dimensions (L x W x H): 191 x 119 x 58 MM
Product Weight: 0.57 LB
